Channel Balance

A quick learner from U.S.A. says:
Looking for help to replace this window balance.
Have not had any luck identifying it or locating parts.
Thumbnail of the uploaded file named channelone.jpeg
Thumbnail of the uploaded file named channeltwo.jpeg
Thumbnail of the uploaded file named channelthree.jpeg

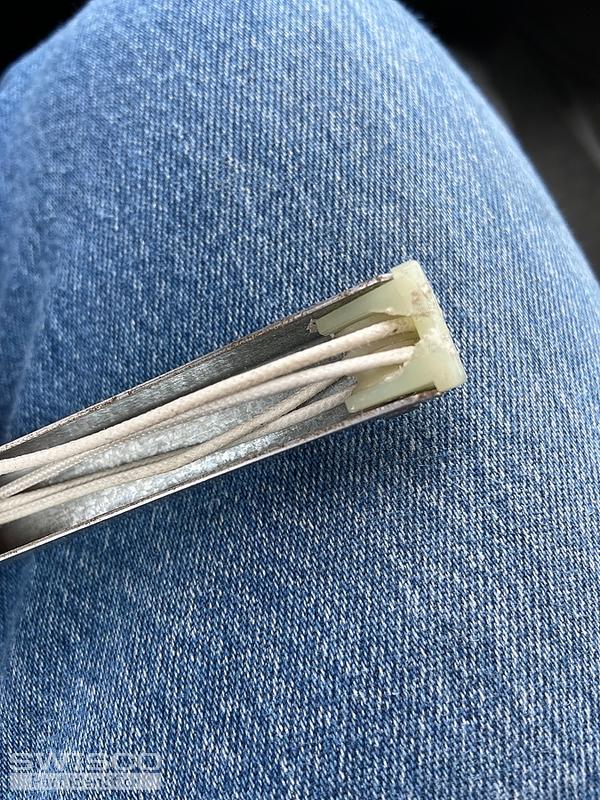

Thumbnail of the uploaded file named channelfour.JPG
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I'm going to have one of our senior experts take a look and see if they could recommend a replacement for your balances. We'll reach out as soon as more information is available. Thank you!

Profile picture of Paul
Paul from SWISCO responded:

I believe your bottom nylon fitting on the balance hooks onto a T-Lock pivot shoe like our 1-1/4" wide 15-195. If so, you can use the S795-27 with the 15-195 attachment. The spring weight will be (27E) for a sash weighing between 26-30 lbs. take a look and see what you think. Thanks for posting!
