Channel Balance

A home owner from NYC, NY says:

Hi Swisco Help,

I love your website and your YouTube how to videos!

I need to replace some channel balances.

Metal Length = 31-inches

Width = 1/2-inch (see picture)

Depth = 1/2-inch (see picture)

I have also attached pictures of the top and bottom.

Which model number is correct for me to purchase?

Based on reviewing a combination of the pictures I shared and the product options available on your website, I believe the correct replacement part is;

31" Series

351 Channel Balance

S351-31

PLEASE CONFIRM.

Luv,

-Kevin

Thumbnail of the uploaded file named 4755B585-EC47-4BA4-B774-9B2CEE804FAF.jpeg
Thumbnail of the uploaded file named B9305641-FE49-4BCB-B61A-3E3DC2B7F307.jpeg
Thumbnail of the uploaded file named D93D76F0-D412-4039-B380-5DB6A6DA378F.jpeg

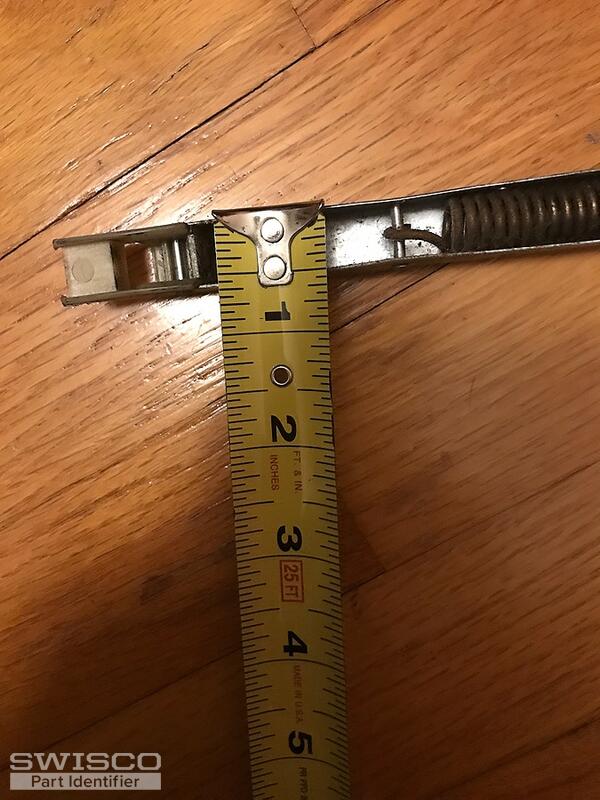

Thumbnail of the uploaded file named 7C3E51B1-A8FE-4E02-883F-3C8575151F6D.jpeg

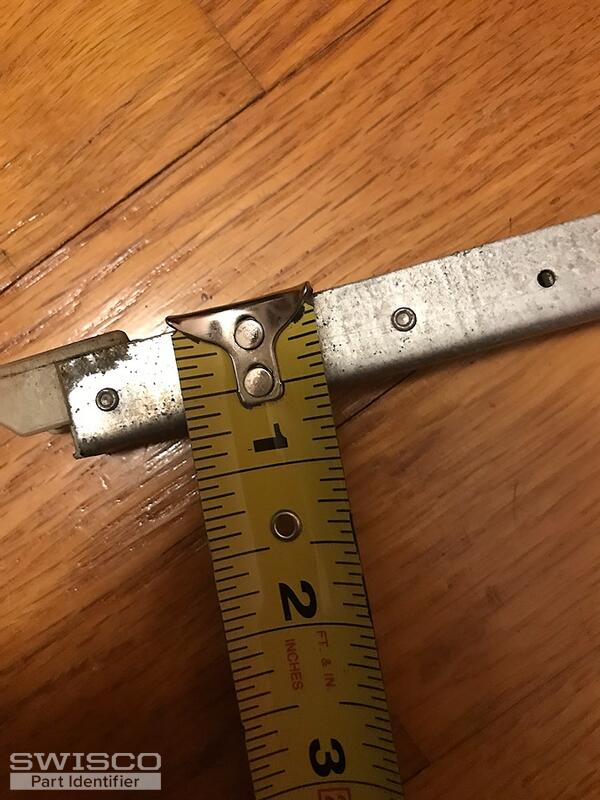

Thumbnail of the uploaded file named F535D771-A3C8-4AD5-8CB4-B22C209CAEE1.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like you have either our S351-31 , with a 15-002 bottom attachment, or S390-31 , with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 3030 spring strength option for your replacement balances. Thank you!


Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
