Channel Balance

A quick learner from USA says:
February 3, 2022
I called your company today asking for channel balance and sash parts, and I was told that the parts I am looking to replace are out of stock or are not in production anymore. However, when I called earlier, I was told by one of your employees that your company can provide similar replacements for these old parts if you know the measurements.

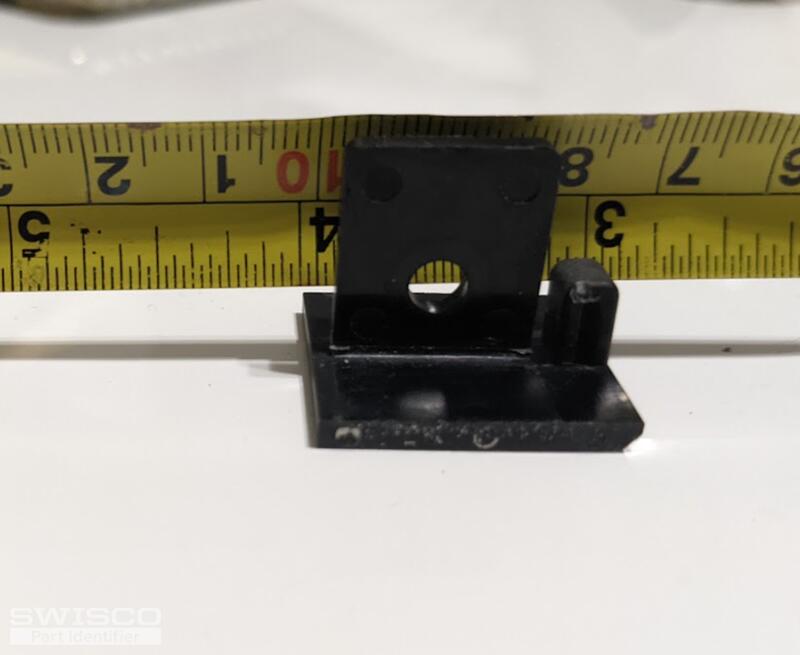

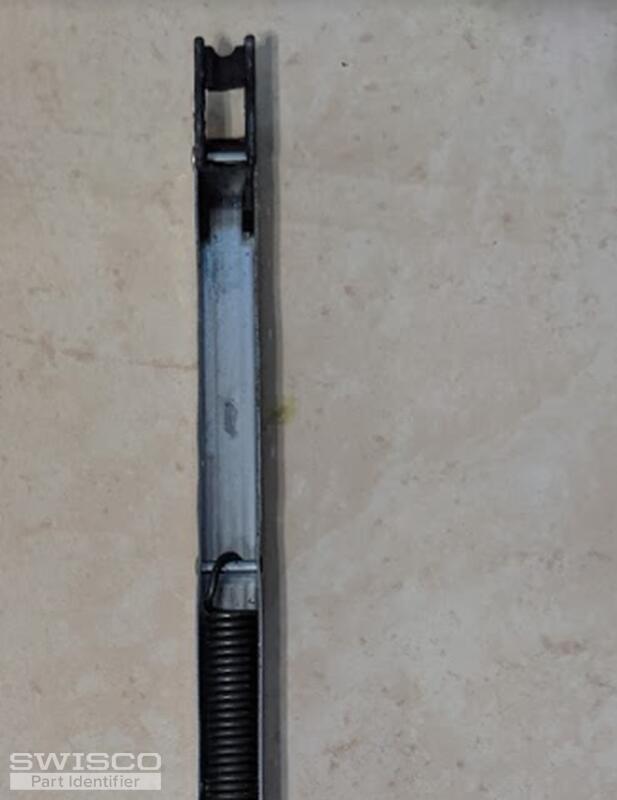

Thumbnail of the uploaded file named image.png
Thumbnail of the uploaded file named image.png
Thumbnail of the uploaded file named image.png
Thumbnail of the uploaded file named image.png
Thumbnail of the uploaded file named image.png
Profile picture of Bob
Bob from SWISCO responded:
February 3, 2022

Yes, I'm confident we can help. You have either a Series 351 or Series 390 Channel Balance. The difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. You'll need to measure the length of the metal channel, not including the nylon fittings, to determine the length needed. Let me know if you need help choosing the stamp option. Finally, for your Top Sash Guide, see if the 18-168 Yale Orgon guide matches what you have.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
A quick learner from USA says:
February 3, 2022
Thank you that was very helpful! I confirmed the S390 and other parts are a good match. I'll be ordering the items from you all soon.
A home owner from USA says:
February 5, 2022
Hey Bob thank you for the instruction that you send me. Accorded to that i need sash #18-168 and the channel balance the metal measure 30" and the nylon shoe is the series 390. I need to order 10 channel balance and 10 sash, to start fixing my windows. Please send me the order to pay for.Thank you.
Profile picture of Bob
Bob from SWISCO responded:
February 7, 2022

That's great! I'm glad to hear this hardware matches.

These are stock parts, so you can place an order for them directly on our site at your convenience.
