Channel Balance

A home owner from Glen Ellen, CA, USA says:
Hi. the string broke on my channel balance for my kitchen window. The metal part of the channel balance is 15" in height. Which part should I order. Thank you, Ginny :]

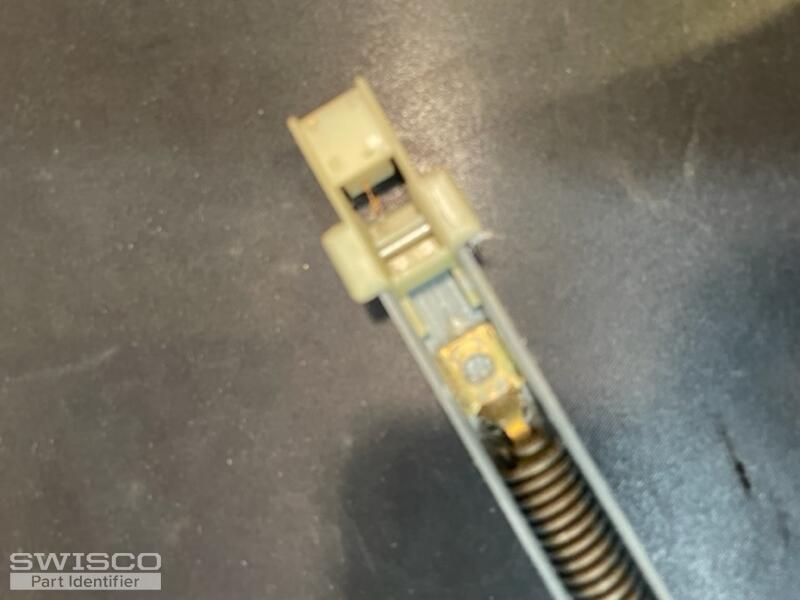

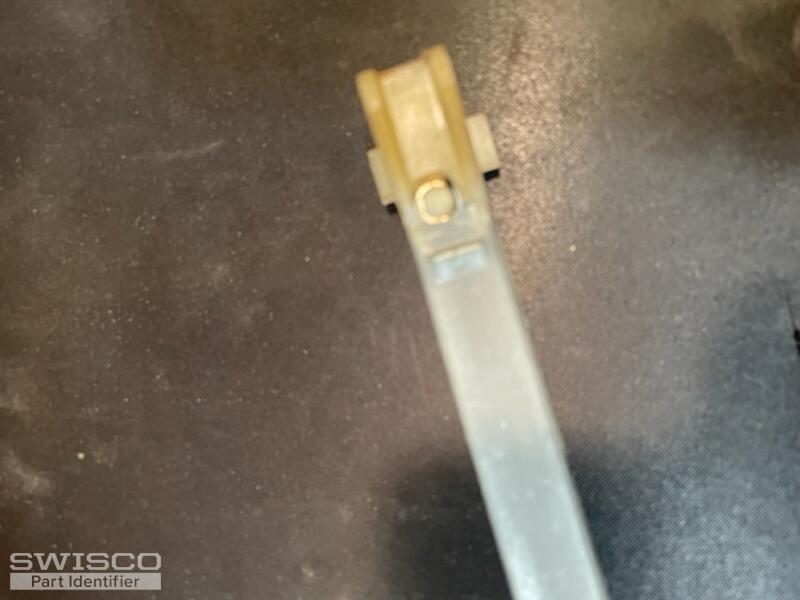

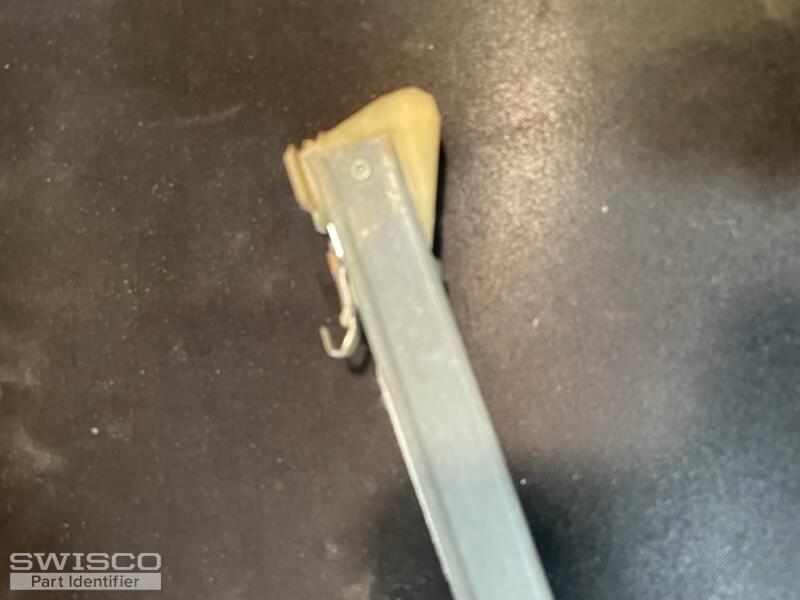

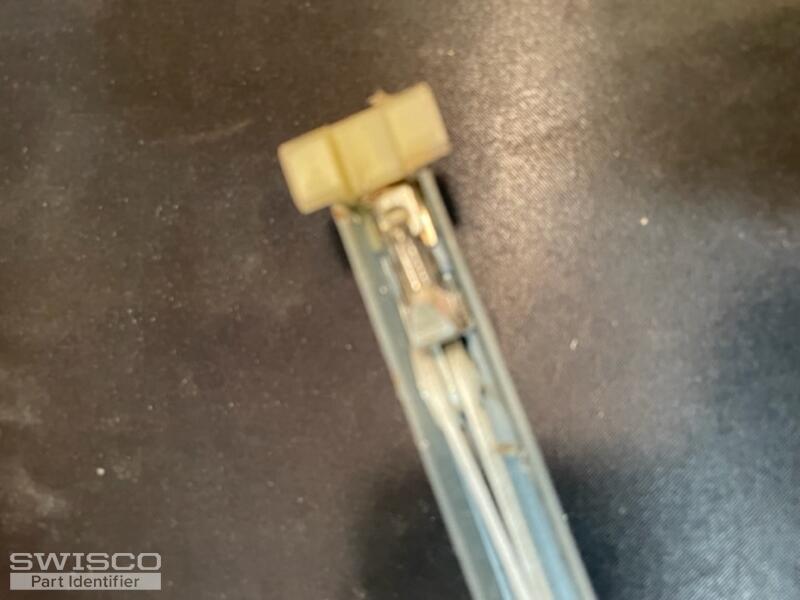

Thumbnail of the uploaded file named IMG_8013.jpg
Thumbnail of the uploaded file named IMG_8015.jpg
Thumbnail of the uploaded file named IMG_8016.jpg
Thumbnail of the uploaded file named IMG_8017.jpg
Thumbnail of the uploaded file named IMG_8020.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi, Ginny!

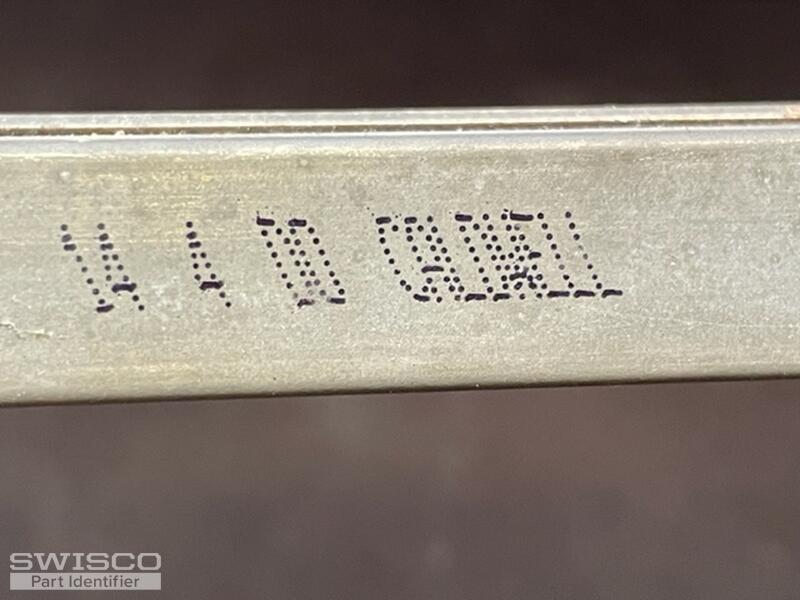

You'd want either our S380-15 or S385-15 channel balance, depending on the size of the bottom shoe. Our Series 380 has a 1" deep shoe, while the Series 385 has a 1-3/32" deep shoe. You'll need to measure as shown in the picture below to see which one matches best. You will also need the 1440 strength option, based on your 14 4 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
