Channel Balance

A quick learner from 85262 says:

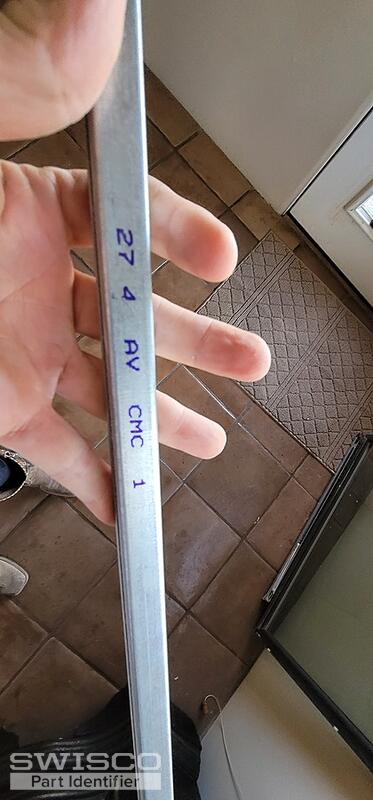

I need to replace a channel balance with markings: 27 4 AV CMC 1. Thank you.

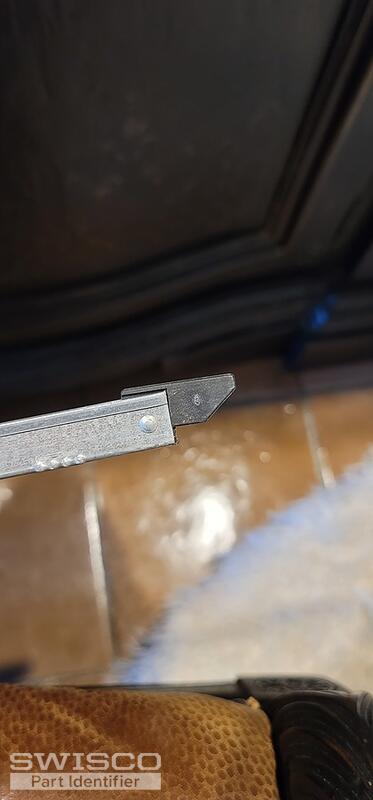

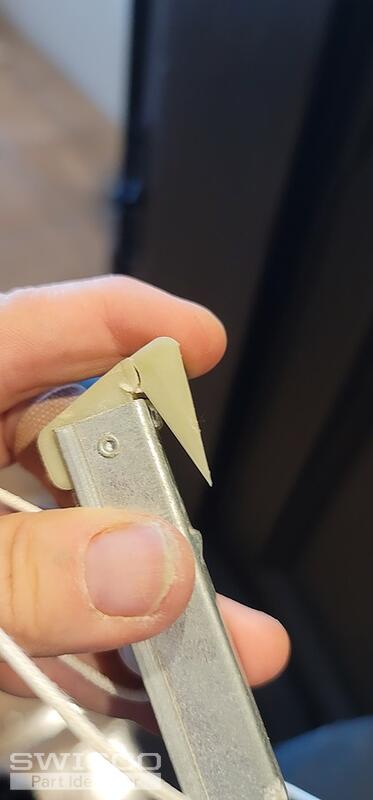

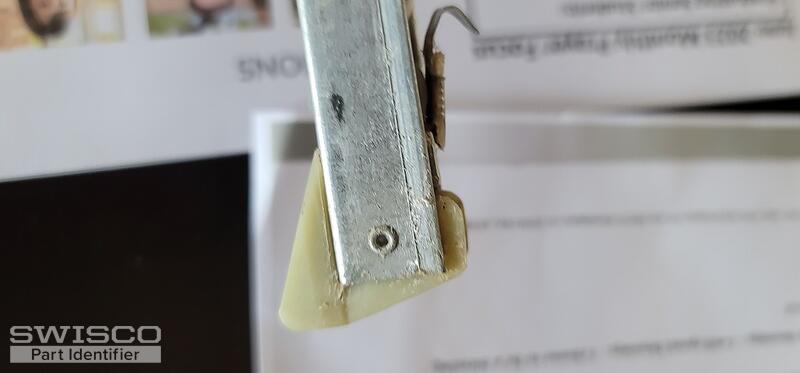

Thumbnail of the uploaded file named 20230531_165646.jpg
Thumbnail of the uploaded file named 20230531_185341.jpg
Thumbnail of the uploaded file named 20230531_165646.jpg
Thumbnail of the uploaded file named 20230531_165723.jpg
Thumbnail of the uploaded file named 20230531_185421.jpg
Profile picture of Lauren
Lauren from SWISCO responded:

Hello, thank you for posting,

It appears you have either our Series 351, with a 15-002 bottom attachment, or Series 390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. The length of the metal channel excluding the nylon attachments should measure 28" long and you will need a 2740 stamp option.

Please review and let me know if you have any additional questions!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
