Channel Balance
Quick Learner from Freeland, WA
Sep 20, 2023 1:11 pm

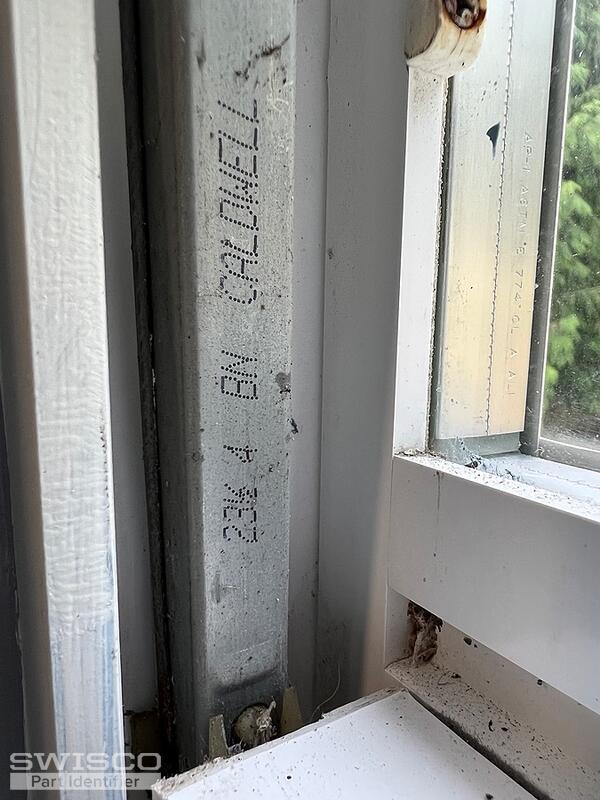

Need to order a pair of replacement 23 1/2 4 BN CALDWELL Channel Balance
5 user uploaded images
4 Replies
Casey from SWISCO
Sep 20, 2023 4:05 pm

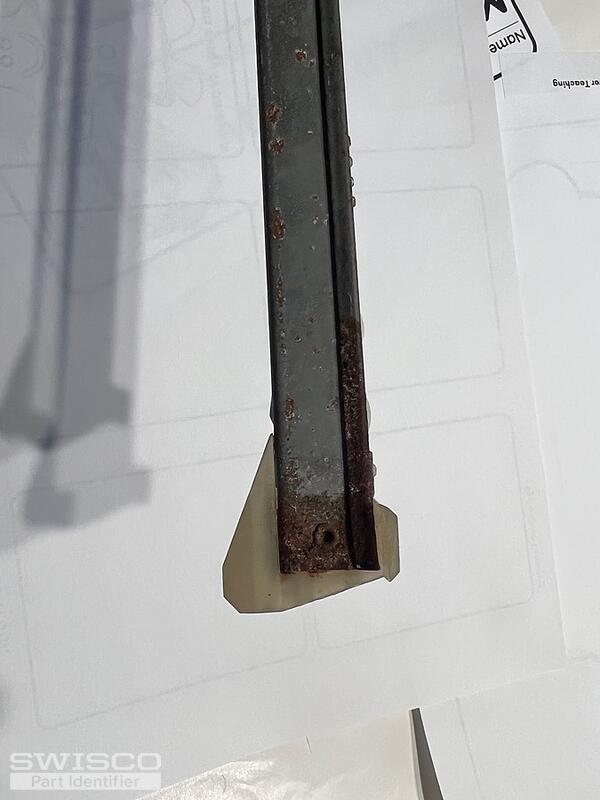

With this combination of attachments, you could have either the S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
We'll also need to confirm the exact length of your metal channel, not including the end fittings. Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Freeland, WA
Sep 20, 2023 6:40 pm
The bottom attachment measurement is 1" so a Series 380 and the exact length of your metal channel, not including the end fittings, is 24 1/2".
Casey from SWISCO
Sep 21, 2023 10:51 am
Great, we just sent over a purchase link and price quote for you to review, which will need to be custom-ordered due to the length and stamp code. Take a look and let us know if you need anything else.
