Channel Balance

Quick Learner from Florida

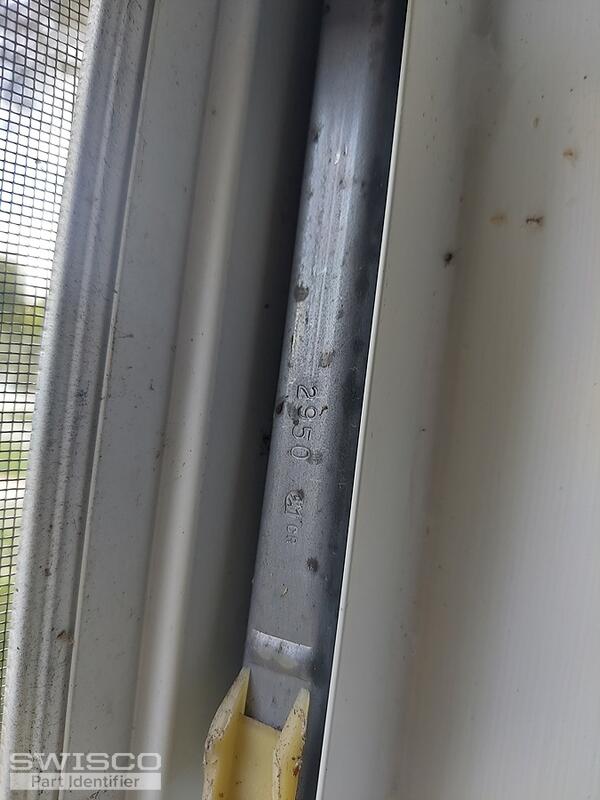

Please help me identify the channel balance from your catalog:
1. #2830 CT - 29 inches
2. #2320 CK - 24 inches
3. #3650 CP - 37 inches
4. #2950 CR - 30 inches

Thank you.
4 user uploaded images
6 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. I'm confident we can help, but those stamps don't tell us the identity of your channel balances, but rather just their strength. We'll need to see clear pictures of the attachments on both ends of the metal channel to identify what you need. Because the details on these attachments are important, it would be best to remove the balance to document both fittings. We'll do our best to assist you from there.

Quick Learner from Florida

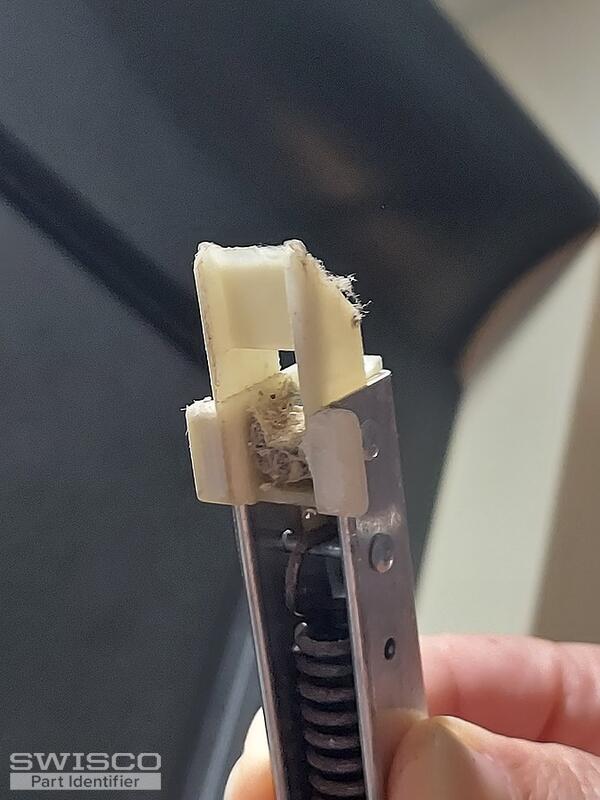

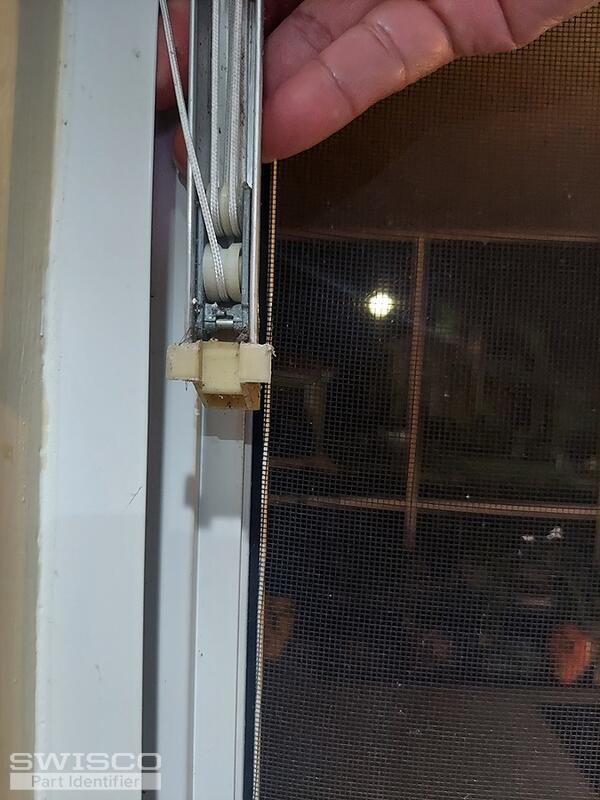

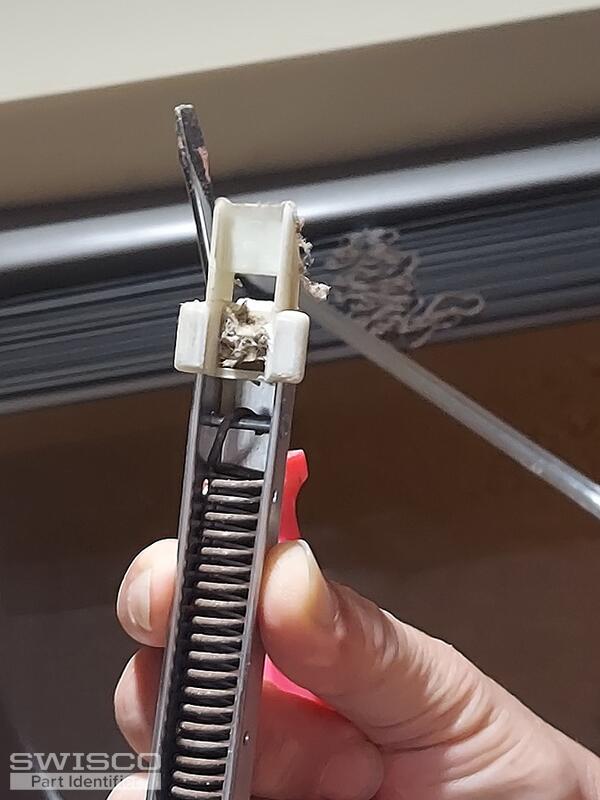

Please let me know if the picture is clear enough to identify. Thanks.
3 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

These are perfect, thanks! Based on what I see here, you have either our Series 380 or Series 385, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Florida
Awesome. Thank you very much!
Bob
Bob from SWISCO
SWISCO
Expert

You're welcome! Best of luck on the rest of your project and please feel free to reach out if we can be of any further assistance.
