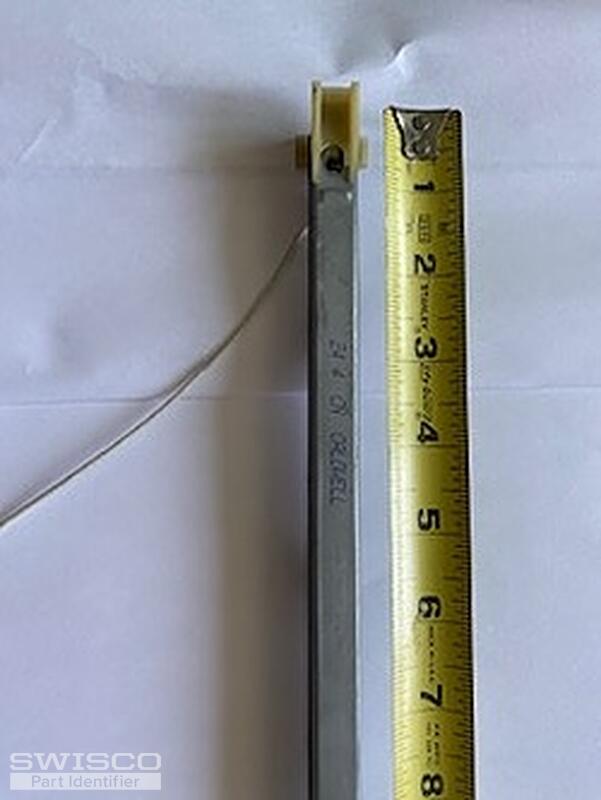

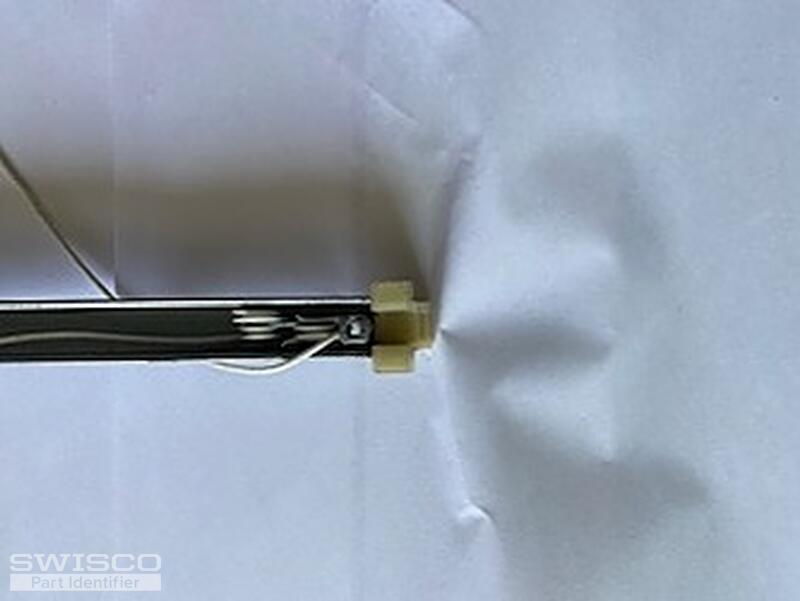

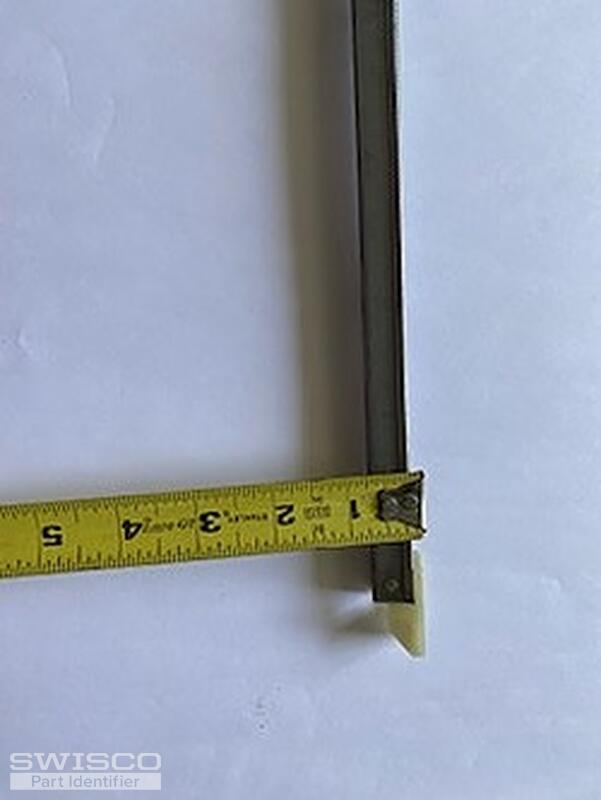

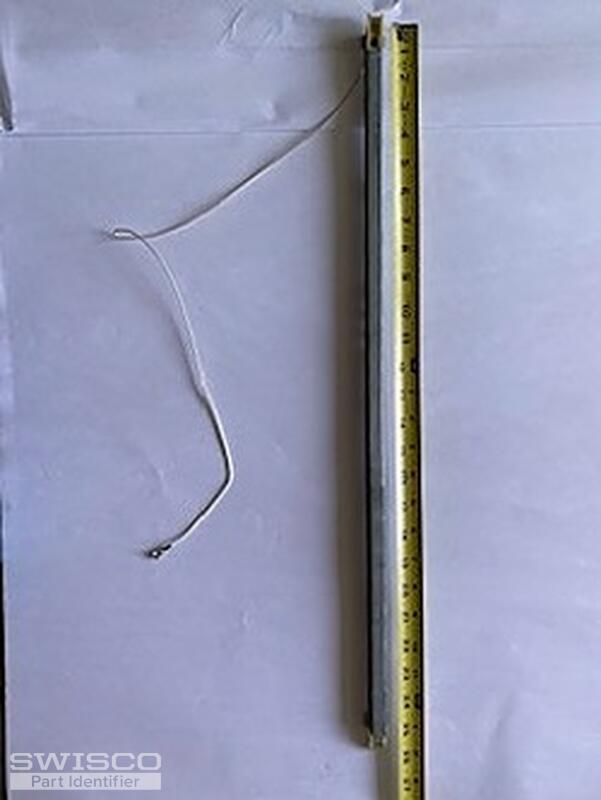

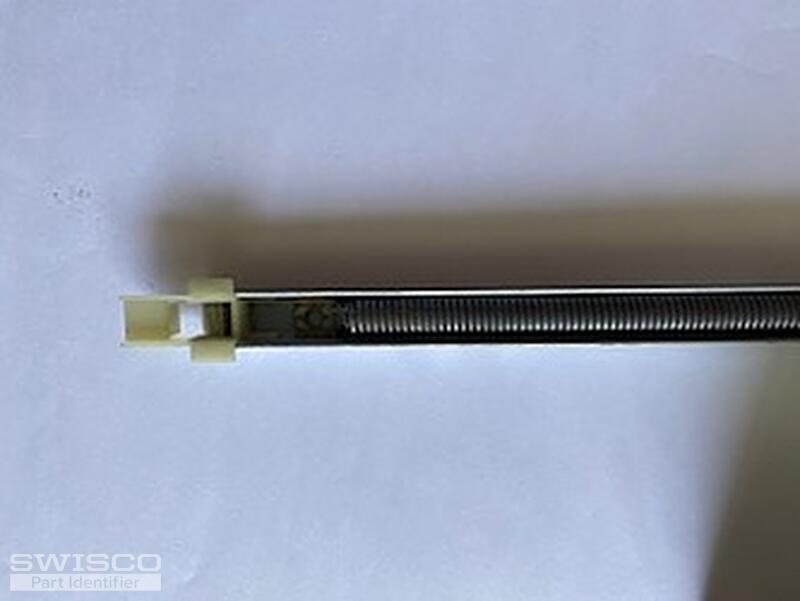

Which channel balance do I need to order to replace the broken one? The marking on it is 24 4 CN CALDWELL

5 user uploaded images

5 Replies

Emily from SWISCO

Jul 26, 2024 11:31 am

Hi there!

Thanks for reaching out to us. We can help with this. Before I recommend anything, can you also show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel.

Quick Learner from 92011-4872

Jul 26, 2024 12:08 pm

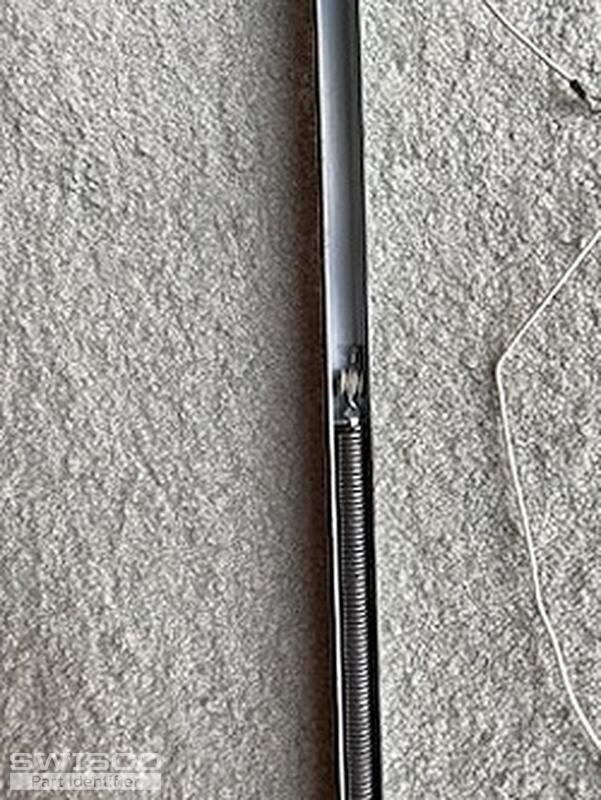

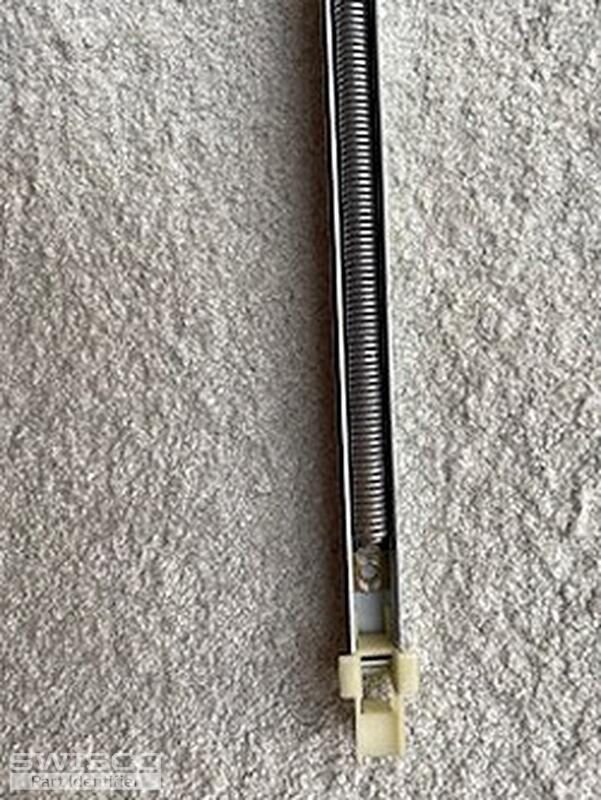

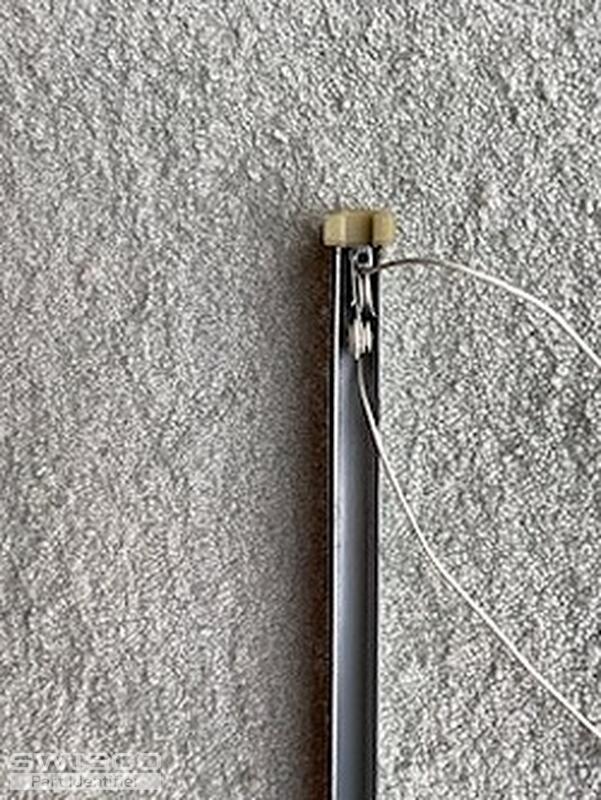

Emily, I've attached the photos you requested.

3 user uploaded images

Emily from SWISCO

Jul 26, 2024 3:00 pm

Thank you kindly! Based on your photos, you can use the S380-25 or S385-25 with the 2440 stamp option. The best match will depend on the depth of the bottom shoe so you must measure as shown below.

Let us know if you have any questions!

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from 92011-4872

Jul 26, 2024 3:33 pm

Looks like it's S385-25 with the 2440 option.

Thank you.
