Channel Balance

Home Owner from 92563

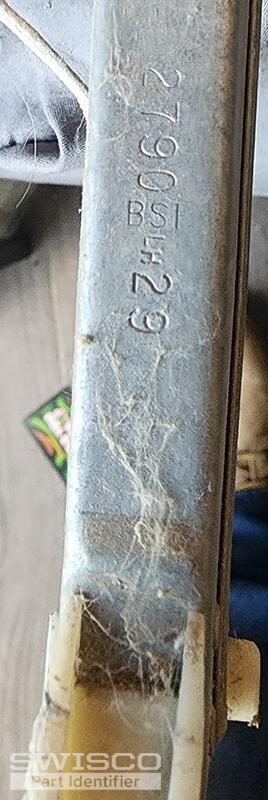

2790 bsi 29 is what's stamped on it.

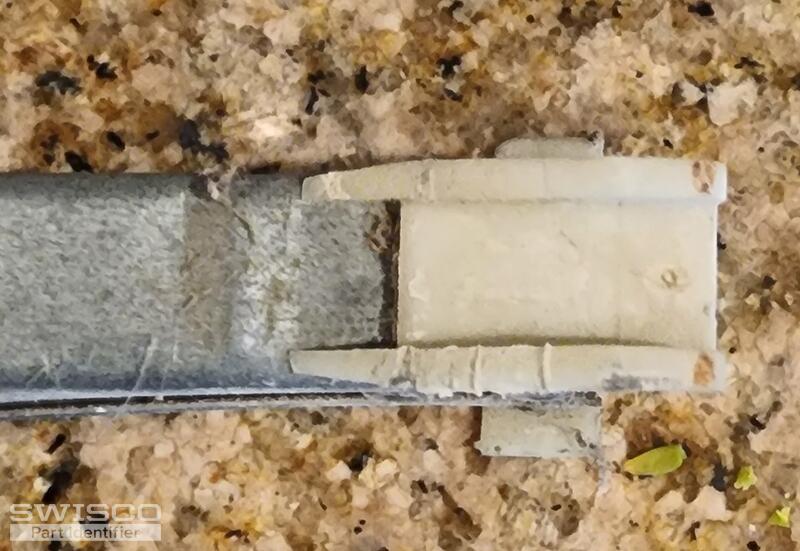

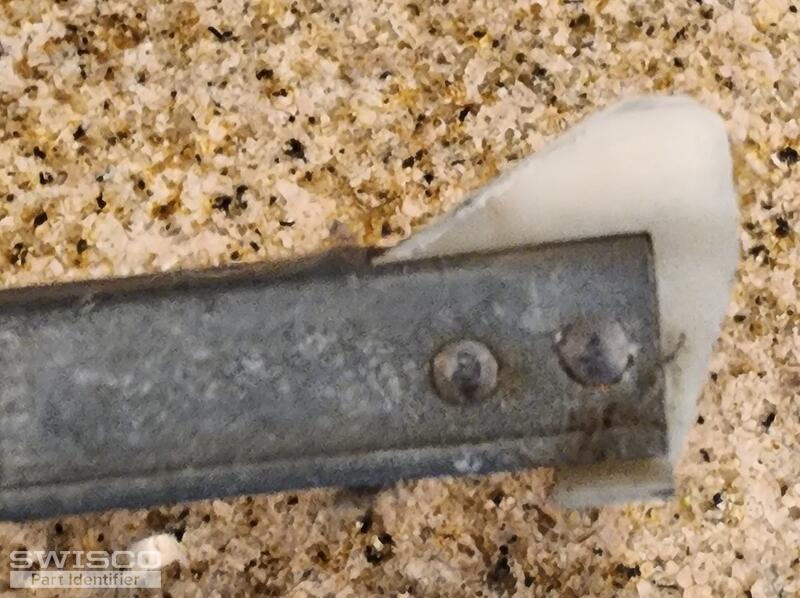

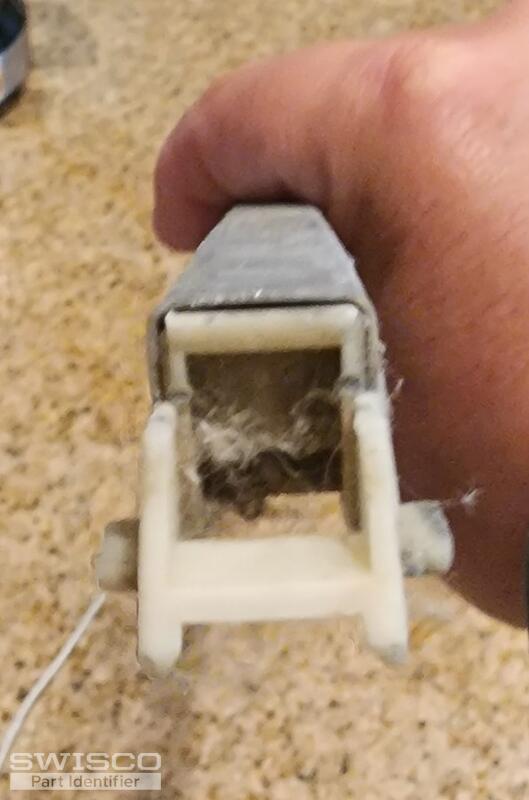

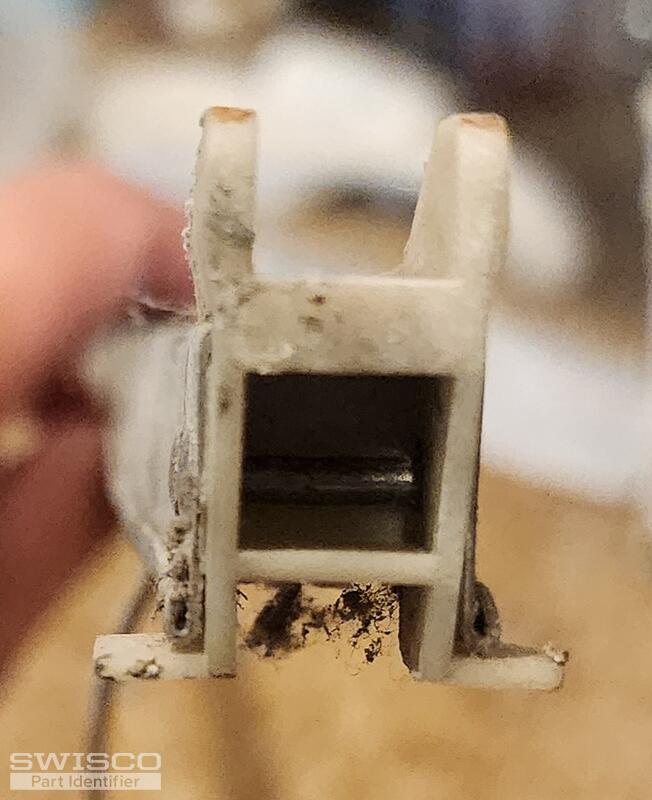

5 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The length of the metal channel excluding the nylon attachments should measure 28" long. The stamp is an older rating that does not directly translate. To move forward, you will need to weigh the window sash. From there, compare the weight to the strength chart on the product page to choose the correct stamp option. Let us know what you think and if you have any additional questions!

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
