Channel Balance

Home Owner from Laguna Niguel, California 92677

Sep 15, 2024 6:18 pm

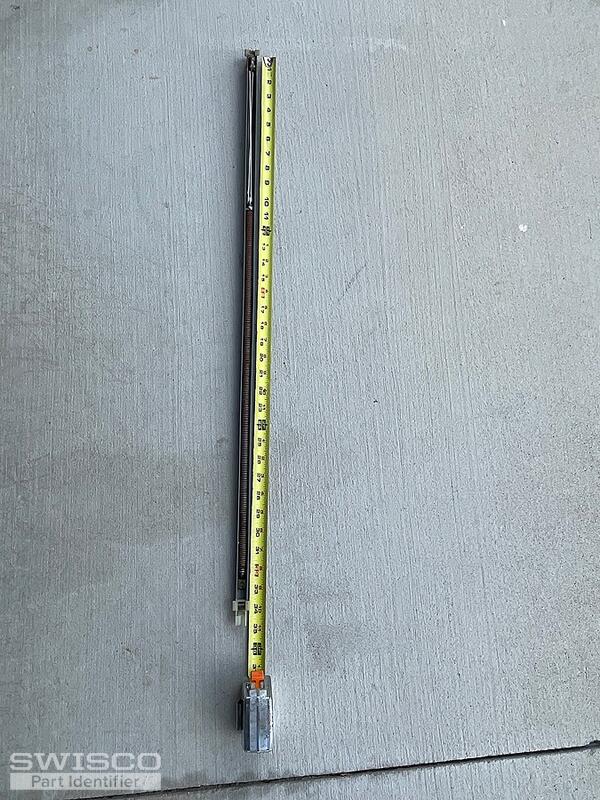

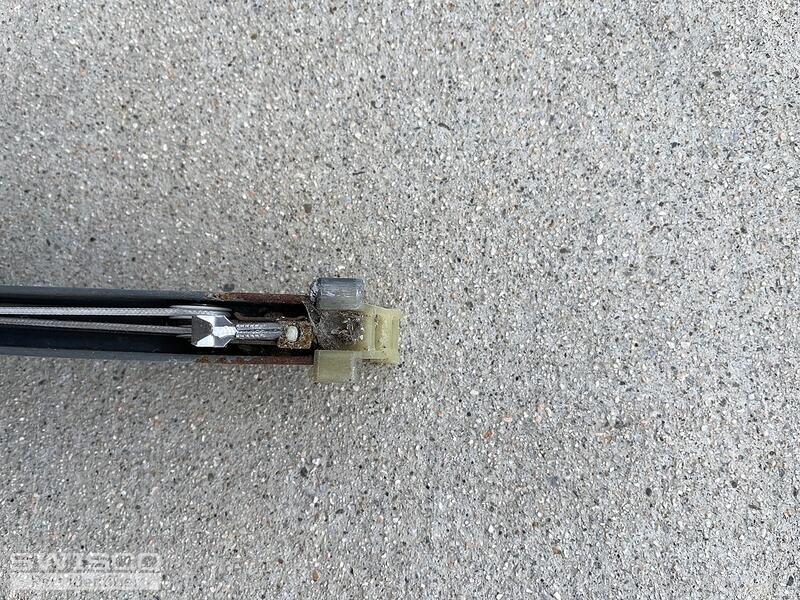

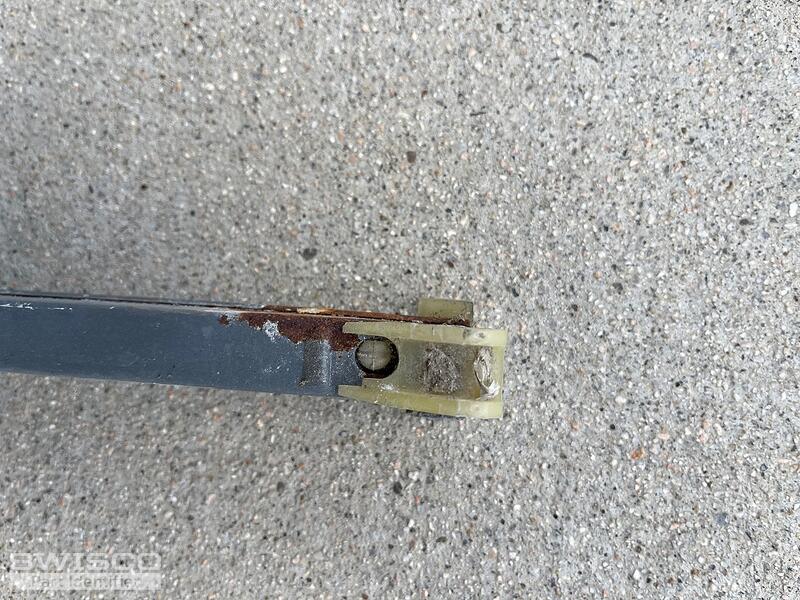

Need to find a channel balance replacement part for my window. it's 34" in length and 9/16" (approximately 1/2"). I took out the other side of the channel balance and found some marking on it. 33?3 AP CALDWELL. Hope this help. Here's some new photos.. Need you help to identify the parts.

5 user uploaded images

3 Replies

+ Add a Comment

Jasmine from SWISCO

Sep 19, 2024 2:48 pm

EXPERT

Hey there,

Thanks for your inquiry! I am confident we can provide you with a replacement recommendation for the balance you have. Although, I will need to see a photo of the pulley system, in the center of the balance, where the spring and the string meet in the middle. This detail is important to see so that we can ensure we are providing you with the correct replacements.

Please feel free to reach out with any questions you might have.

Home Owner from Laguna Niguel, California 92677

Sep 20, 2024 12:11 pm

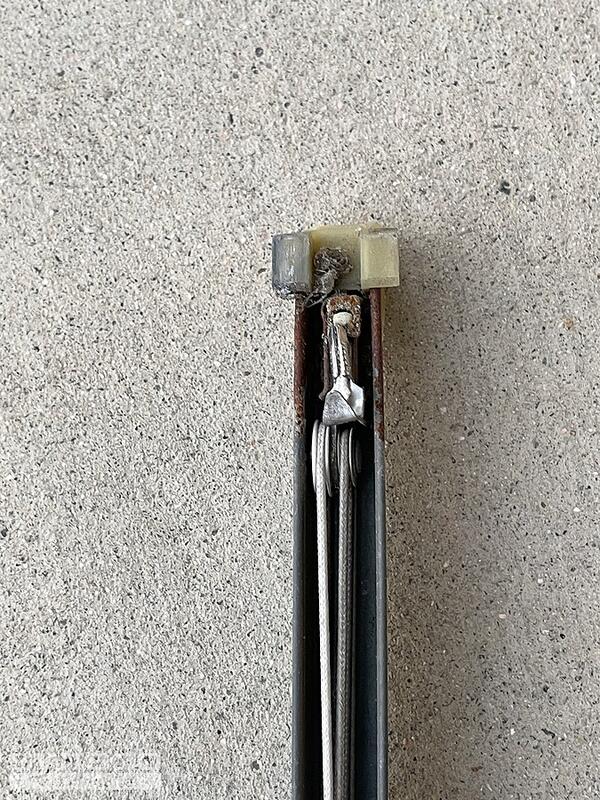

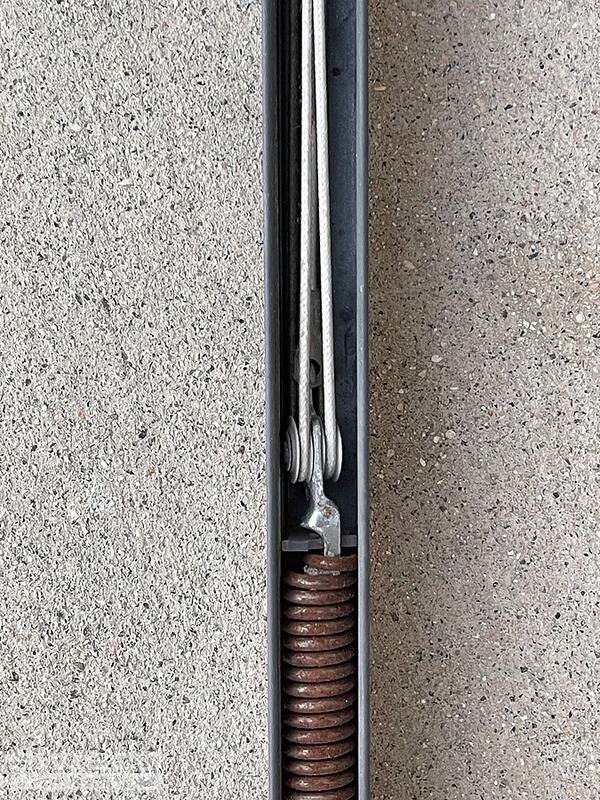

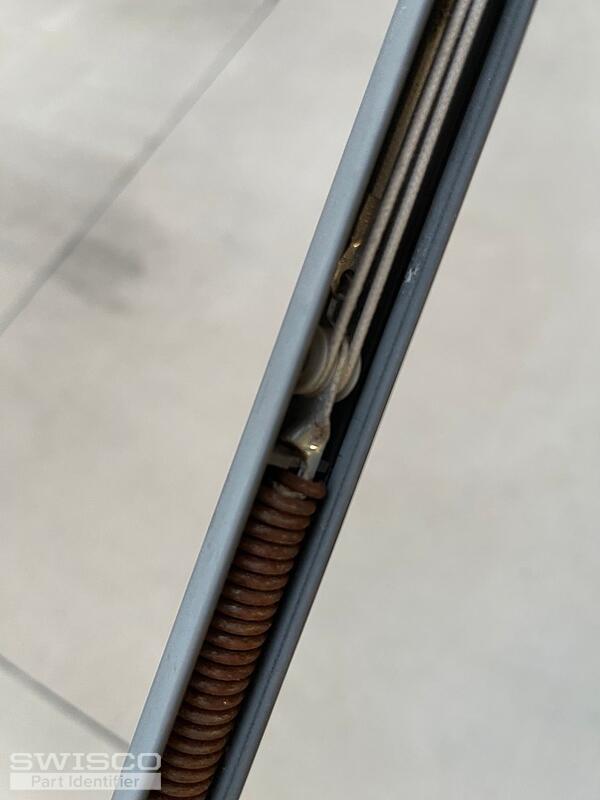

I uploaded more photos but somehow they did not show up. Here are more photos, including the on the middle part of the balance, where sping and thread meet.

4 user uploaded images

Jasmine from SWISCO

Sep 20, 2024 2:47 pm

EXPERT

Your balances can be replaced with either the S380-34 or the S385-34. You'll need to confirm the depth of your bottom shoe to determine which of these is the right replacement.

You can select the 3330 stamp option.
