Channel Balance

Start a new Discussion

Home Owner from Anaheim CA 92808

Sep 3, 2025 8:20 pm

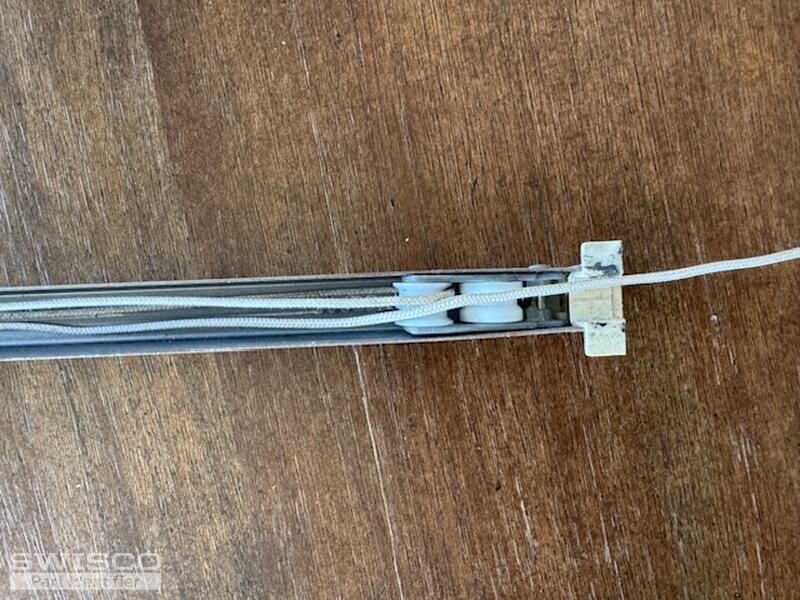

Size: 1/2 " X 25"

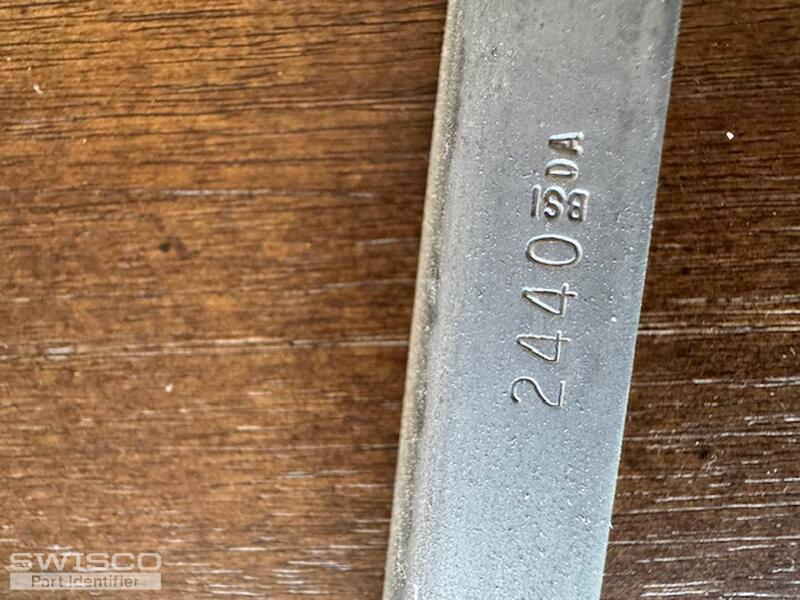

I found 2440 BSI DA on one side of the channel balance.

5 user uploaded images

4 Replies

Jasmine from SWISCO

Sep 9, 2025 11:00 am

Thanks for posting! This window balance reminds me of either the S380-25 or the S385-25. You'll need to measure the depth of your shoe to determine the correct replacement.

Our 2440 stamp will support a sash weighing 19 to 24lbs.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Anaheim CA 92808

Sep 9, 2025 12:56 pm

Thank you,
it is 3/32" or S385. Do they come with installation instructions?

Jasmine from SWISCO

Sep 9, 2025 2:41 pm

Okay, great! You can place the order for them when you are ready. The balances do not come with installation instructions but we do have an installation video. Please see below.
