Channel Balance Assistance

A home owner from Las Vegas, NV says:
Hello.

I need some channel replacement parts for Atrium windows non tilting.

Please see attached photos and advise as to which parts to order for correct fitting. I thank you in advance.

Tyler
Thumbnail of the uploaded file named 1.JPG
Thumbnail of the uploaded file named 2.JPG
Thumbnail of the uploaded file named 4.JPG

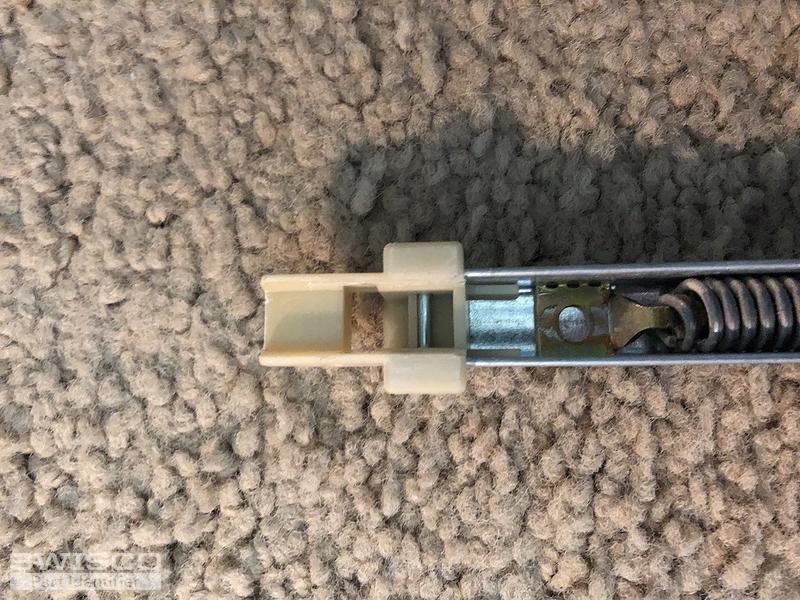

Thumbnail of the uploaded file named IMG_1384.JPG

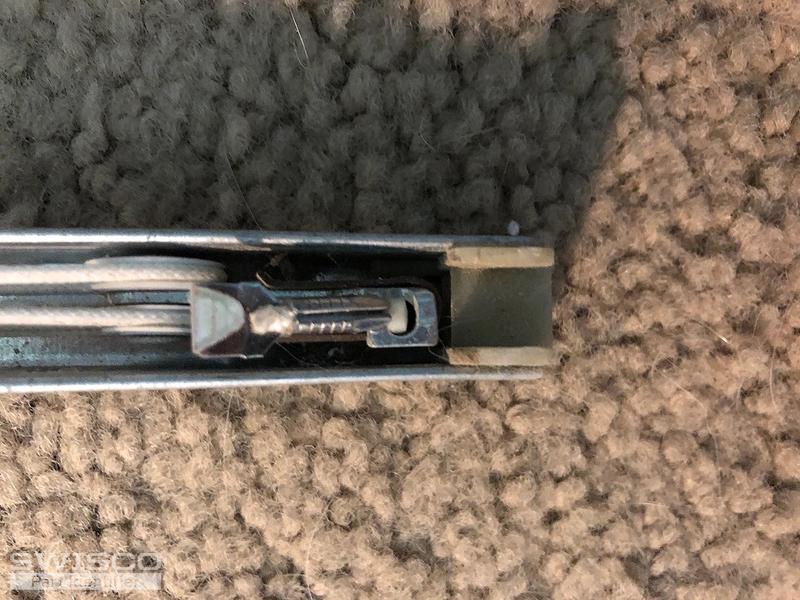

Thumbnail of the uploaded file named IMG_1385.JPG
Profile picture of Bob
Bob from SWISCO responded:

Hi Tyler. Do both sets of balances, the ones stamped 22-3 and 28-3 respectively, have the same nylon fittings on either end? If so, see our S395-23 and S395-29. Confirm that the lengths match what you have. For the 23" balances, you'd need a stamp option of 2230, and for the 29" balanes, a stamp option of 2830.

Profile picture of Bob
Bob from SWISCO responded:

Hey Tyler. If it's a 26" long metal channel and has the same nylon fittings as the other balances, then yes, the S395-26 sounds right to me. As far as the stamp code goes, does it have a 2530 (or 25-3) stamp on the metal channel? If so, then yes, that would be the correct the stamp option. If it doesn't have one, or you are uncertain, get the exact weight of the window sash. You can then match that exact weight with one of the weight ranges listed alongside each stamp option on the product page.

A home owner from Las Vegas, NV says:
Thanks Bob,
Yes, all the nylon fittings are the same so I think we are good. I appreciate your help and I will place my order shortly. One final question... I have one other 26" channel same as the others. Can I assume to order S395-26 with a 2530 stamp? Thanks again.
