Channel Balance Help

A home owner from California says:
March 14, 2019
Need 4 of these. part number please to order. Thank you.
Thumbnail of the uploaded file named Window sash1.jpg
Thumbnail of the uploaded file named window sash 5.jpg
Thumbnail of the uploaded file named window sash 6.jpg

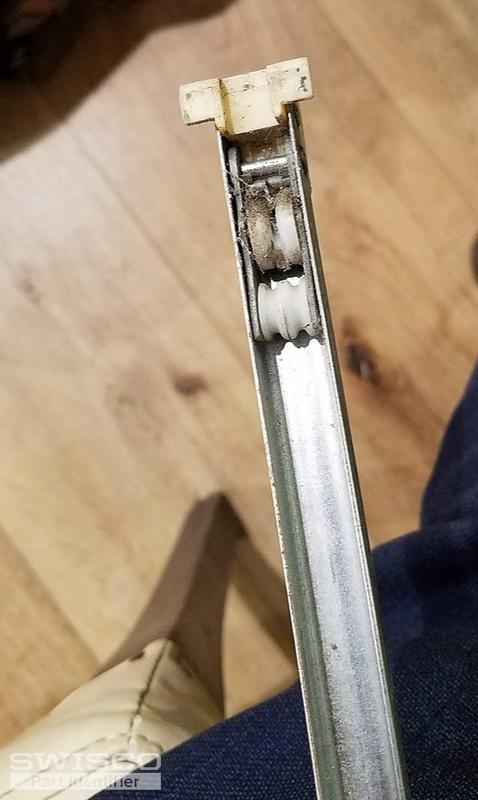

Thumbnail of the uploaded file named window sash 4.jpg

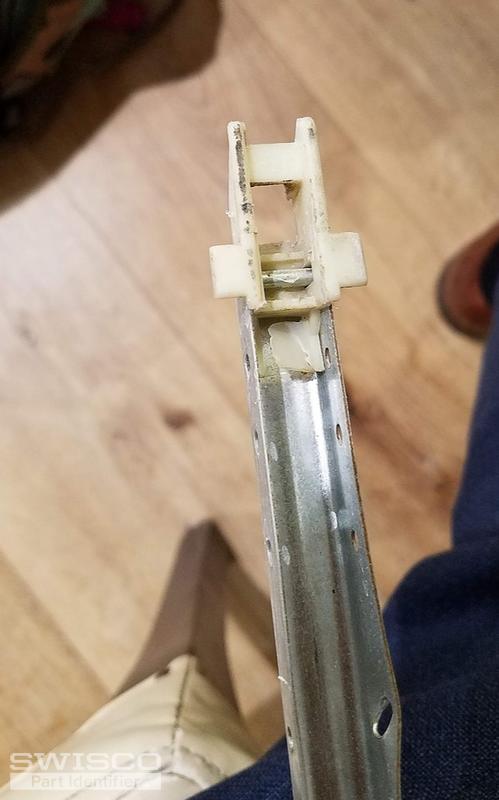

Thumbnail of the uploaded file named window sash 2.jpg
Profile picture of Bob
Bob from SWISCO responded:
March 15, 2019

Thanks for posting. Please confirm that your metal channel, not including the nylon attachments at either end, is 30". If so, please see either our S380-30 or S385-30. The only difference between these two balances is the 'depth' of the bottom nylon shoe. With the Series 380 the depth of this nylon shoe is 1", whereas with the Series 385 it is 1-3/32". Compare with your own and see what is best.

Once you know what balance to select, you'll need to choose a stamp option. Your stamp of 29C conforms to our stamp option of 2930, for a window sash in the weight range of 16 through 23 lbs.
30" Series 385 Channel Balance
30" Series 385 Channel Balance
S385-30
$11.30
27" Series 395 Channel Balance
27" Series 395 Channel Balance
S395-27
$10.23
