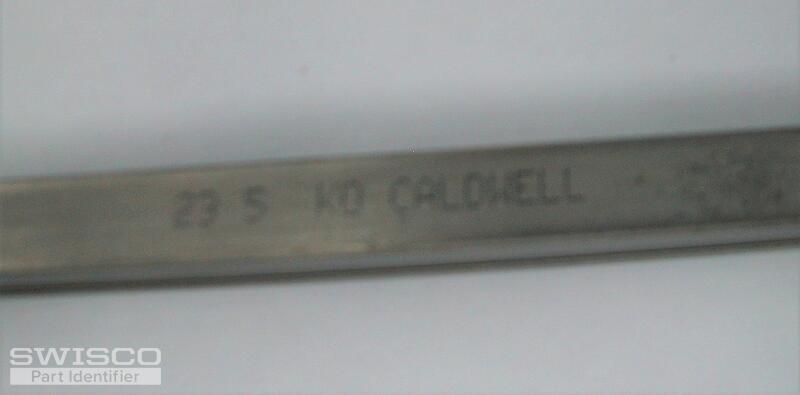

I have a broken channel balance with the side stamped with " 23 5 KO Caldwell".

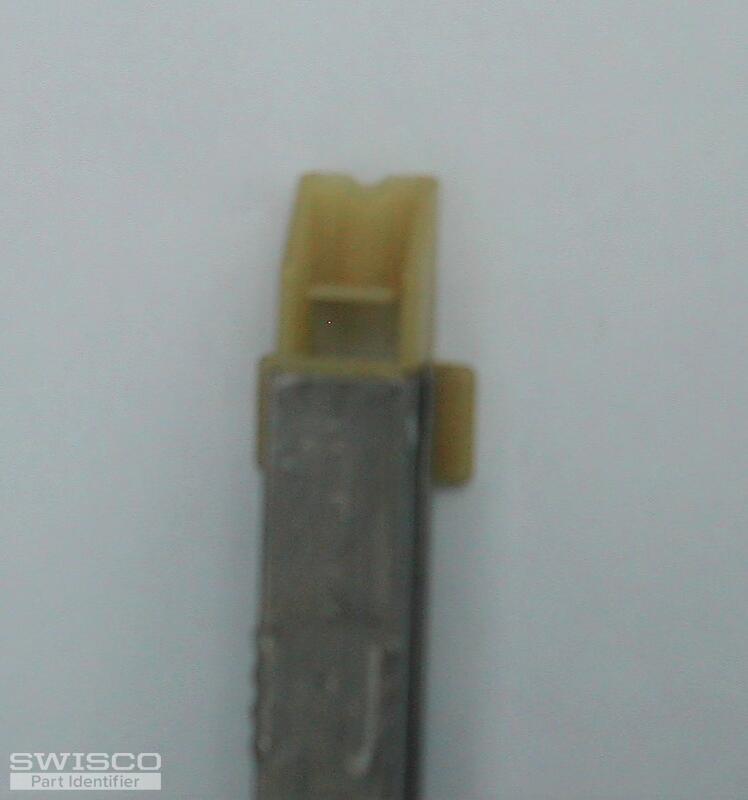

The total length of the part, including the end plastic clips, is 25". The metal part alone measures slightly less than 24".
Can I order this part?
Channel Balance ID
Handy Person from Dallas Texas
Feb 5, 2019 12:12 pm
5 user uploaded images
2 Replies
Bob from SWISCO
Feb 5, 2019 2:30 pm
Thanks for posting. See our S380-24 or S385-24 Channel Balances. The only difference between these two Series is the 'depth' of the bottom nylon shoe. With the Series 380 the depth of this nylon shoe is 1", whereas with the Series 385 it is 1-3/32". Compare with your own and see what is best.
Once you know which balance to select, you must also choose a stamp option. Your stamped number of 23 5 conforms to our stamp option of 2350, which is for a window sash weight range of 23 through 27 lbs. Let us know if you have any questions.
