Channel Balance ID & Quote Request

Home Owner from USA

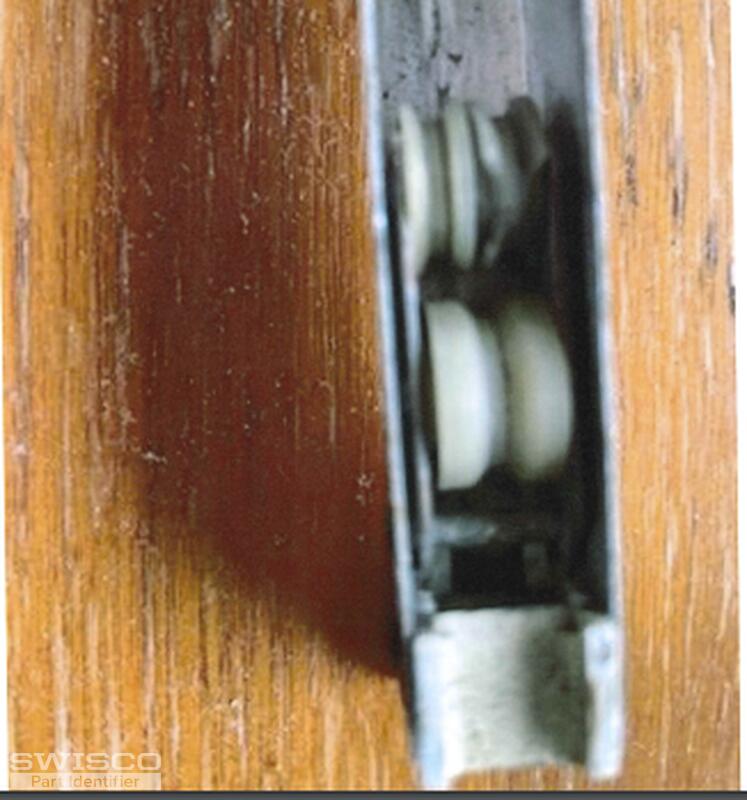

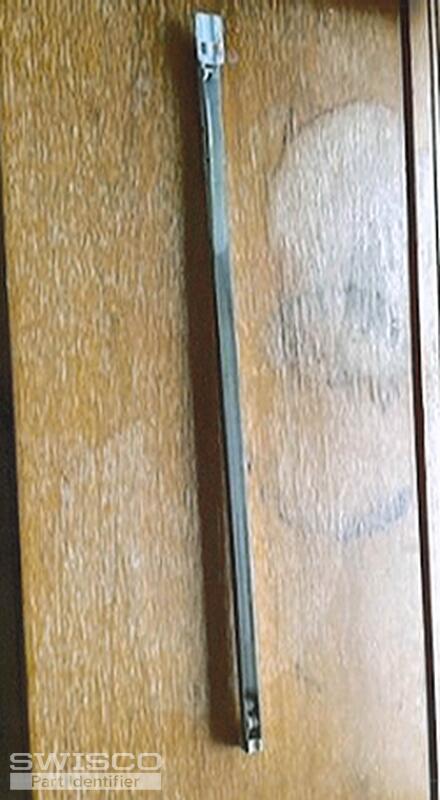

The calibration # is 2310. I have attached numerous photos for your review. I will need 2 pairs as replacements. Look forward to hearing from you.
5 user uploaded images
10 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello!

It looks like your balance uses the 19-010 top fitting which tells me this will have to be a custom order. Before we go any further, I'll need you to confirm the depth of your bottom shoe by measuring as shown below. Let me know which one matches best and we can go from there.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
Home Owner from USA
I measured she; as you can see it may be a tad les than 1 inch
Emily
Emily from SWISCO
SWISCO
Expert

I'm afraid we don't have a non-winged shoe in this size. Our 15-029 is 7/8" deep but this has wings. I'm wondering if your shoe had wings at one point but broke off. Worst case scenario, you can cut the wings off of the 15-029 or you can shave down the 15-002 to the size you need. It's also possible you have the 15-002 to begin with and it's just too damaged. You can always check an identical window's balance to confirm.

Let me know if this makes sense and how you'd like to proceed!

Home Owner from USA
Emily: received your inquiry regarding the proper channel balance shoe size; my guys measured at it; the 1" depth shoe fits.
Emily
Emily from SWISCO
SWISCO
Expert

Sounds good. I have all the details I need on my end so I'm going to email you a purchase link and price quote for (4) 24" long balances with the 19-010 top, 15-002 1" deep bottom and 2310 stamp that you can use to place an order on our website. Let me know if you have any questions!

Home Owner from USA
the 1 inch shoe 15-002 seems the best fit; I need 2 pairs........how do we proceed?
Emily
Emily from SWISCO
SWISCO
Expert

We emailed you a purchase link for 4 balances on the 6th of this month. I'd be happy to send you another one but I recommend checking your spam/junk folder first.

Home Owner from USA
please resend purchase link; cannot find 6/6/email.thanks
Emily
Emily from SWISCO
SWISCO
Expert

Certainly. I'll send that over right now.
