Channel Balance Help

A quick learner says:
November 11, 2021

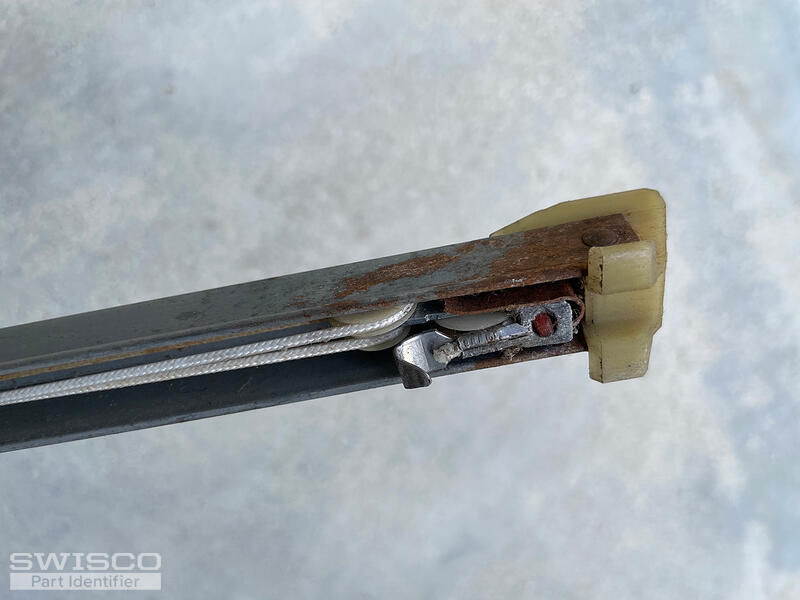

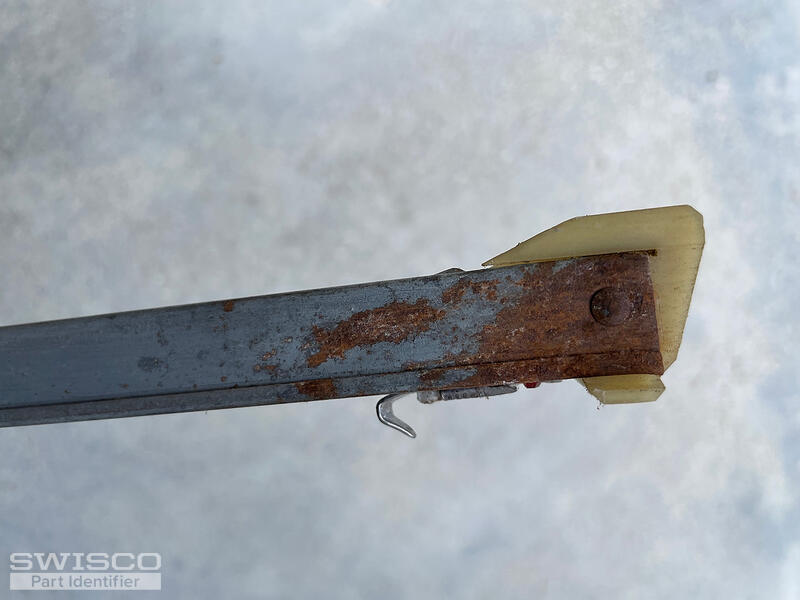

Hello again, this is PART 2 of my photo upload. The metal Channel measures 34 inches. This measurement is steel channel only and does not include plastic tips. Thanks so much! Oliver Bewsey
Thumbnail of the uploaded file named Channel Balance_bottom shoe_5.jpg
Thumbnail of the uploaded file named Channel Balance_bottom shoe_4.jpg
Thumbnail of the uploaded file named Channel Balance_bottom shoe_3.jpg
Thumbnail of the uploaded file named Channel Balance_bottom shoe_2.jpg
Thumbnail of the uploaded file named Channel Balance_bottom shoe_1.jpg
Profile picture of Bob
Bob from SWISCO responded:
November 15, 2021

Hi Oliver. See our S380-34 or S385-34. The only difference between these two balances is the depth of the bottom nylon shoe, or the heel-to-toe measurement as seen below. Compare both with your old hardware to see what matches best. For a stamp choose 3330.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner says:
November 17, 2021

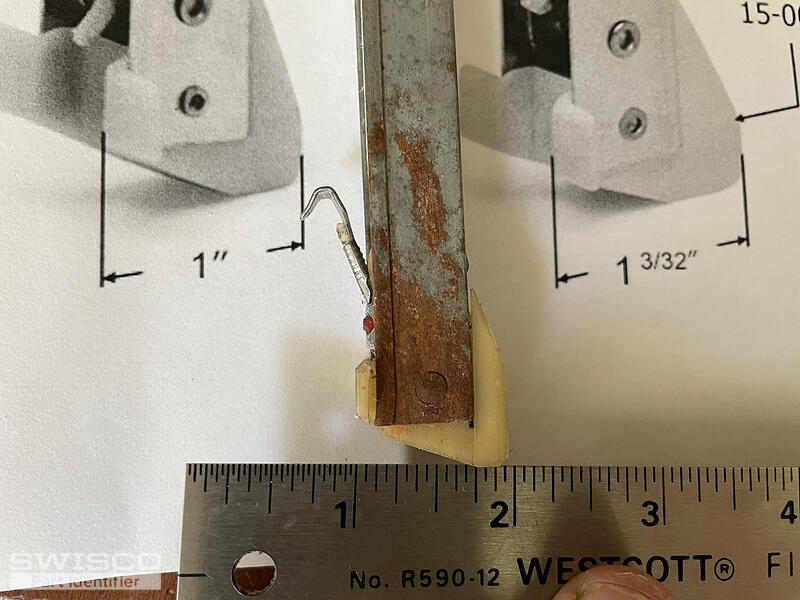

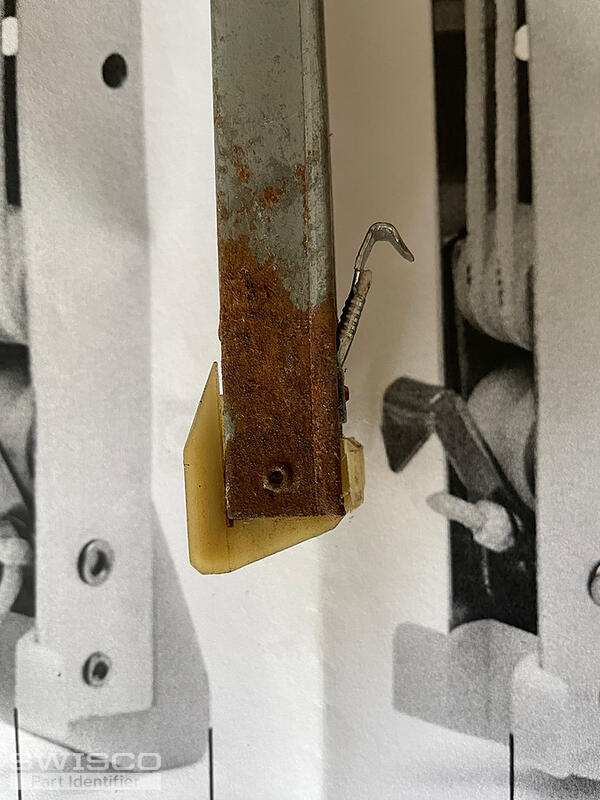

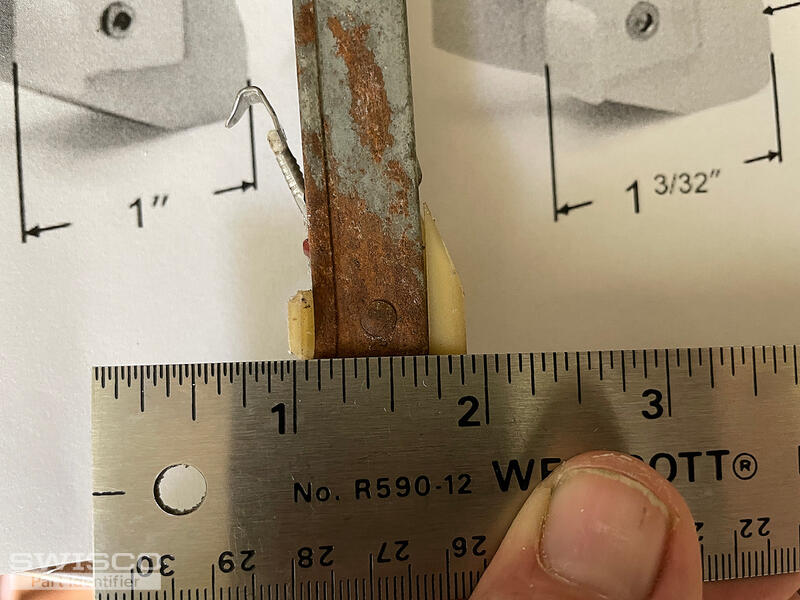

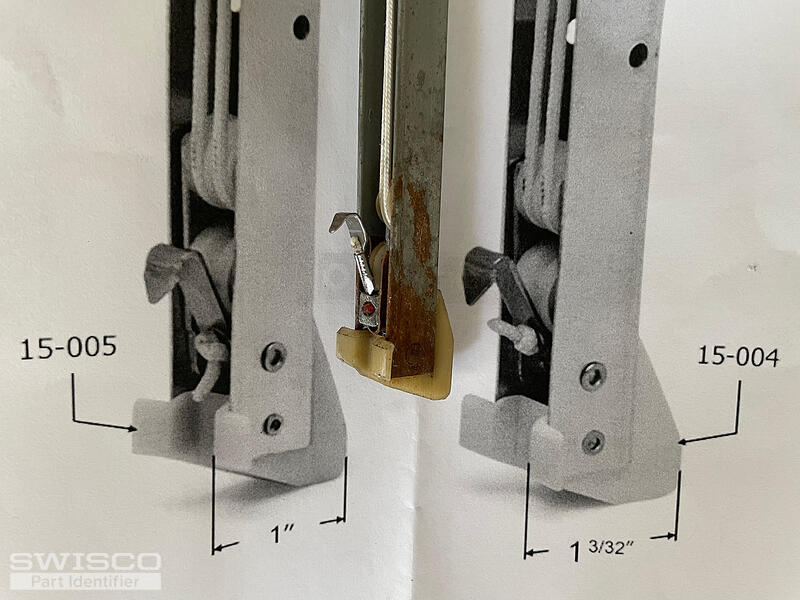

Hello Bob, you very kindly helped me identify the channel balances. You wrote...See our S380-34 or S385-34. The only difference between these two balances is the depth of the bottom nylon shoe, or the heel-to-toe measurement as seen below. Compare both with your old hardware to see what matches best. For a stamp choose 3330. So the attached photos show my Bottom Shoe is very slightly smaller than the ones you suggested. Does this matter? Thanks so much! Oliver
Thumbnail of the uploaded file named Shoe Measurement_4of4.jpg
Thumbnail of the uploaded file named Shoe Measurement_3of4.jpg
Thumbnail of the uploaded file named Shoe Measurements_2of4.jpg
Thumbnail of the uploaded file named Shoe Measurements_1of4.jpg
Profile picture of Bob
Bob from SWISCO responded:
November 19, 2021

Hi Oliver. You might need balances with our 15-029 shoe attached. This has a depth of 7/8". Please compare. None of our standard balances use this shoe, but we'd be happy to provide them for you via custom order. How many do you need? From there I will prepare a quote for you.
A quick learner from Sanibel, FL 33957 says:
November 19, 2021
Good afternoon Bob, sounds great! We are replacing balances on 2 windows. I would need 2 Left Side and 2 Right Side with the 15-029 shoe attached. Thank you so much for being patient with me and spending time finding a solution. Oliver
Profile picture of Bob
Bob from SWISCO responded:
November 22, 2021

Great, thanks! I just emailed you a purchase link and price quote that will let you add 4 balances made to this configuration to your cart. Please let me know if you needed anything else.
34" Series 380 Channel Balance
34" Series 380 Channel Balance
S380-34
$11.73
34" Series 385 Channel Balance
34" Series 385 Channel Balance
S385-34
$11.73
Winged Channel Balance Shoe, 7/8" Depth
Winged Channel Balance Shoe, 7/8" Depth
15-029
$0.82
