Channel Balance Indentification

Quick Learner from Jacksonville Florida

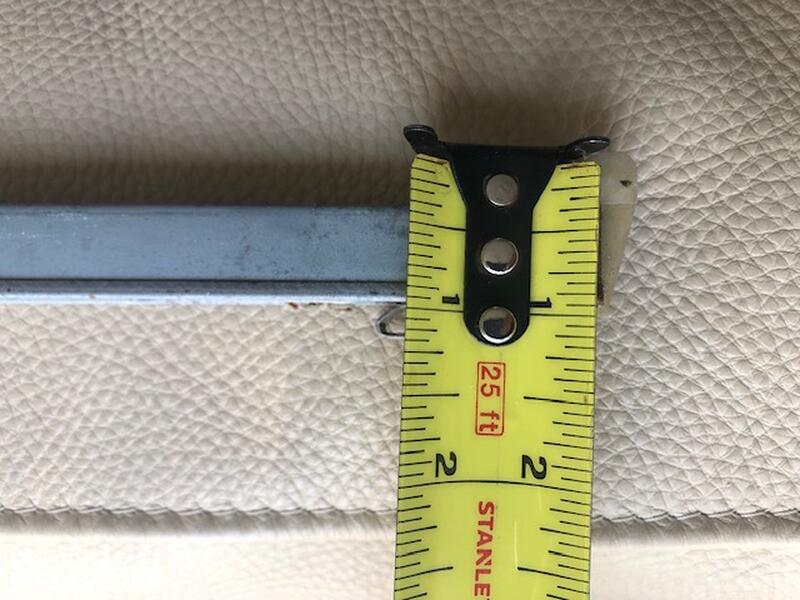

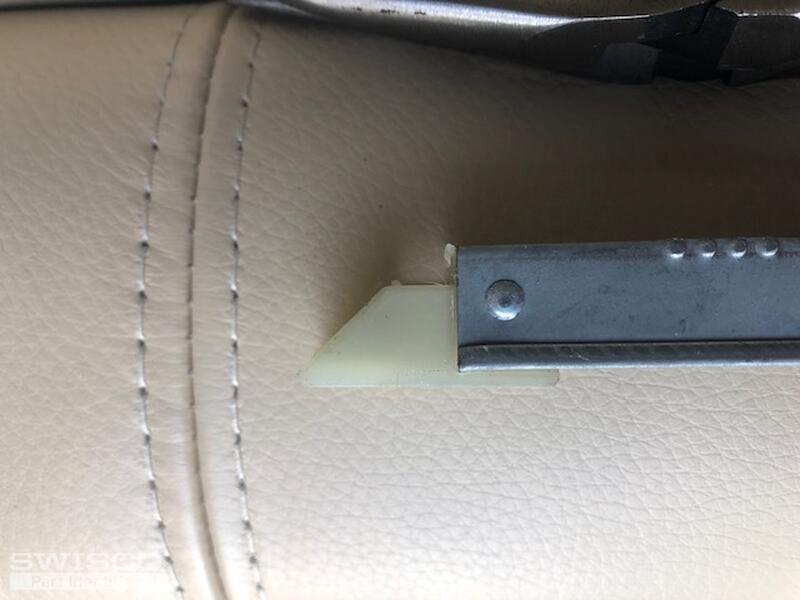

Metal part is 29 inches in length. Please let me knopw which ones I should get. Thanks!
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. See the image below. Do both the top and bottom attachments lack 'wings', or side tabs? Please confirm.

Diagram on how to choose between the 15-001, 15-002, 15-004, 15-005, and 15-029 channel balance shoes.
Diagram on how to choose between the 15-001, 15-002, 15-004, 15-005, and 15-029 channel balance shoes.

If both attachments lack side tabs, you have either our S351-29 or S390-29. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. See the illustration below for reference. In either case, for a new stamp option go with 2830.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
