Channel Balance Quote Request

Home Owner from USA

Apr 12, 2021 10:59 am

Looking to purchase a S751 Channel Balance with a 15-197 shoe.

The length of the metal channel is 36 3/8" and is ribbed. The stamp is a 34HB.. I will want 4 of these.

7 Replies

Emily from SWISCO

Apr 15, 2021 1:10 pm

Hello! If you're looking to place an order you can contact our customer service department at 856-317-6263. You can also view the pricing for the S751 and 15-197 on their respective product pages.

Home Owner from USA

Apr 19, 2021 1:58 pm

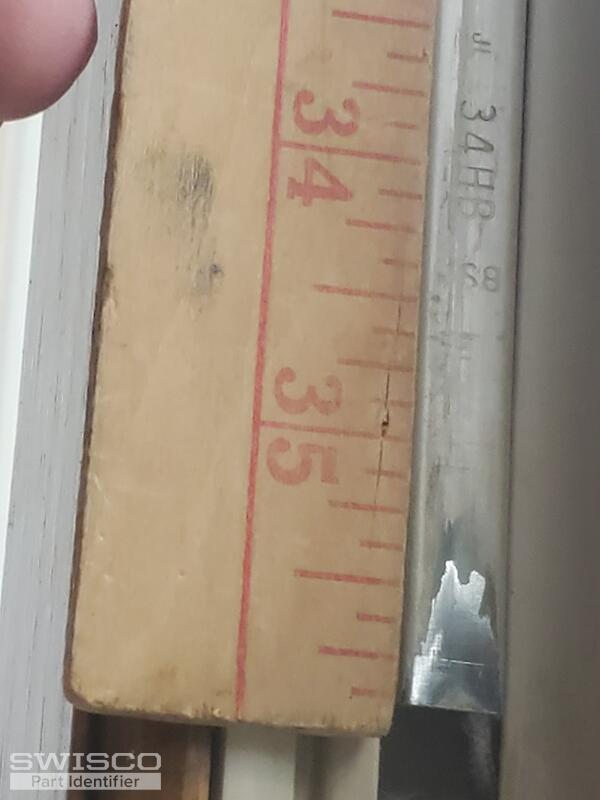

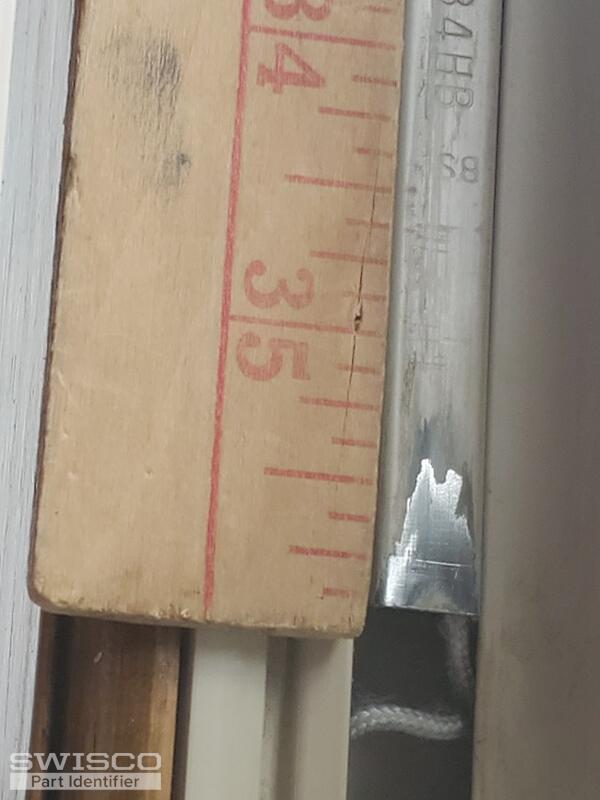

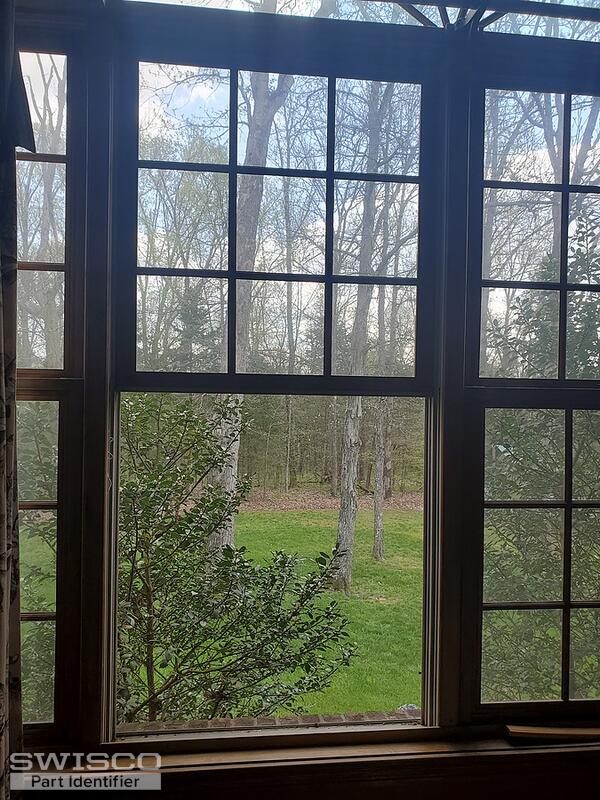

Here are some pics.

4 user uploaded images

Home Owner from USA

Apr 19, 2021 1:59 pm

more pics of the balance.

2 user uploaded images

Paul from SWISCO

Apr 22, 2021 11:05 am

Hello! The stamp 34HB on your channel balance is not a normal code. It could be 34HD which would represent a spring weight for a sash weighing between 24-29 pounds.

According to the stamp on your balance, the length of your balance would also be 1" more, making it 35". For example, your stamp is 34, which translates to a length of 35".

You might have to go back to the window manufacturer to see if they'll be able to help.

Home Owner from USA

Apr 22, 2021 12:02 pm

Thank you for this information. Unfortunately Semco has gone out of business. I did weigh the window and it weighs 25lbs.. would it be possible to come up with something that would work in this window? The balance end to end is 36" and it would need to support the 25lb window. I could replace both balances if needed and even substitute the shoe if necessary.

Paul from SWISCO

Apr 26, 2021 9:13 am

In that case the best option we can provide is a new S751-36 balance, but with a 15-197 attached to the end of the cord. We would also go with a 35HD stamp for sashes weighing 24 through 29 pounds.

This has to be custom made, since it's not a stock part. Custom balances cannot be returned for a refund, which is especially important to keep in mind since I cannot guarantee that this setup will even work. Just something for you to consider.

I will email you a purchase link and price quote now for 2. You can use that to place an order on our site.
