Channel Balance Replacement

A handy person from Santa Clarita, CA says:

Hello,

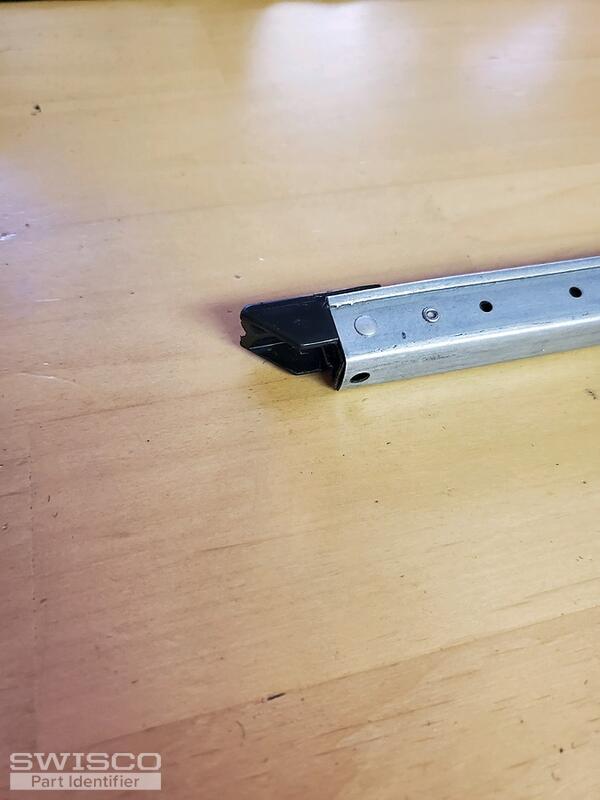

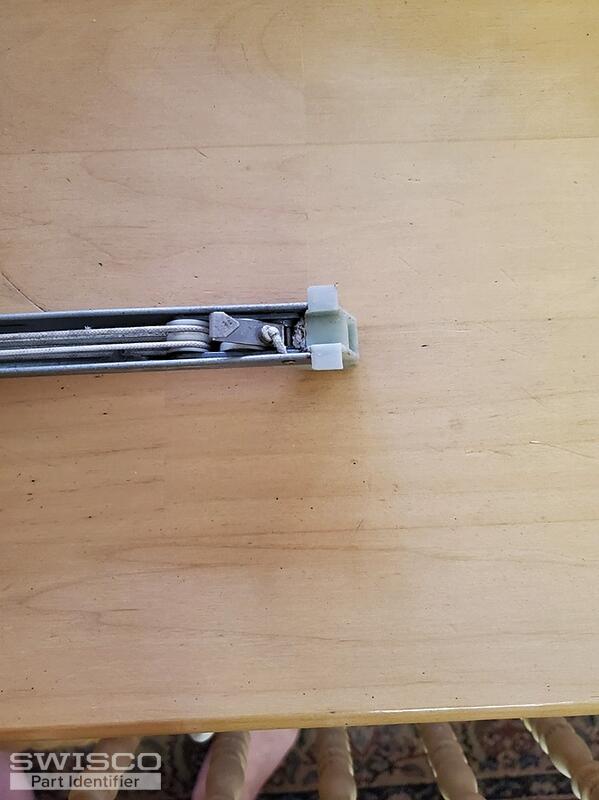

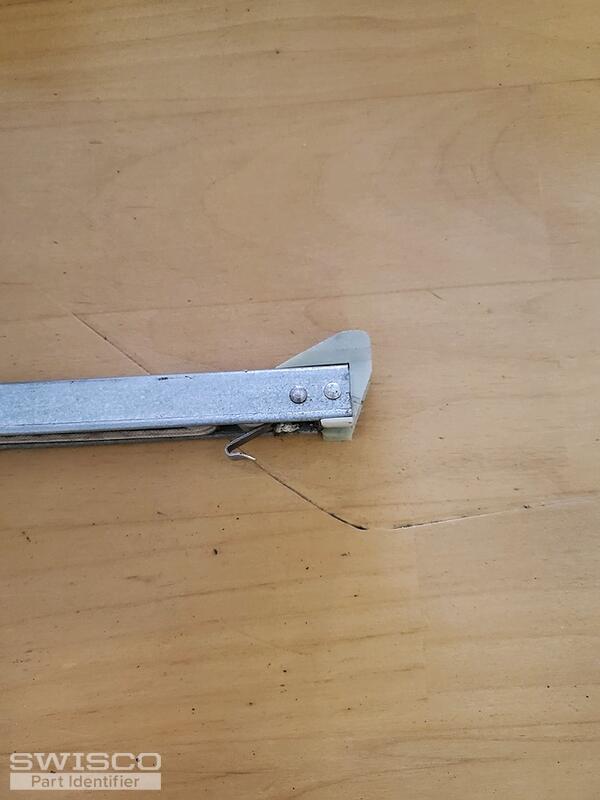

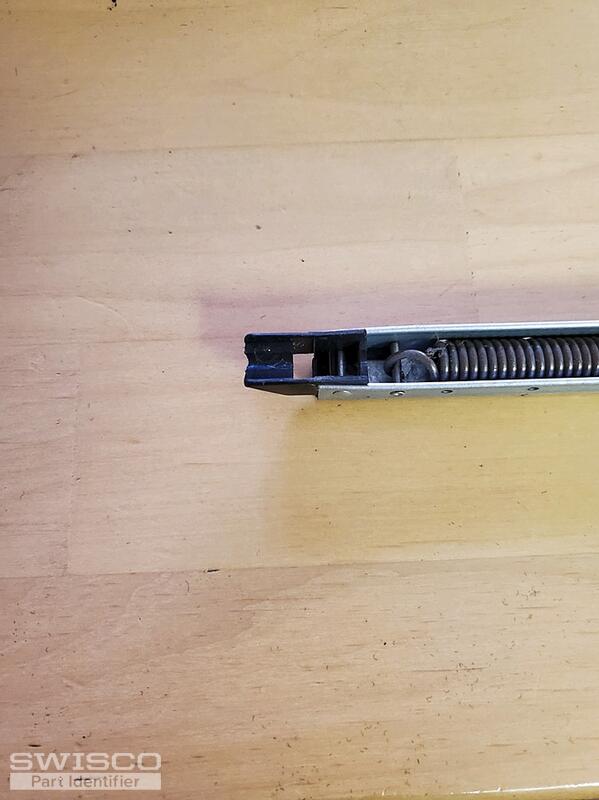

I would like to replace channel balances on both sides of one of my bedroom windows. I was only able to attach 5 photos. If you need additional photos I have them and can send them along if needed. I also have a couple of photos of the 2 nylon fittings at the top of the window, that needs replacement. The length of the balances are 28". Would I be able to get a cost estimate and part numbers please?

Thank you,

Tim

Thumbnail of the uploaded file named 80704.jpeg
Thumbnail of the uploaded file named 80706.jpeg
Thumbnail of the uploaded file named 80708.jpeg
Thumbnail of the uploaded file named 80710.jpeg
Thumbnail of the uploaded file named 80712.jpeg
Profile picture of Bob
Bob from SWISCO responded:

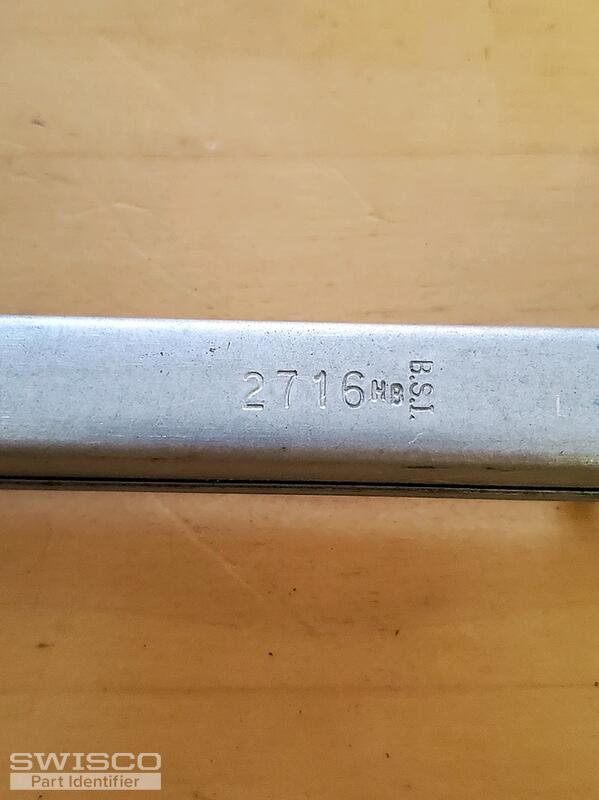

This looks like an S350-28 to me. Just look over the dimensions and specifications to ensure it matches what you need. You'll also have to choose a stamp option, which reflects the weight range your balance is calibrated to support. Your balance has a stamp we don't recognize. The best thing to do is to weigh your window sash. You can then match that exact weight with one of the weight ranges listed alongside each stamp option under the product description on the S350-28 shop page.
