32DS37 Channel Balance Replacement

Quick Learner

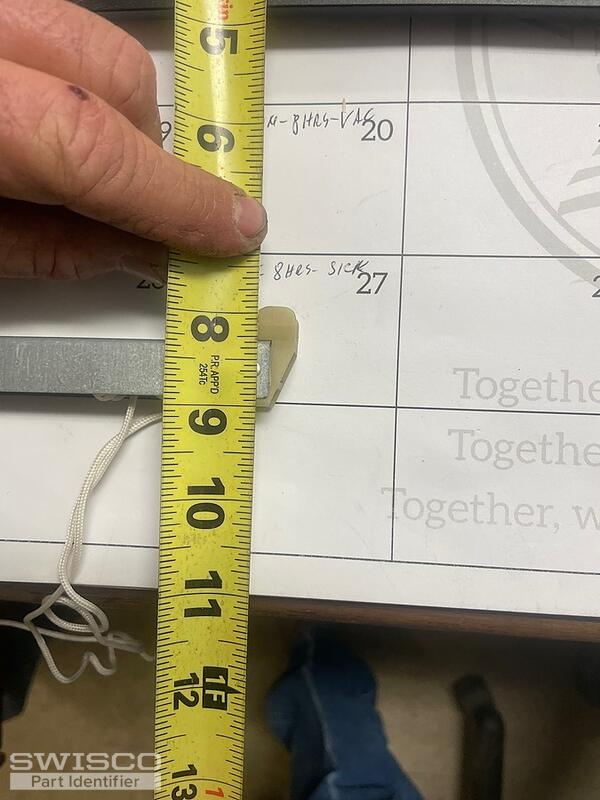

Having difficulty identifying replacements given the shoe measurement and stamp. Any assistance helps. Thank you!
4 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your balance assembly resembles the S390-33, which uses a 1-1/8" deep bottom fitting. The 37 at the end of your stamp code indicates that you may have a 37-pound window sash. I would recommend confirming your exact sash weight and, if it is 37 pounds, you would need a 3265 strength option to support between 35-39 pounds. Take a look and thanks for posting.

Close up view of the S390 balance shoe.
Close up view of the S390 balance shoe.
