Channel Balance Replacement

Handy Person from Trinity, Florida

 Looking for replacement Channel Balance for non-tilt window. It is 30 inches.

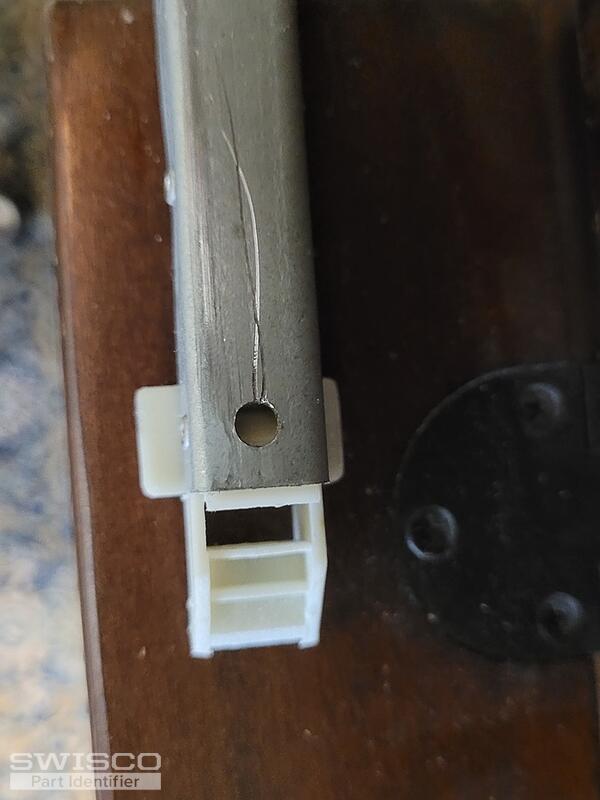

These photos are the channel end with the hook.

Thanks,

Cliff

5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

 It looks like you have either the S380-30 with a 1" shoe or the S385-30 with a 1-3/32" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Let me know if it does not match either measurement.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

It is a bit difficult to read the stamp on your balance, can you please confirm what that stamp is?

Handy Person from Trinity, Florida
The depth of the shoe bottom is 1".

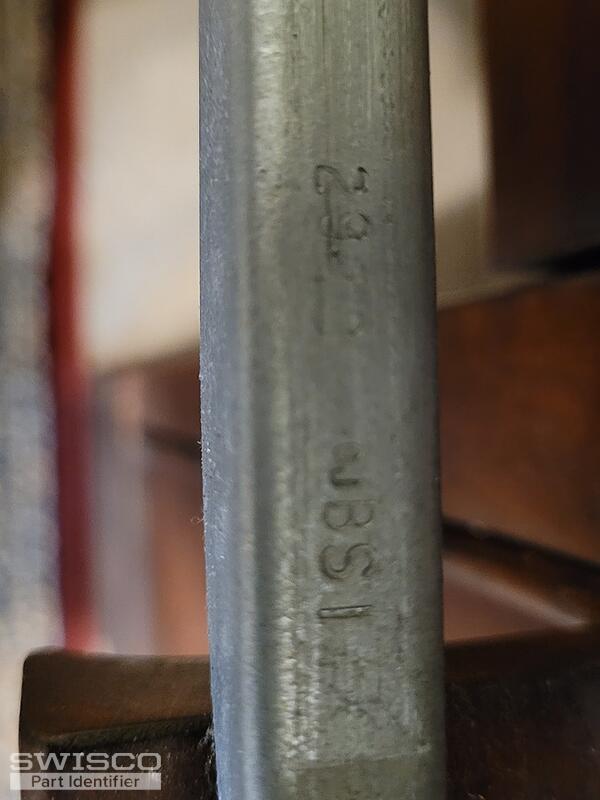

There are two stampings:

2910

ojBSI

Photo attached
1 user uploaded image
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Okay, great. So you'll need the S380-30 with a 2910 stamp. You may use the website to place your order.

If you need assistance with placing the order, a member of customer service will be more than happy to assist you. They can be reached at (888) 991-1929, Monday - Friday 8:00am - 4:30pm.
