Channel Balance Replacement

Quick Learner from Lincoln, Ca

Feb 29, 2016 3:41 pm

Hello, I am need of replacement channel balances. My question is about the bottom shoe. The measurements of my bottom shoe match 15-004 of the 385 series, but the side profile is different. How important is that? I hope you are able to see what I mean from the pics. Thank you, Jon.

4 Replies

Tom from SWISCO

Mar 2, 2016 1:05 pm

It may be important, depending on exactly how different it is. We did not receive your pictures, though. Can you try again?

Quick Learner from Lincoln, CA

Mar 3, 2016 8:12 am

I hope this pic works

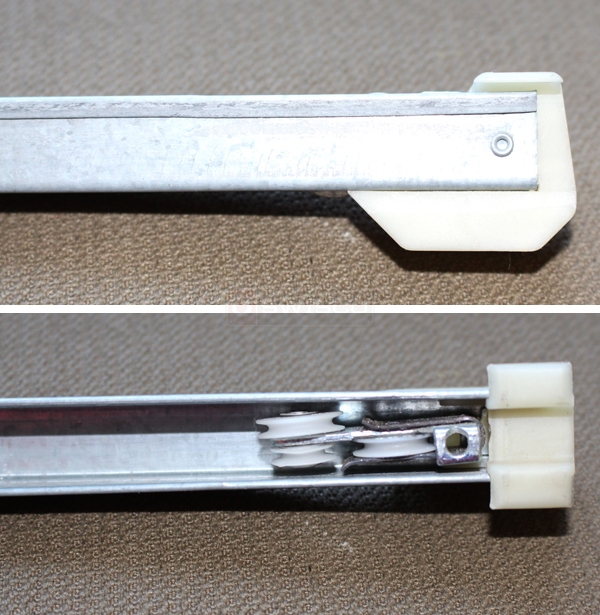

User submitted photos of a window balance.

Paul from SWISCO

Mar 4, 2016 1:14 pm

Thank you! That is a little weird. I have seen this kind of shoe profile before, but only used in special types of balances where the pulley wheel is built into the shoe. This is clearly not the case for yours, though, so I think you can get away with using the 15-004. I don't see anything else that may it from working. As long as the depth is 1-3/32" I think you should be okay.
