Handy Person from Fayetteville, GA
Oct 13, 2025 11:46 am

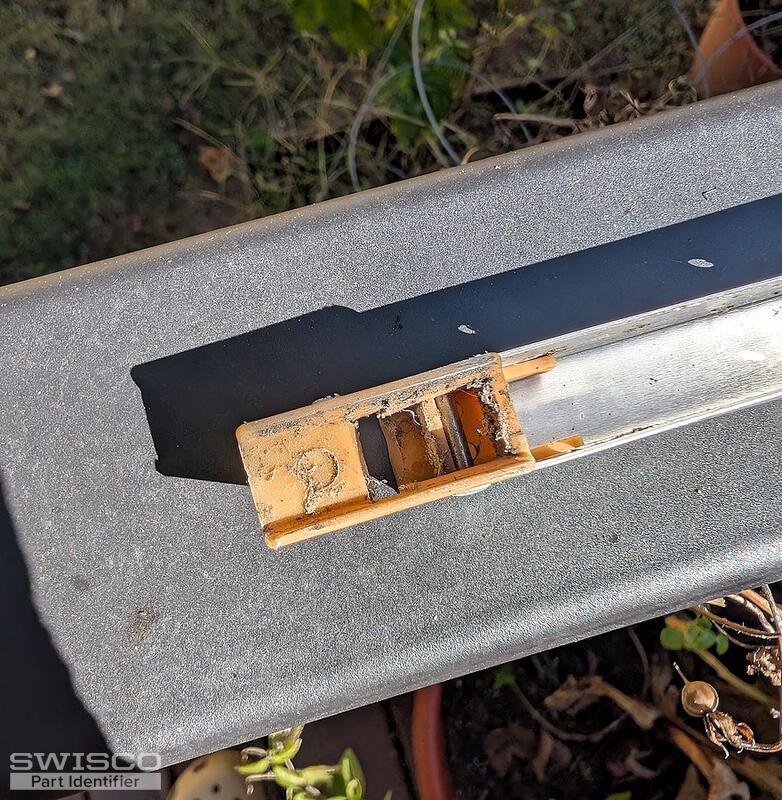

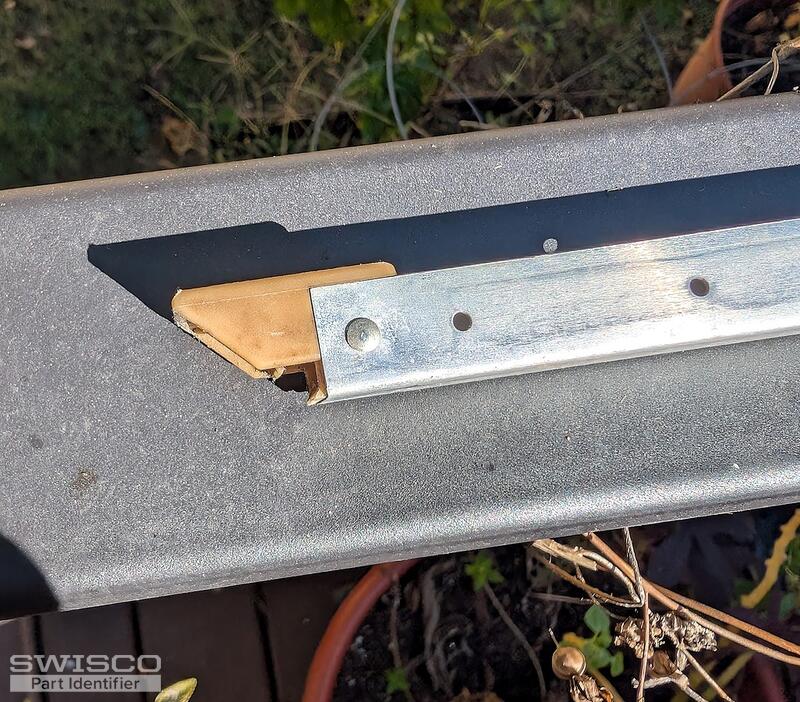

Good morning! I need to order replacement channel balances for some old (but still serviceable) aluminum casement windows. The channel balance measurements are 23 7/8" long, 5/8" deep and 1/2" wide. The only marking on the balance is '2320'. I've attached several photos to show the nylon end sections of each balance. Thanks!
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
Oct 17, 2025 10:33 am
SWISCO
Expert

Thank you for reaching out to us. Your balance looks like a match for the S351-24 or S390-24. The important difference is the depth of the bottom shoe, as shown below.

The length of the balance should be 24", however. Can you double-check that for us?

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Handy Person from Fayetteville, GA
Oct 17, 2025 4:56 pm
Thanks, I'm sure they are 24". I just need a better measuring tape. I went ahead and ordered the
S390 series lifts, so thanks for your assistance!
Emily
Emily from SWISCO
Oct 20, 2025 8:12 am
SWISCO
Expert

No problem! Good luck with the repair, and please don't hesitate to reach out if you need anything else.
