Can I Fix This Window?

Quick Learner from Las Vegas NV

PLYGEM WINDOWS FOR SCHULT MODULAR HOME SERIES 1500 SH MODEL H-LC25-48X96

Hi

Can this window be repaired without replacing the entire thing?

Steven

2 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hi Steve. Is the main issue that the window can't stay open? If so, then you probably need to just replace your channel balances. We can help you do this, but we'll need to see one removed from the window, with pictures of any stamps on the metal channel and of the nylon attachments at either end. The length of the metal channel, not including those nylon attachments, would also be helpful. See the videos below for removal and replacement details, as well as how to identify your channel balance. Many thanks.

Quick Learner from Vernal utah
I need two

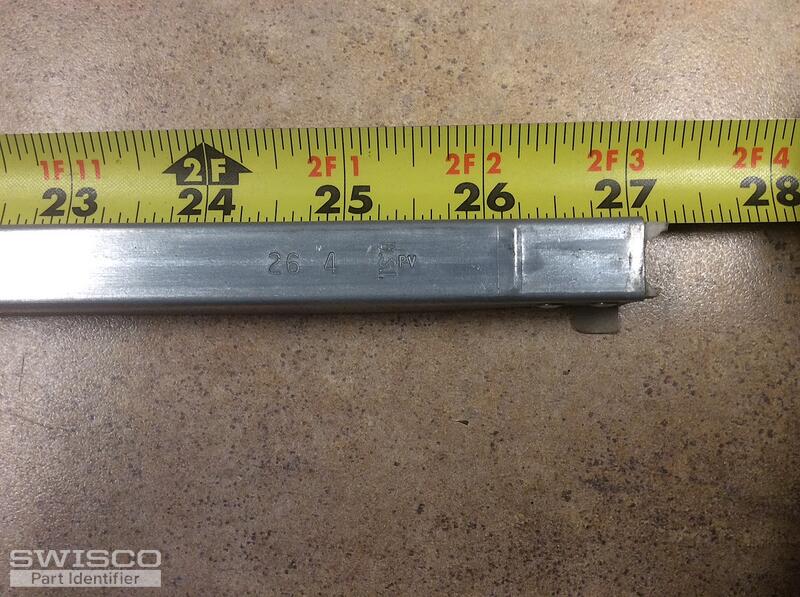

2 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

This appears to be either an S380-27 or S385-27. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. Compare an undamaged balance to the image below for reference. For a new stamp option, choose 2640.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
