Channel Balance Research

Question

I need a 2230 channel balance with attacked foot and top.

It looks like a 19-002 top

I am not as sure about the foot. Measured from the wing to the tip of the shoe is 1.25". But measured from the divot between the wings to the tip of the shoe is 1" so maybe a 15-005?

Can I get single and quantity pricing.

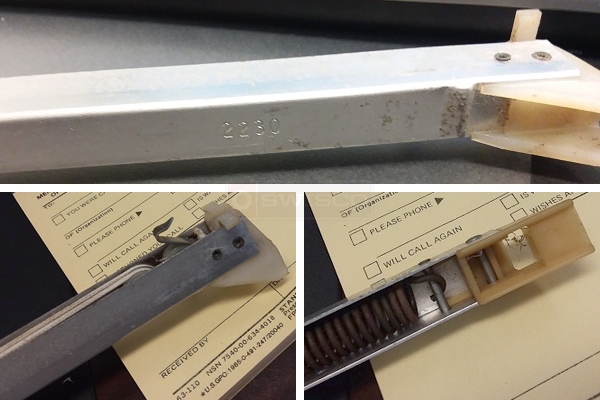

User submitted photos of a window balance.

Tom · Accepted Answer

Hello! It seems like you can use the S350-23 side-load balance with a stamp option of "2230," but you may want to check the shoe measurement again. Measure as shown below. Your shoe should match the shoe on the left at a width of 1-3/32". If it doesn't match, let me know.

Comparison of 15-004 and 15-005
