Channel Balance Top Guide and 2330 balances

A handy person from Morganton NC says:
Gapco Windows. 2330 24" channel balances. The top guides do not appear to be listed. The top is 7/8" x 11/16". Height is 1-13/16". Width is 5/8" Upper section is 5/8" deep, lower section is 3/8" deep. Top hole is 1/4" from top. Need two channel balance top guides. I am also ordering two 2330 24" channel balances.
Thumbnail of the uploaded file named IMG_1166.JPG
Thumbnail of the uploaded file named IMG_1173.JPG
Thumbnail of the uploaded file named IMG_1172.JPG

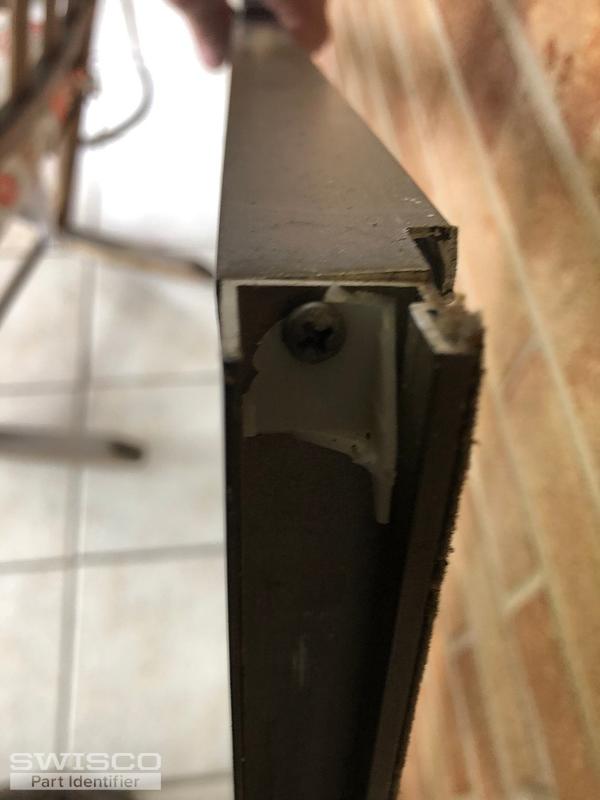

Thumbnail of the uploaded file named IMG_1169.JPG

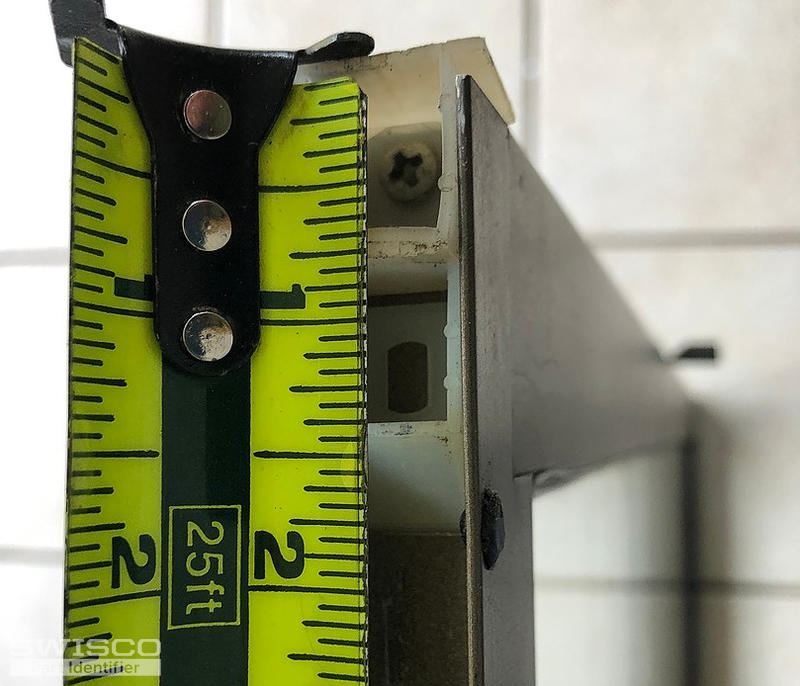

Thumbnail of the uploaded file named IMG_1171.JPG
Profile picture of Tom
Tom from SWISCO responded:

Hello! I would start by looking at our 18-009 top sash guide. Our dimensions seem very similar to yours. This may be the best match we have in our catalog. Please review our dimensions and information and let me know if you agree.

As for the balance itself, you will want either our S390-24 or S351-24. The only difference between them is the depth of the bottom shoe. You'll need to measure your shoe to confirm the better option.
