Would the part # 19-005 work for my windows?
All the measurements seem close except for the 11/16" measurement on 19-005.
My Chanel Balance Top is 13/16".
Thank you for your help.
Channel Balance Top, Winged
Quick Learner from 92203
Oct 16, 2023 10:56 am
3 user uploaded images
3 Replies
Quick Learner from 92203
Oct 16, 2023 11:49 am
I would like to order a Chanel Balance with a pulley. The Pulley pictures are on Reference #: D305827.
I would think all Channel Balance Tops would be the same in my house and most of them have about the same dimensions..
However on the Channel Balance Top on the Pulley balance looks quite a bit smaller. I was reading on your site that the pieces can grind down over the years. We have a lot of sand here where we live so it's not supersizing that this would happen.

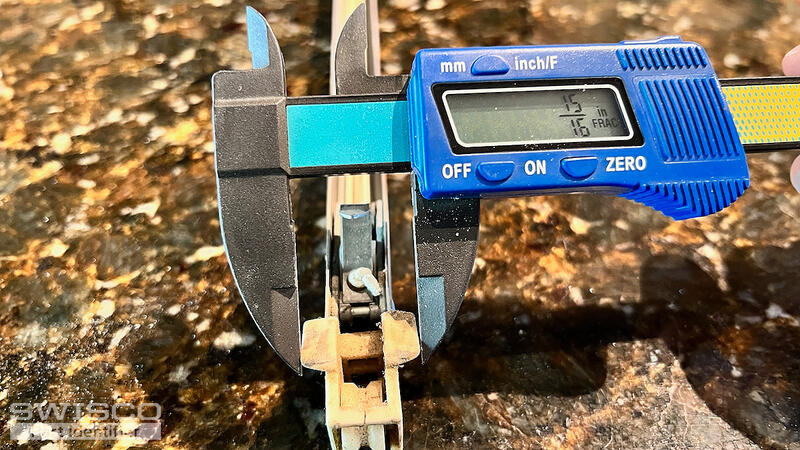

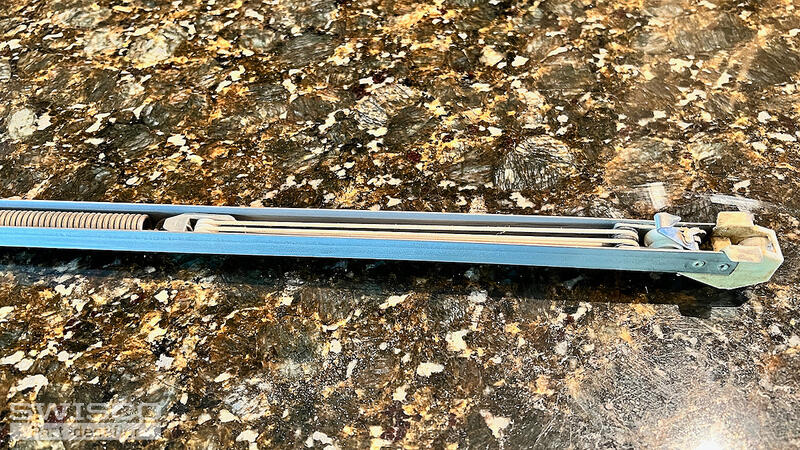

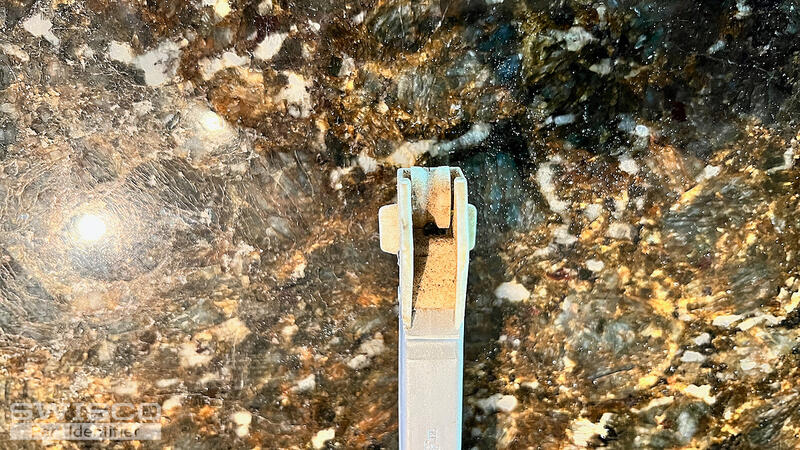

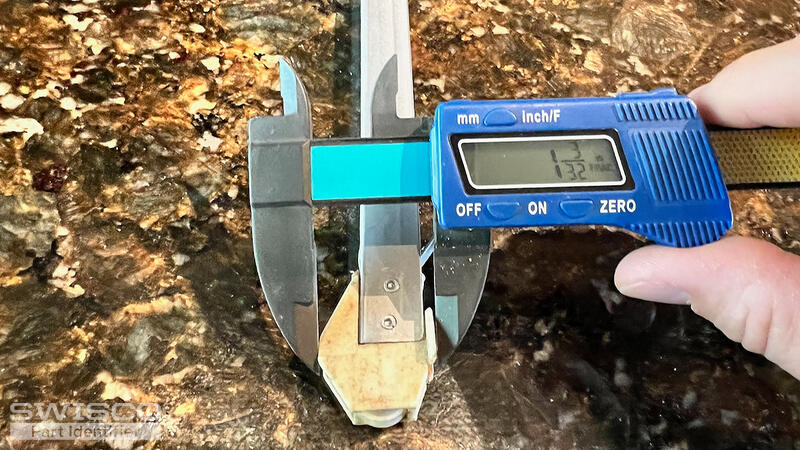

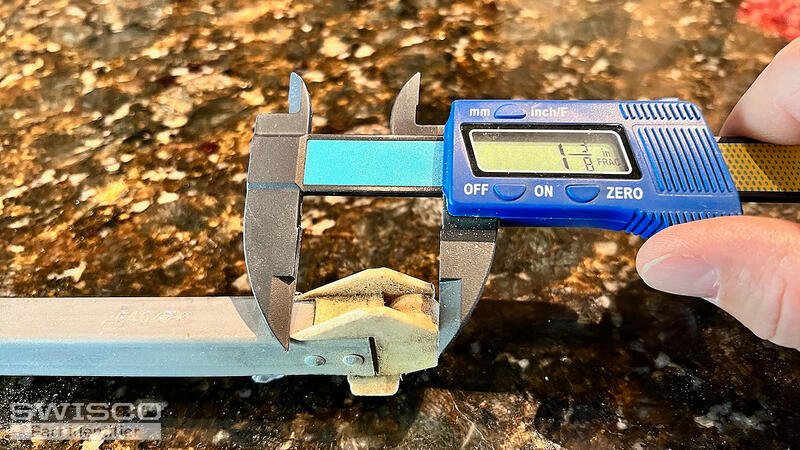

I took some pictures and hope you can identity The parts.
I would like to order 12 Balances total.
6ea - 33" - Stamp 3240
4ea - 27" - Stamp 26-3
2ea - 27" - Stamp 2640 with Pulley
Thank you for your help
5 user uploaded images
Emily from SWISCO
Oct 17, 2023 2:12 pm
Hi there!
Our 19-005 should work for you, yes. The video below will show you how to replace the top fitting if that's all you want to replace.
We can help supply the whole balance assembly if you're interested. It will just have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length ending in 5/8" which is what makes it custom. For example, the metal channels should measure 32-5/8" and 26-5/8" long. Custom orders are nonrefundable so you may want to double check to be safe.
In the meantime, I will email you a purchase link for your requested quantity that you can use to place an order on our website. They come pre-assembled so there's no need to purchase the 19-005 top. Please note, there is a 5-6 business week lead time.
Let me know if you have any questions!
