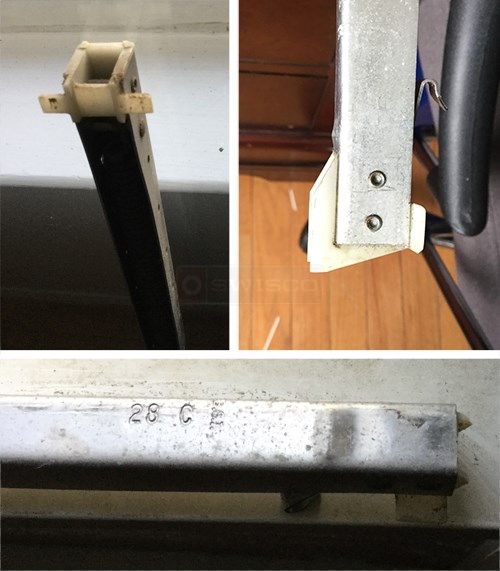

The channel balance is 28-5/5" long, width 9/16", depth 11/16". The sash weight is 21.2 lb.
The balance is marked 28 C along it's length and BSI across as in the picture.
Please advise what channel balance is suitable for these windows. Also, please indicate what the top and bottoms are.
The windows are non tilt approx. 36" x 64". There are no markings on the window itself, but will you be able to know the manufacturer from the channel balance marking?
Thanks,
Satish
Channel Balance Top and bottom identification
Home Owner from Maryland
Mar 12, 2017 8:02 pm
3 Replies
Home Owner from Maryland
Mar 13, 2017 1:40 pm
The previous channel balance bottom was broken. Here is a new picture.

Paul from SWISCO
Mar 21, 2017 10:51 am
Hello Satish,
It looks like you have a Rollyson window balance Series 371. The length of the channel should be 29". Please compare. If so you can use S371-29 and the spring weight option for 28 C is our stamp option 2830.
It looks like you have a Rollyson window balance Series 371. The length of the channel should be 29". Please compare. If so you can use S371-29 and the spring weight option for 28 C is our stamp option 2830.
