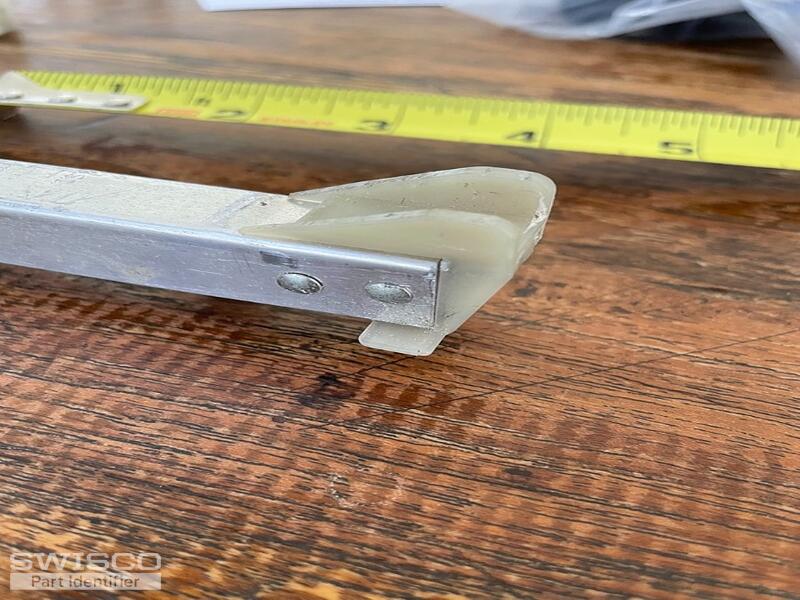

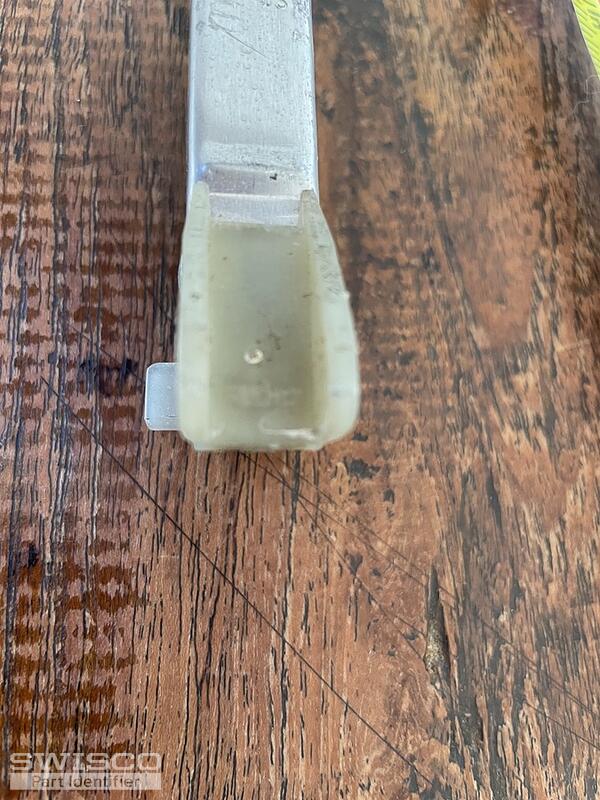

Hi, We have a 1/2 inch channel balance that we need to replace. Please help with finding the right part. Thank you!
Meltem
Channel Balance for Non-Tilt Sliding Window
Home Owner from 93906
Jul 9, 2021 5:17 pm
5 user uploaded images
2 Replies
Emily from SWISCO
Jul 14, 2021 11:04 am
Hi there!
With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2630.
If you have any further questions just let us know.
Comparison of the S378, S380 and S385 balance shoes.
