Channel Balance for a Gienow Window

Start a new Discussion

Quick Learner

May 9, 2018 10:13 am

Please review and advise.

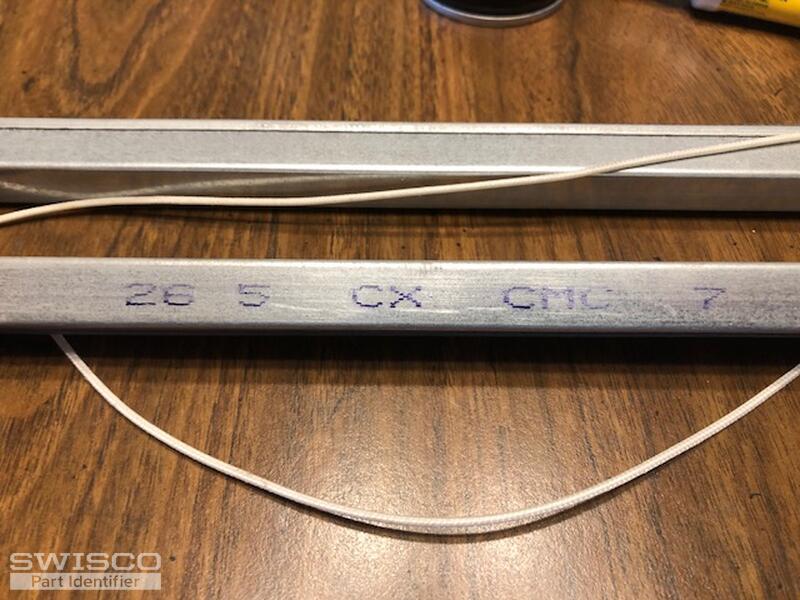

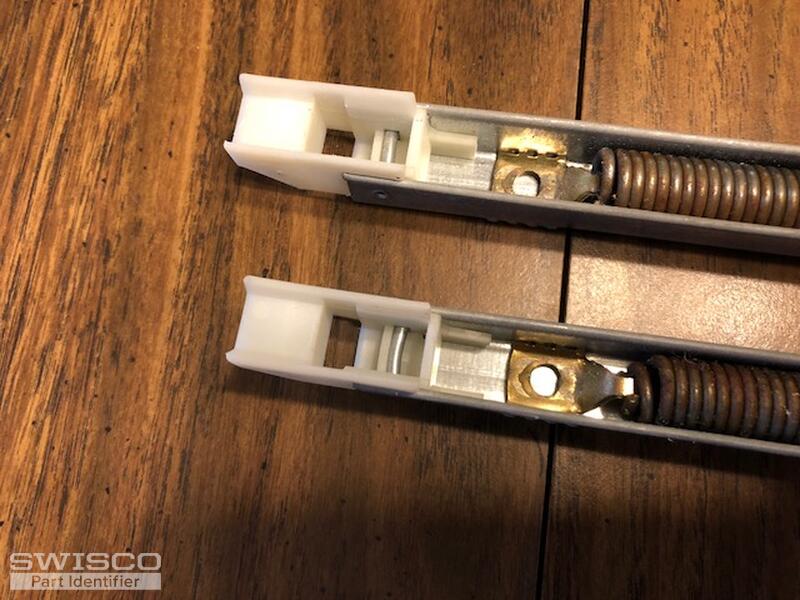

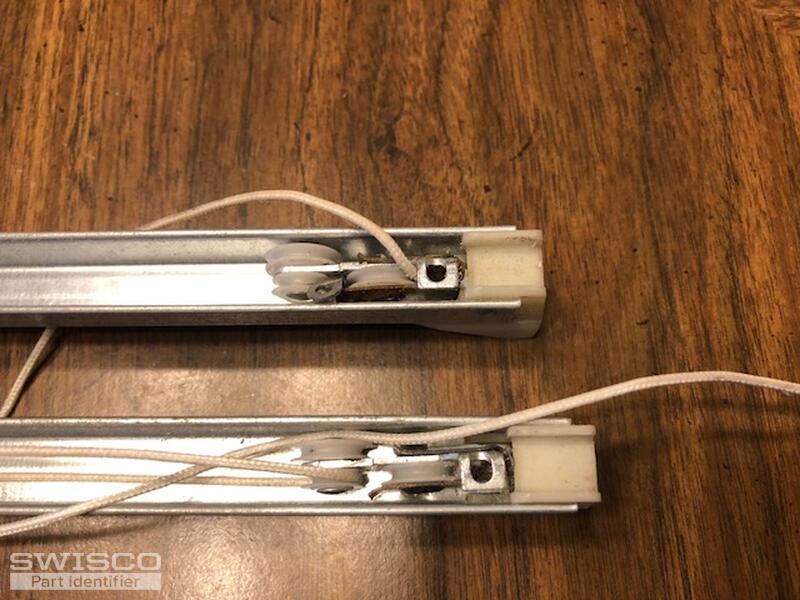

3 user uploaded images

4 Replies

Casey from SWISCO

May 9, 2018 10:30 am

Hello,

It looks like you have either our S351, 15-002, or S390, 15-001, channel balance. Take a look at the image below to determine which balance you'll need. You'll also need to know the length of your balance and the weight of your sash in order to choose the correct option.

Comparison of 15-001 & 15-002

Quick Learner from Farmington, MN

May 10, 2018 2:41 pm

I will need the 15-001 channel balance. The aluminum balance is 27 inches long. The approx weight of the dash is 27.2 lbs.

Casey from SWISCO

May 10, 2018 4:38 pm

In that case, you'll need our S390-27 channel balance with a 2650 option for your strength weight.

Let me know if you have any other questions. thank you!
