Channel Balance for non tilt window

Quick Learner from Hillsboro

Jun 19, 2025 5:56 pm

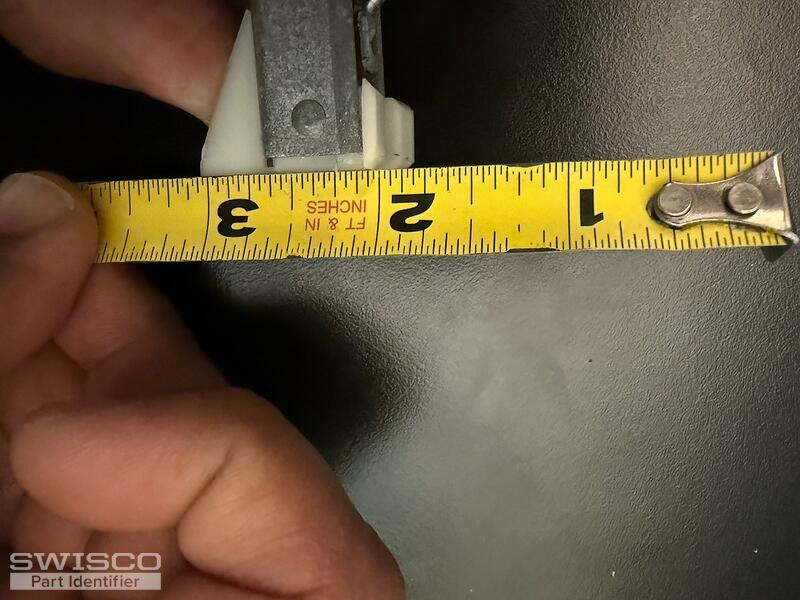

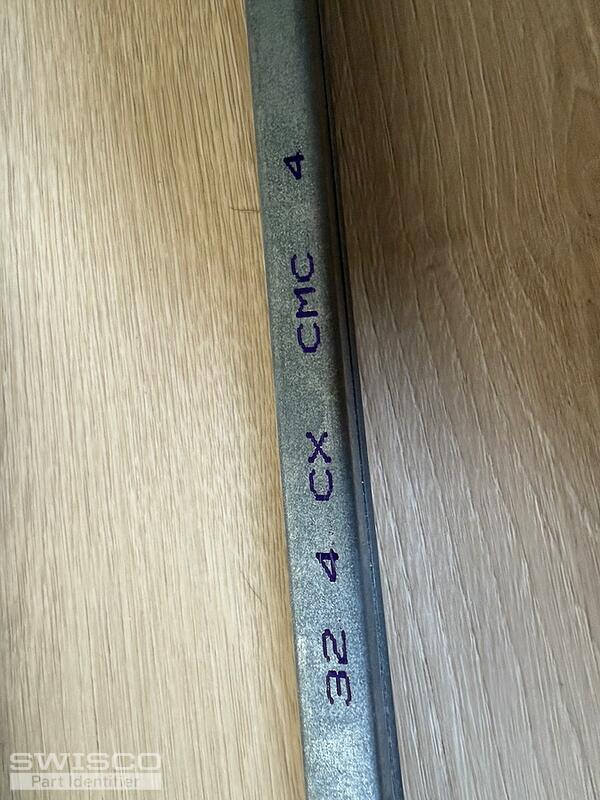

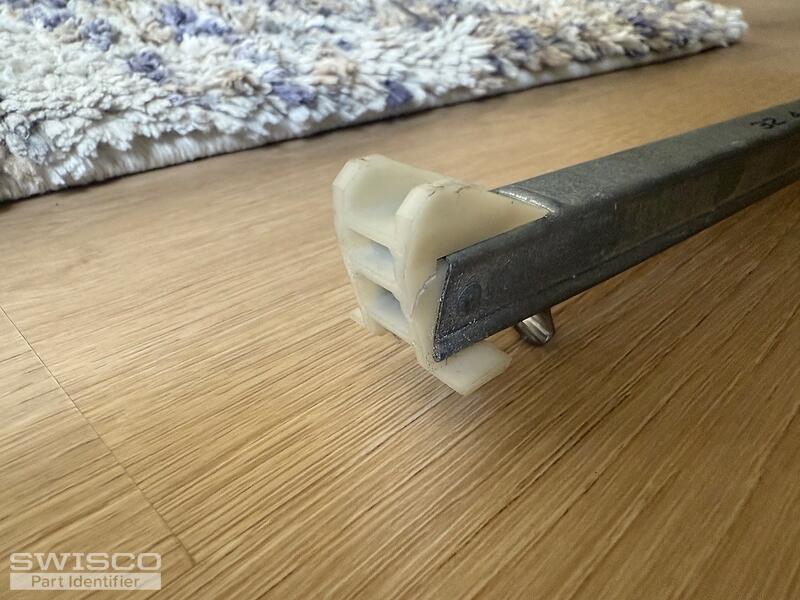

Attaching pictures for my non-tilt window.
length is 33 inch and width is 1/2 inch
Please let me know the part I need.
thanks,
Amit

5 user uploaded images

4 Replies

Bob from SWISCO

Jun 19, 2025 8:05 pm

Hi Amit. This looks like either an S380-33 or S385-33 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the 'heel-to-toe' measurement. See below. Measure your old balance's shoe depth to see what matches best. In either case, for a stamp option choose 3240.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Hillsboro

Jun 20, 2025 12:57 pm

Hi Bob,

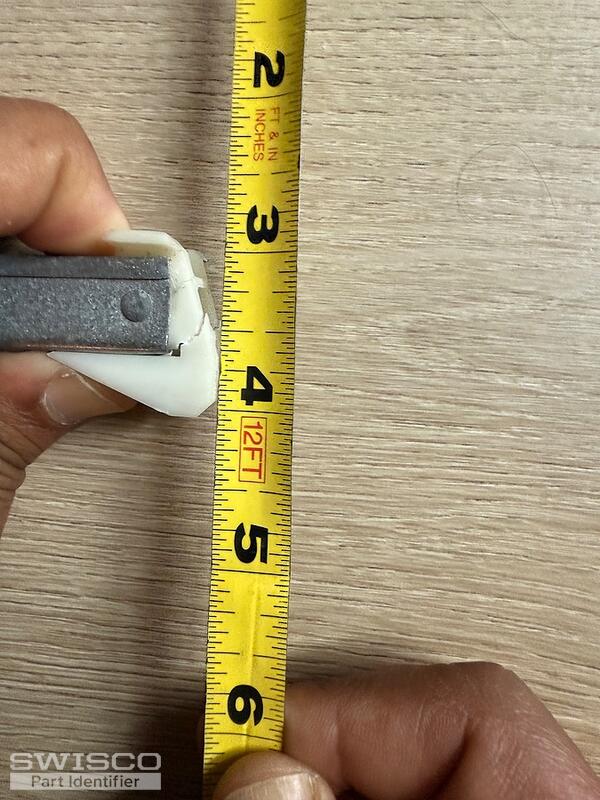

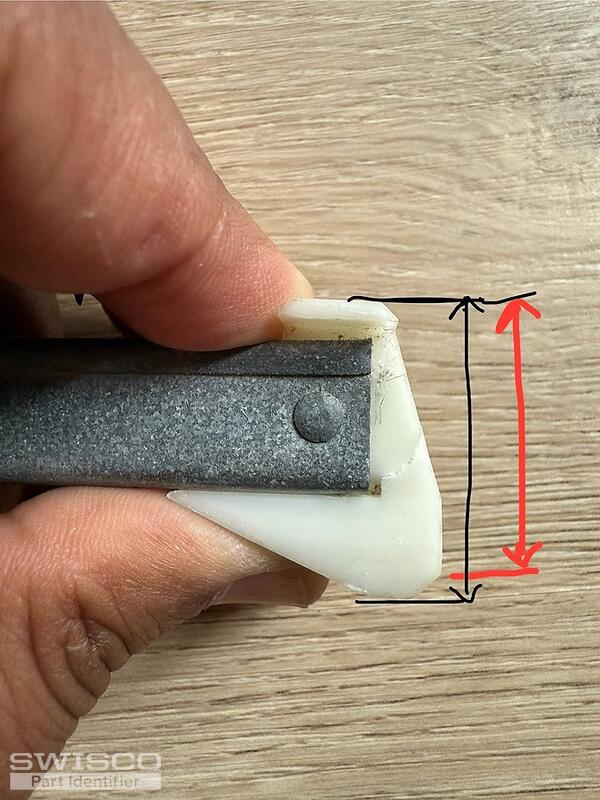

It seems like that the depth of the shoe is 1" if I measure red distance (see pic) and it is may be 2/32" inch more if I measure black one. I am little confused what would you suggest?
Thanks
Amit

3 user uploaded images

Bob from SWISCO

Jun 20, 2025 4:38 pm

Hey Amit. The depth is from the 'heel-to-toe', so the black line you traced is more accurate. If it's other 1", then it's the Series 385. Let me know if you have further questions.
