Channel Balance for sliding window approx 35' wide x 72 " overall ht.

Handy Person from Mesa, AZ

Nov 17, 2021 7:58 pm

Channel length (steel only) = 35". Printed on channel: 34 4 HX CMC 7.
Note: Your pictures for the Series 385 w/ 1-3/32" shoe width appears to match mine.

What series channel is the proper replacement?

4 Replies

Bob from SWISCO

Nov 19, 2021 12:50 pm

In theory it sounds like you need the S385-35. But I'd like to see photos of your balance's nylon fittings to be absolutely certain. From there we should be able to determine this one way or the other.

Handy Person from Mesa, AZ

Nov 22, 2021 3:05 pm

Bob,

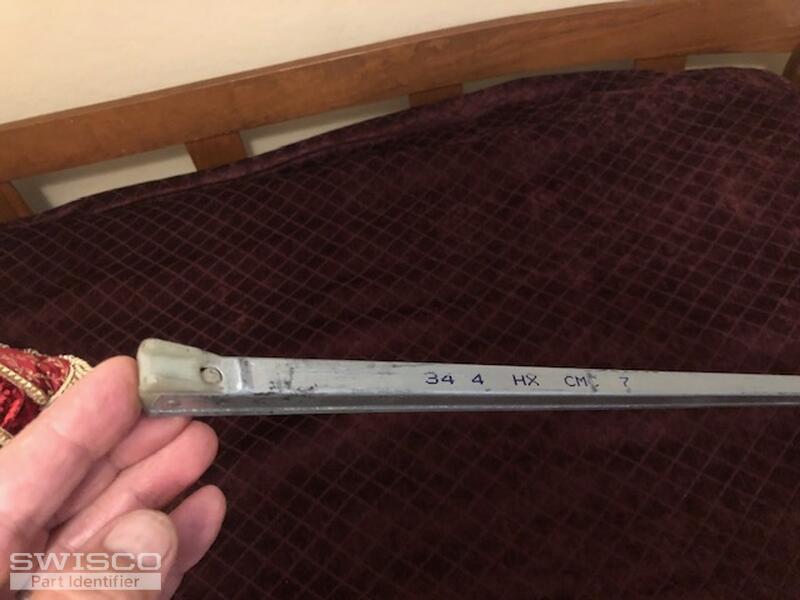

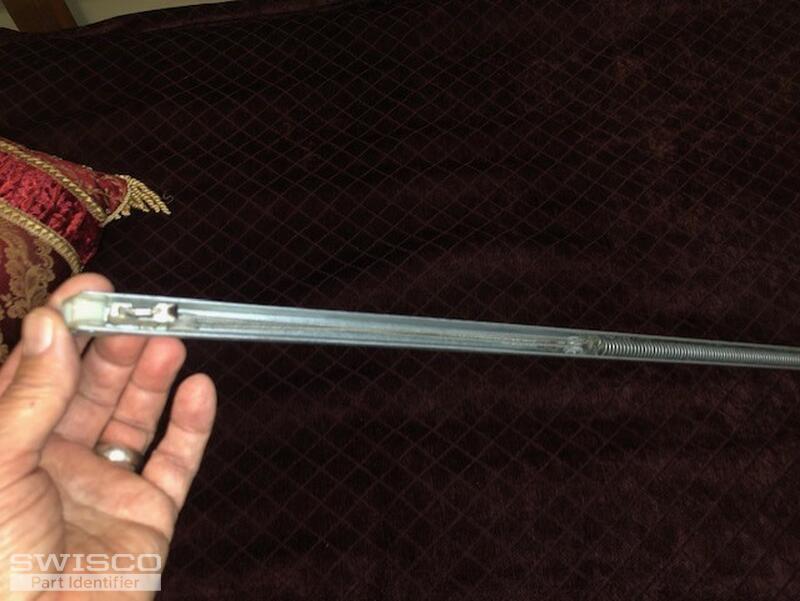

Thanks for your reply. here's some photos of the channel balance. If same as the S-385-35, please confirm. Thanks, Jim Barrera

5 user uploaded images

Tom from SWISCO

Nov 23, 2021 11:16 am

Thanks! I think this looks closer to our S395-35. The reason I say this is because your bottom nylon fitting does not have wings, same as this product. Look it over and see what you think.
