Channel Balance id
Quick Learner from Chula Vista CA
May 14, 2025 5:22 pm

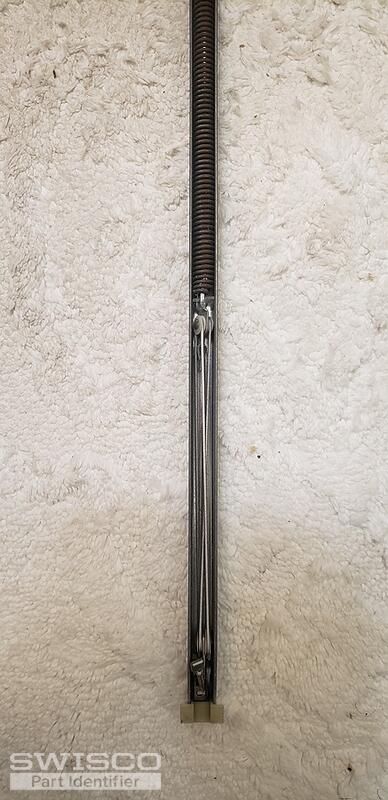

Need replacement channel balance part# 26-4-CV=CMC-1
4 user uploaded images
4 Replies
Jasmine from SWISCO
May 15, 2025 12:28 pm
Your window balance can be replaced with either the S378-27, S380-27, or the S385-27. You'll need to confirm the shoe's depth to determine which of these is the correct series.
I believe you'll need the 2640 stamp option but be sure to double check that the sash weight falls between 19 to 26lbs.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Chula Vista CA
May 19, 2025 5:42 pm
Jasmine,

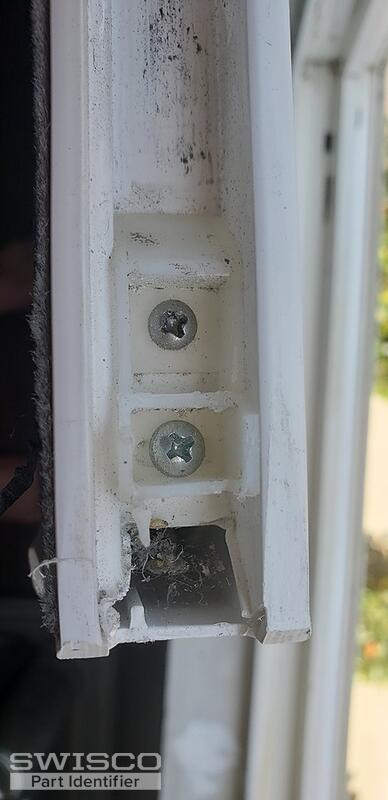

The window approx weight is 22lbs, the balance end measures 1-3/32; part # is S385-27. Upon inspection of the window the clips inside need replacement (see attached pic). Also, the screen assembly needs replacement size is 38" x 28.5".
Thanks,
ben
The window approx weight is 22lbs, the balance end measures 1-3/32; part # is S385-27. Upon inspection of the window the clips inside need replacement (see attached pic). Also, the screen assembly needs replacement size is 38" x 28.5".
Thanks,
ben
1 user uploaded image
Jasmine from SWISCO
May 20, 2025 9:39 am
Hi Ben,
This part appears to be the 18-188 Top Sash Guide. To confirm that it is the correct replacement, carefully look over the dimensions below and compare them.
Alternate view of 18-188
Alternate view of 18-188
