Trying to figure out the correct replacement
Length of metal bar 30 inches

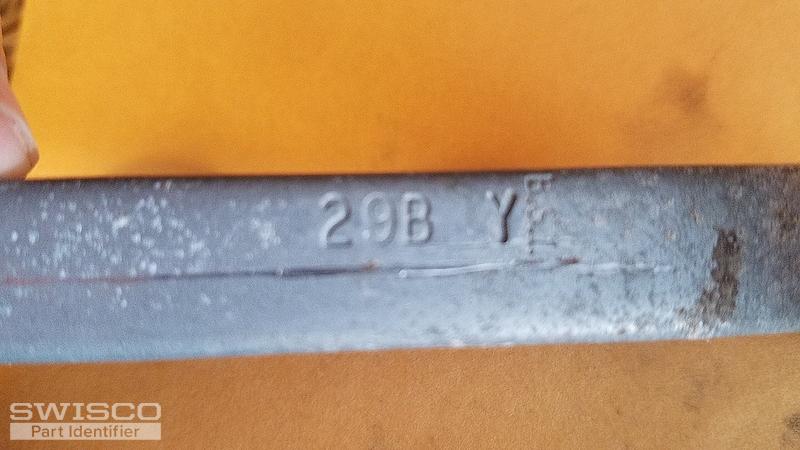

I/D stamped into bar 29B Y

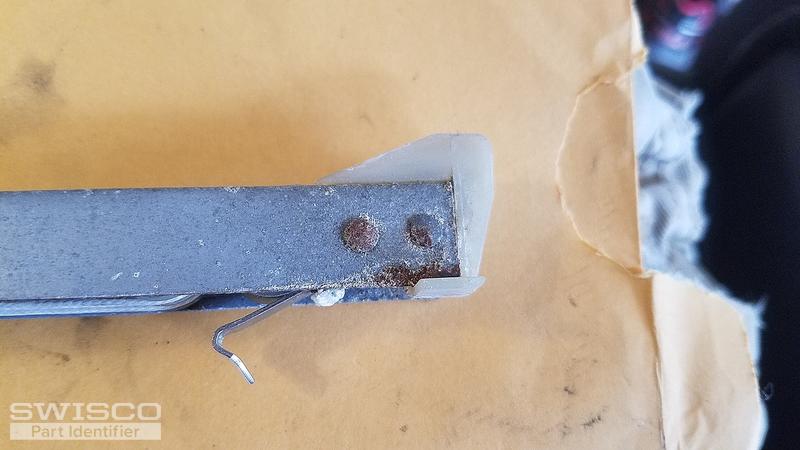

Channel balance top. Winged 1 3/16 in long 11/16 in wide
Channel balance bottom winged 1 1/16 in long 1 in wide
Trying to find a compatible replacement
Thanks
Terry
Channel Balance identification
Handy Person from Wellington, Fl
Dec 12, 2020 9:20 am
5 user uploaded images
2 Replies
Casey from SWISCO
Dec 14, 2020 1:33 pm
Hello, thanks for posting! It looks like you could have either our S380-30 or S385-30 with the 2920 stamp option. The difference between the Series 380 and the Series 385 lies in the depth of the shoe. Take a look at the picture below for more detail. Once you have determined this dimension you should be able to select the appropriate balance.
Comparison of the S378, S380 and S385 balance shoes.
