Channel Balance parts

Question

I have two broken Channel balancers.

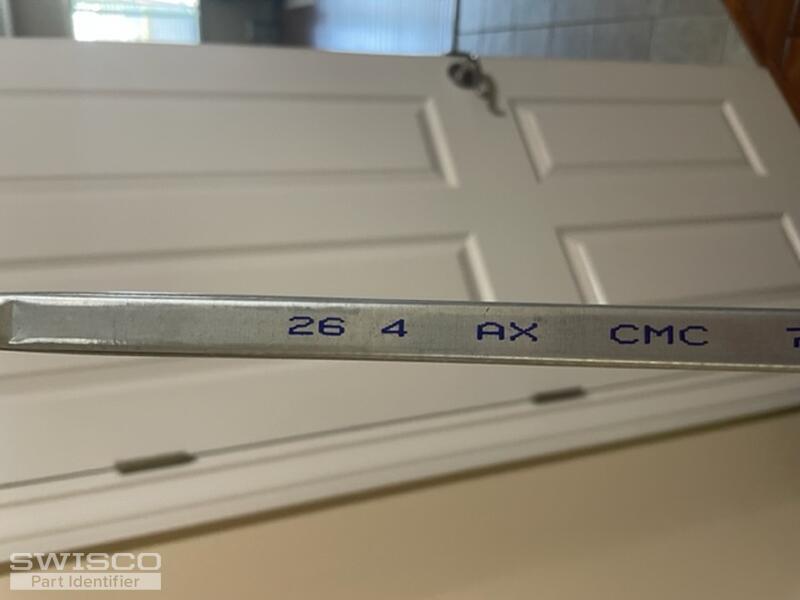

The number is 26 4 AX CMC 7. See pictures

I also need 2 sash guides for my Milgard window.

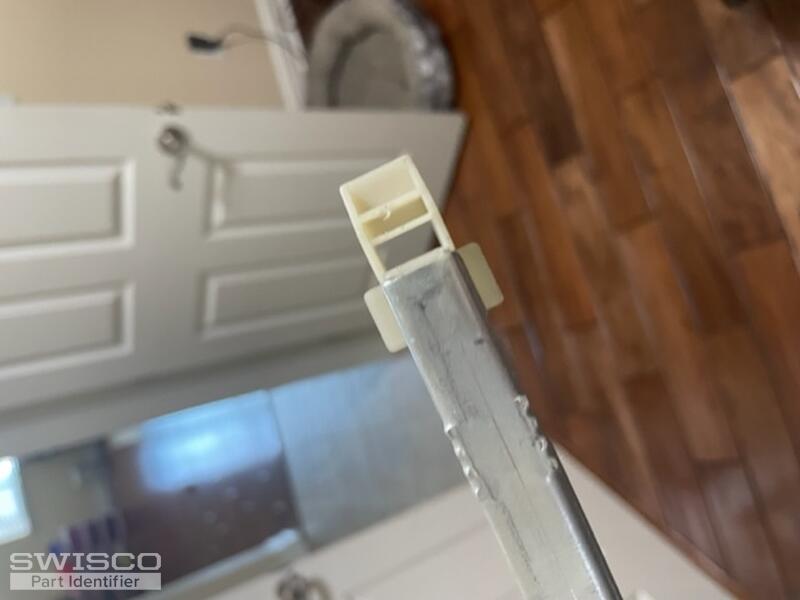

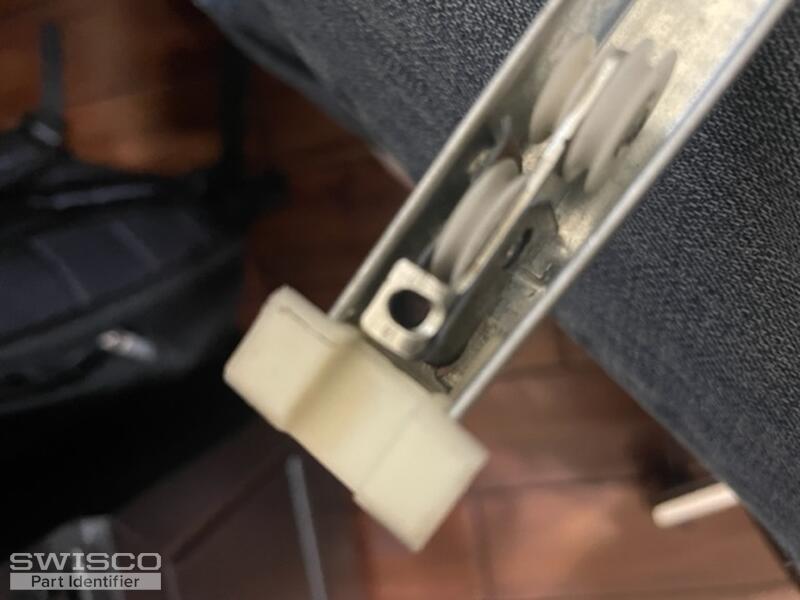

Attached are some pictures also

Casey · Accepted Answer

Hello,

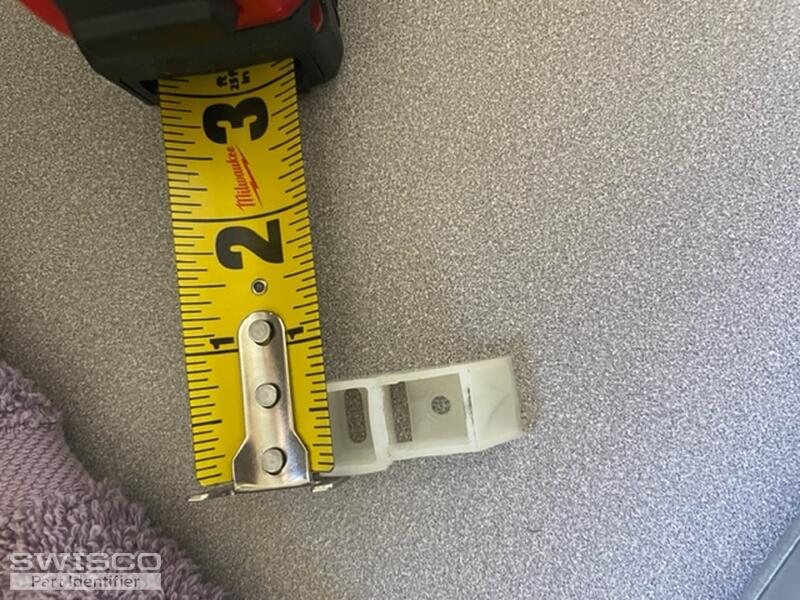

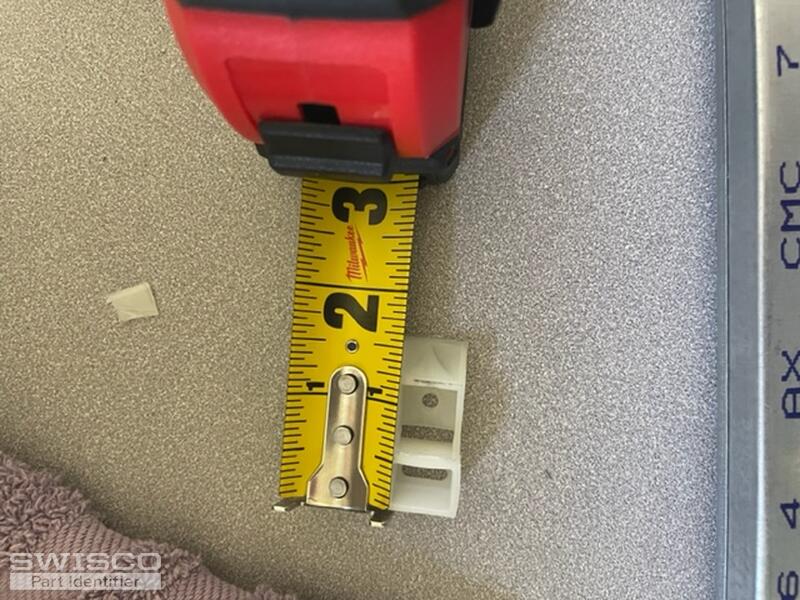

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances.

As for your top sash guide, you can start by comparing the dimensions shown on the 18-188 product page to yours. Let us know if there are any discrepancies and we can go from there.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
