Channel Balance replacement

Home Owner from San Diego CA

Sep 28, 2020 8:21 pm

Would like to replace a broken channel balance.
Builder used Alpine window.
Window # 152-502153
Channel balance # 32-2 BH5 CMC 75
I don't know what would be the SWISCO number.

4 Replies

Casey from SWISCO

Oct 2, 2020 9:16 am

Hello,

We'd be happy to help but we would need to see an undamaged balance removed from the window to compare to our selection, including both top and bottom attachments. Thank you!

Home Owner from San Diego CA

Oct 15, 2020 12:26 pm

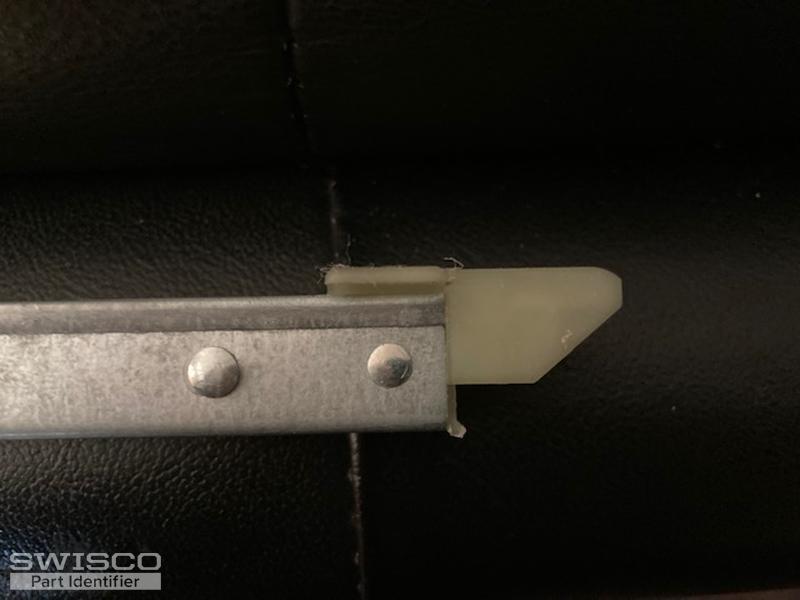

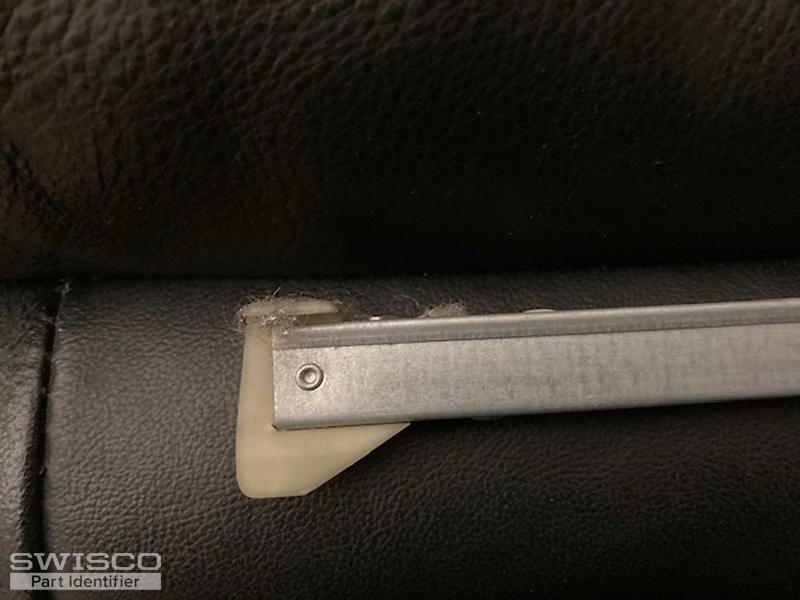

I would like to buy 2 replacement channels like this one.
I think it is 34 inches. Thank you

5 user uploaded images

Casey from SWISCO

Oct 15, 2020 1:14 pm

It looks like your top and bottom attachments have wings that jut out to the left and right. If so, you could have either an S380 or S385 channel balance. Make sure you're measuring only the metal attachment when determining the length. The 32-2 stamp indicates that the length should be 33".

You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 3220 spring strength option for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
