Channel Balance replacement part

Start a new Discussion

Home Owner from San Diego, CA

Jul 29, 2020 1:32 pm

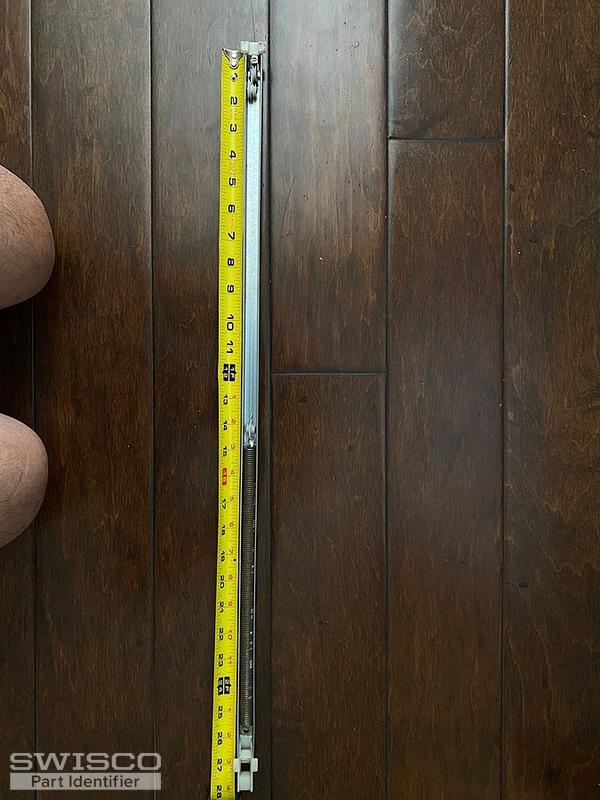

Please advise on the correct part to order. This part has imprinted 26 4 HX CMC 11. It is 27 inches long. Thank you.

4 user uploaded images

5 Replies

Tom from SWISCO

Aug 3, 2020 11:02 am

This looks like a match for our S385-27 to me. This comes with a 19-005 top and 15-004 bottom, so as long as those match up then you should be good to go.

Let me know if you had any questions.

Handy Person from Las Vegas

Jan 19, 2024 11:14 am

Hi There,

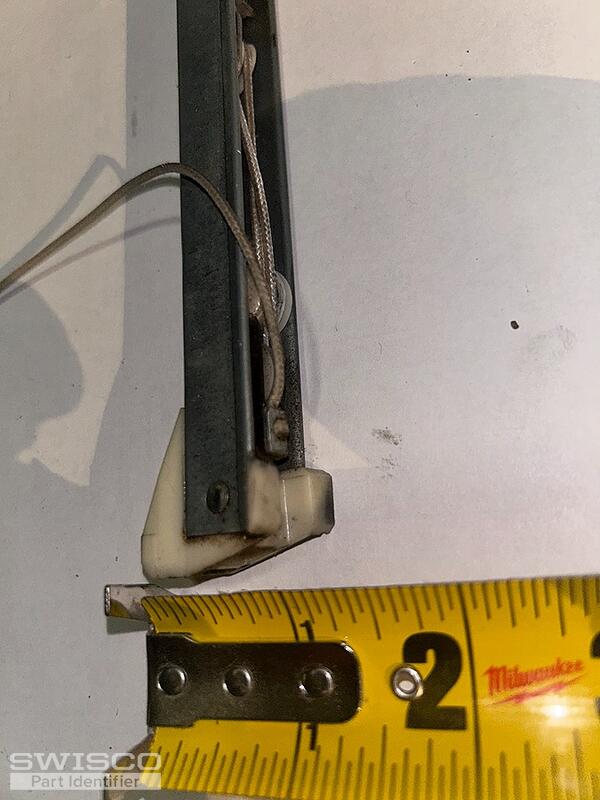

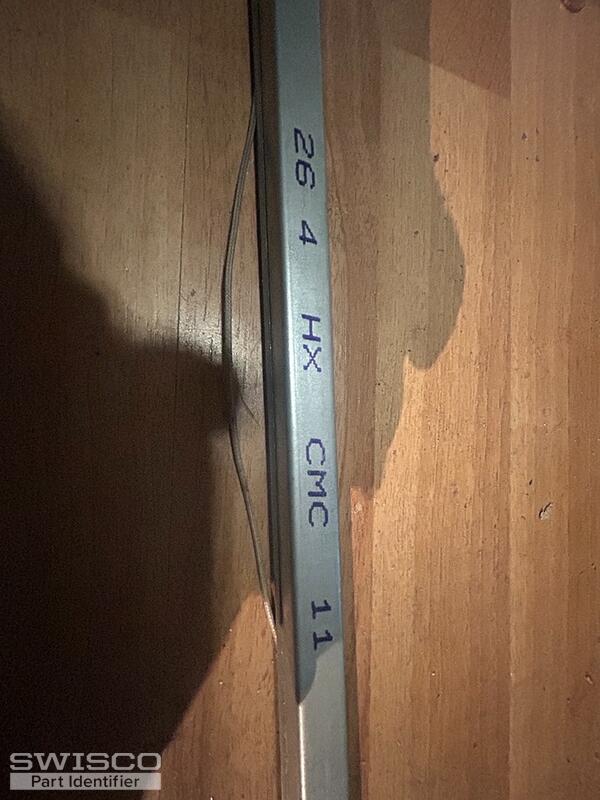

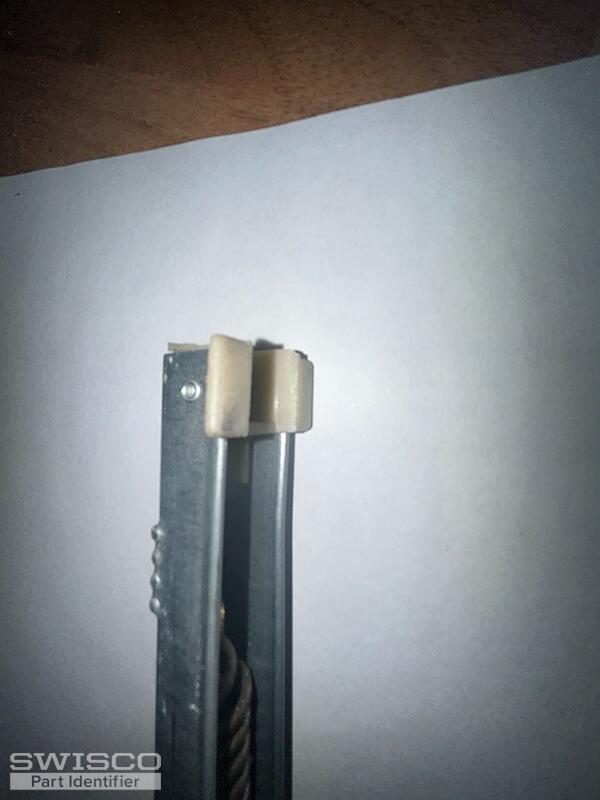

My clients window balances have the markings "26 4 HX CMC 11" on them. Is this enough information to determine the weight requirements and the proper end pieces? I've enclosed a few photos, but I'm pretty sure one of the end pieces is broken.

Sincerely,

Rich @ Las Vegas Handyman Services

4 user uploaded images

Handy Person from Las Vegas

Jan 19, 2024 11:48 am

Hi There,

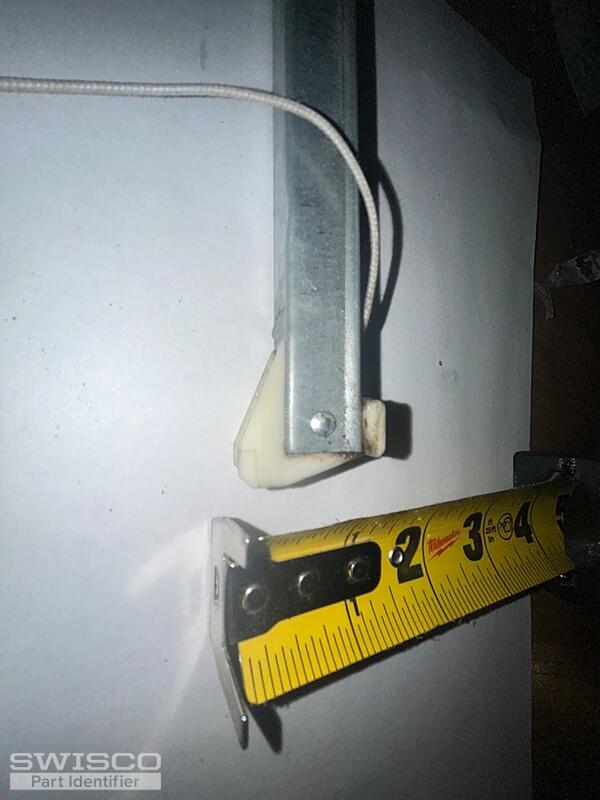

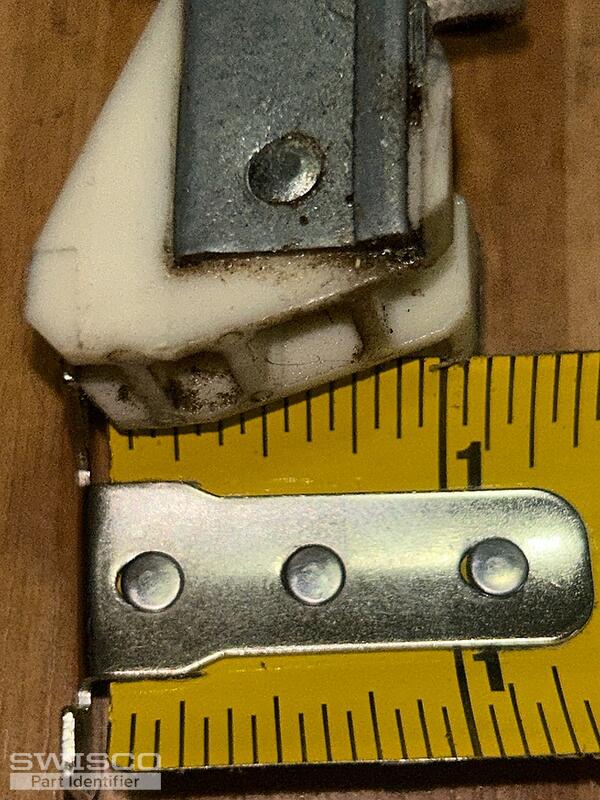

I just want to add this photo because it's a tough call for me to tell if this is the 1" or the 1 3/32"

Please advise,

~Rich @ Las Vegas Handyman Services

1 user uploaded image

Paul from SWISCO

Jan 19, 2024 10:01 pm

Hello there. To my eye that looks like a 1-3/32" shoe (the 15-004). If the top fitting resembles the 19-005, then you'd need the S385-27 with a stamp option of 2640. If the top fitting looks different, or you're unsure, please send us a photo and we'd be happy to confirm.
