Home Owner from Sarasota, Florida

Mar 7, 2025 2:54 pm

Hello,

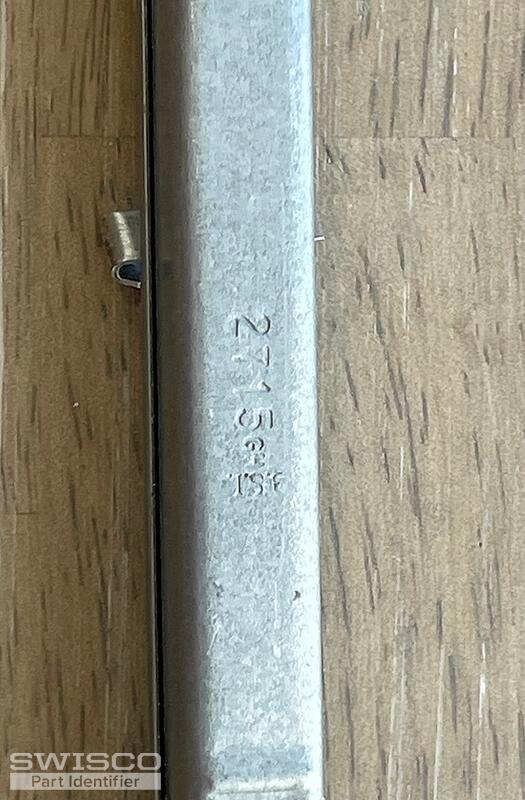

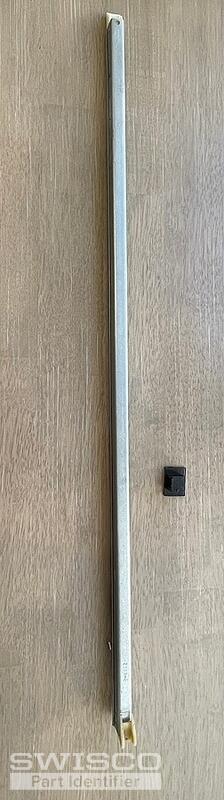

I need to replace this channel balance shown in the pics, I measured the length is 28 inches (only the metal part), and the number on the track is 2715.
The pulley attachment at the end is broken.
The black cap is also broken and I need to replace it, see pics, and see also a pic of the one on the other end of the window, it has two screws.
Can you tell me which are the replacement parts I need to buy? I have used your service before, and it is great!!! Thanks very much,
Chris

5 user uploaded images

8 Replies

Jasmine from SWISCO

Mar 7, 2025 4:17 pm

Hi Chris,

Thanks for reaching out to us, again! I am confident we can provide you with a replacement recommendation for your balances and for the top sash guides. Although, I'll need a bit more information to confirm the correct replacements.

In regard to the balances, your 2715 stamp cannot be cross-referenced with ours. That said, I'll need to know the exact weight of your window sash to confirm the right replacement.

The part you are referring to as the window cap, is the top sash guide mentioned. I'll need to see a photo of an undamaged guide to confirm the correct replacement for it.

Please feel free to reach out with any other questions you might have.

Home Owner from Sarasota, Florida

Mar 8, 2025 11:32 am

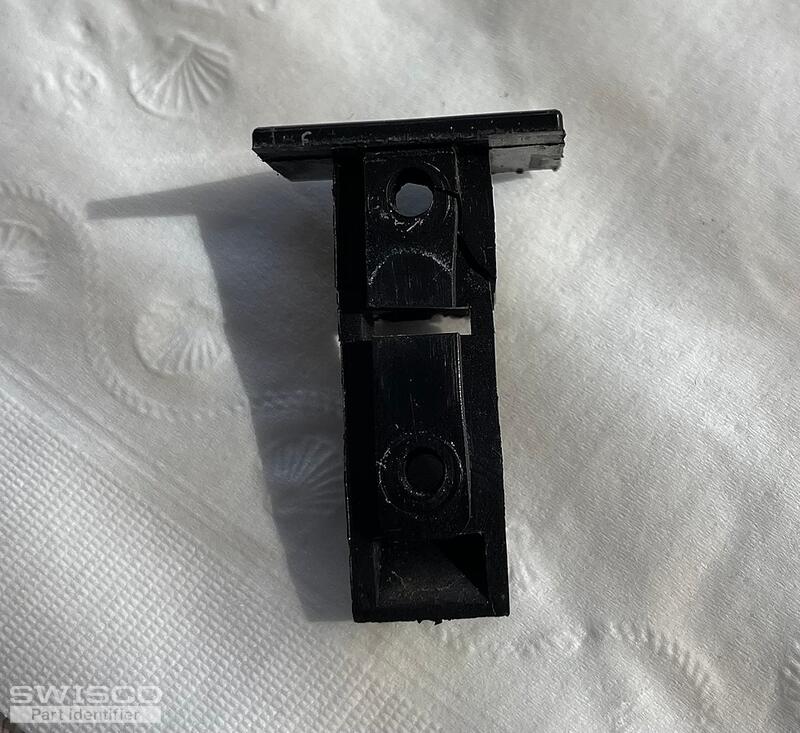

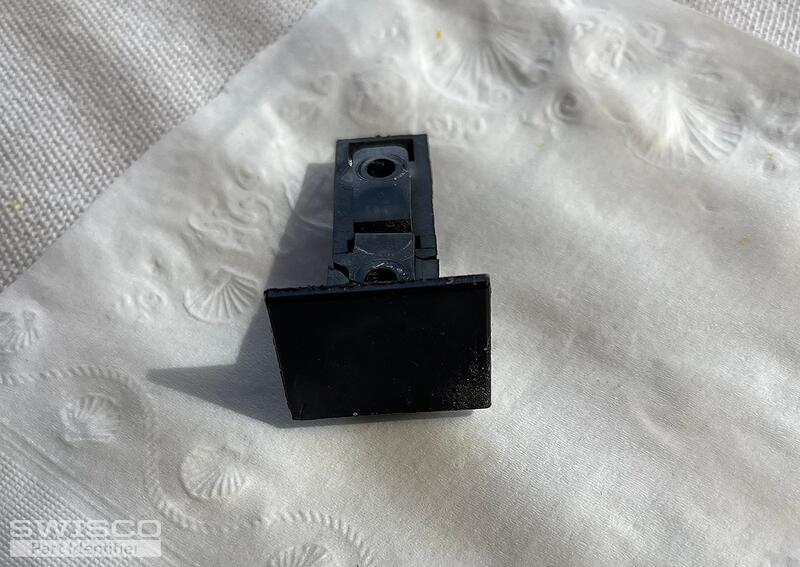

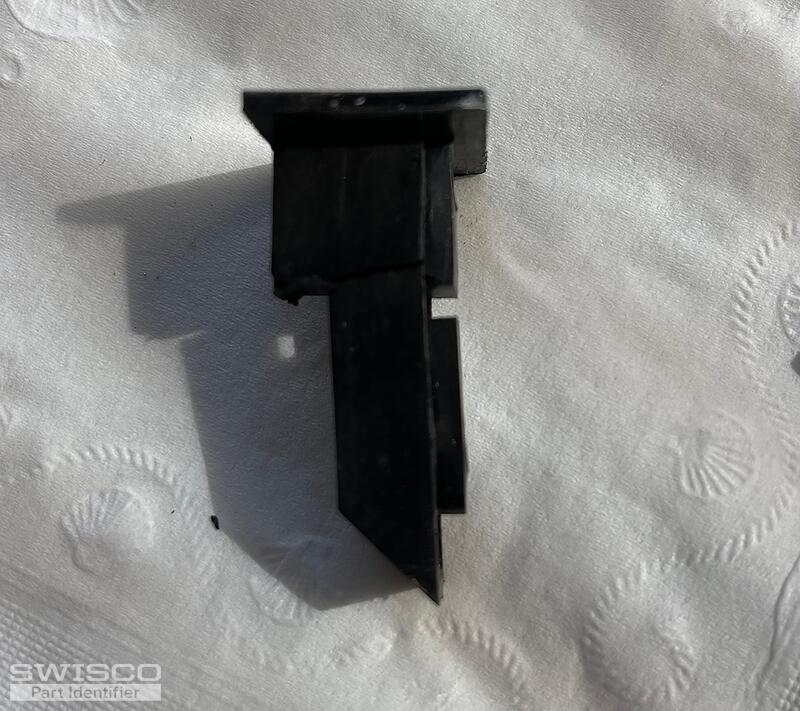

Thanks Jasmine for your response! I attached three pics of the top sash guide from different angles, would that be enough to identify the right one? Also, I weighed the window sash, it is 20.9 pounds. Please let me know if with all the info you can now tell me which are the right replacement parts.
Thanks again!
Chris

3 user uploaded images

Jasmine from SWISCO

Mar 10, 2025 10:48 am

Thanks for confirming and for the additional photos. Your window balances remind me of either the S351-28 or the S390-28. You'll need to confirm your shoe's depth to determine which series you need for the replacements.

You can select the 2740 stamp option for your 20.9lb sash.

Comparison of the S351 and S390 balance shoes.

In regard to the top sash guide, we do not have a direct replacement for it at the moment. I'll need to get this sent over to our vendor manager and senior experts to determine if there is a suitable replacement solution for it.

Please feel free to reach out with any other questions you might have in the meantime.

Home Owner from Sarasota, Florida

Mar 10, 2025 4:39 pm

Thanks, I measured the balance show depth and it is 1 1/8 in.
Please let me know once you find out which is the correct replacement for the top sash guide.
Once I hear from you I will place the order for both items (including the balance).
Thanks again

Jasmine from SWISCO

Mar 11, 2025 8:42 am

Okay, great! We were able to find the exact replacement match for this top sash guide but it will not be available on the website for a few weeks.

I'll be sure to reach out to you once they are available so that you can place the order.

Please don't hesitate to reach out with any other questions you might have.

Home Owner from Sarasota, Florida

Mar 11, 2025 3:34 pm

Thanks Jasmine for your assistance, I look forward to hearing from you with the information about the top sash guide.

Jasmine from SWISCO

Mar 21, 2025 1:15 pm

Hello,

Thank your for your patience! We've finally received this top sash guide. They will be the 18-208 5/8" Top Sash Guide. They are now available on the website for purchase.

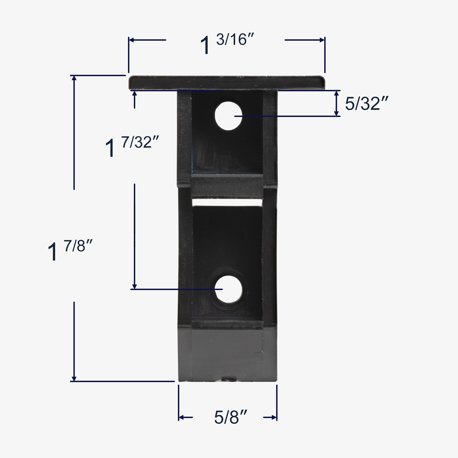

Dimensions for 18-208
