Channel Balance with sash cord snapped

Quick Learner from everett WA

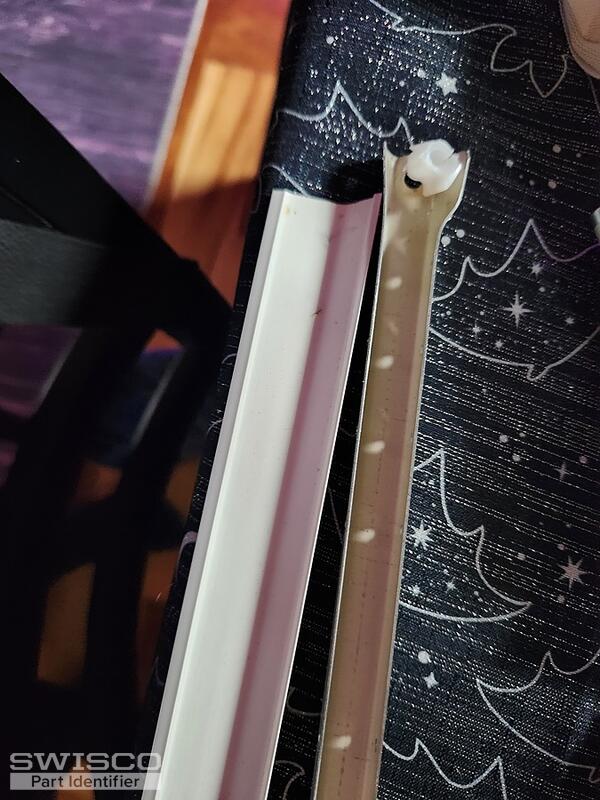

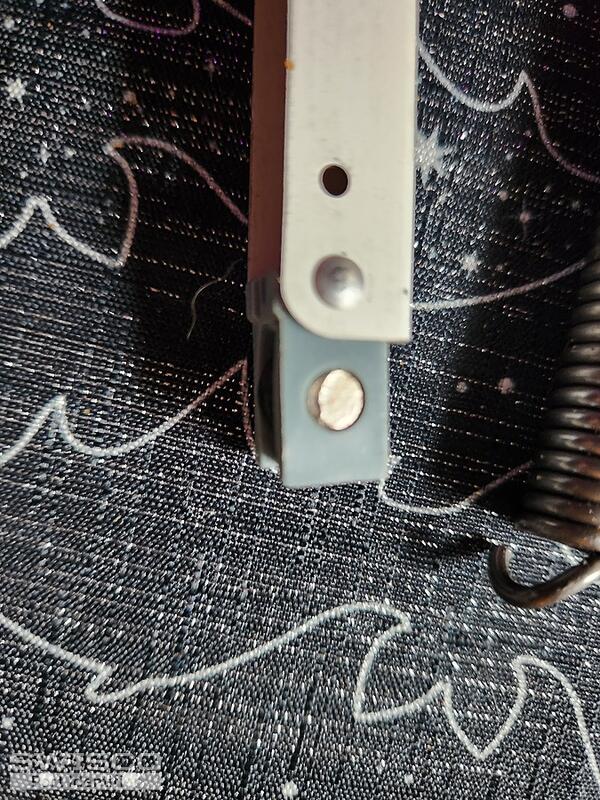

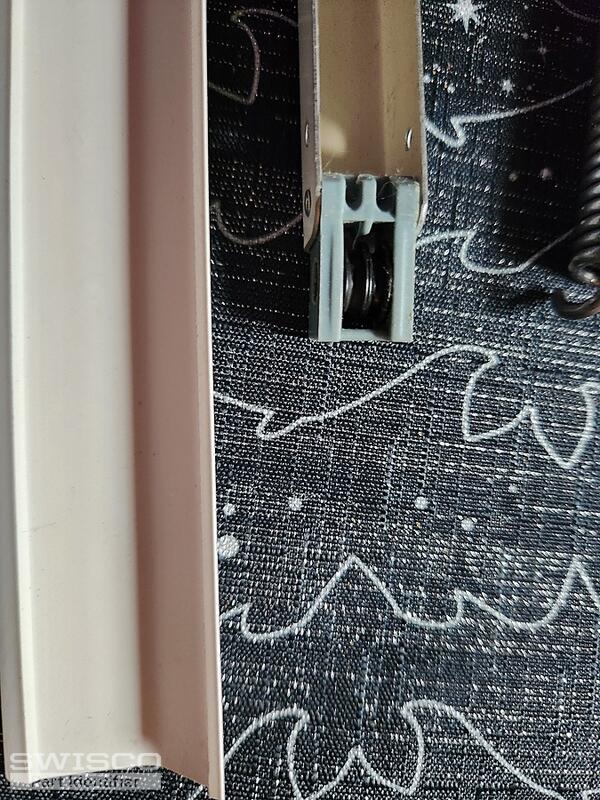

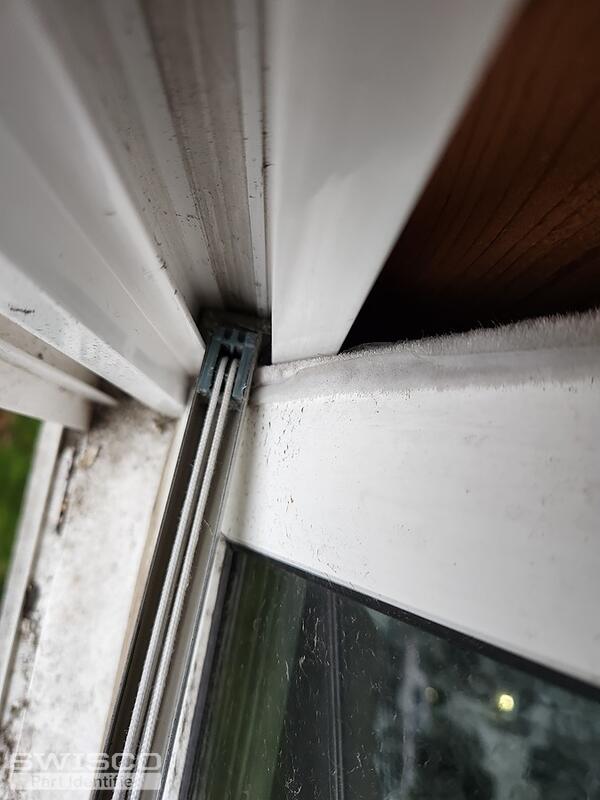

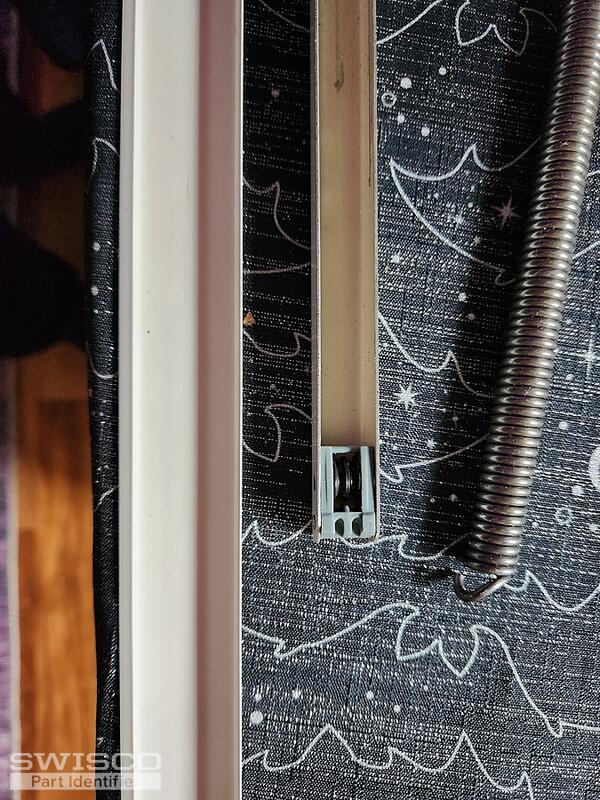

The channel balance screw/plastic insert and the screw that goes through both to attach to the window bent/broke. It is a 28 inch channel balance that screws into the window pane. I have additional pics but it only allowed 5 to be uploaded.
5 user uploaded images
7 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Thank you for reaching out to us. We're happy to look into this. Can you show us a photo of the clip attached at the end of the pulley cord? The balance shown here looks like it may be too damaged so you'll have to use an undamaged version as a reference.

Quick Learner from everett WA

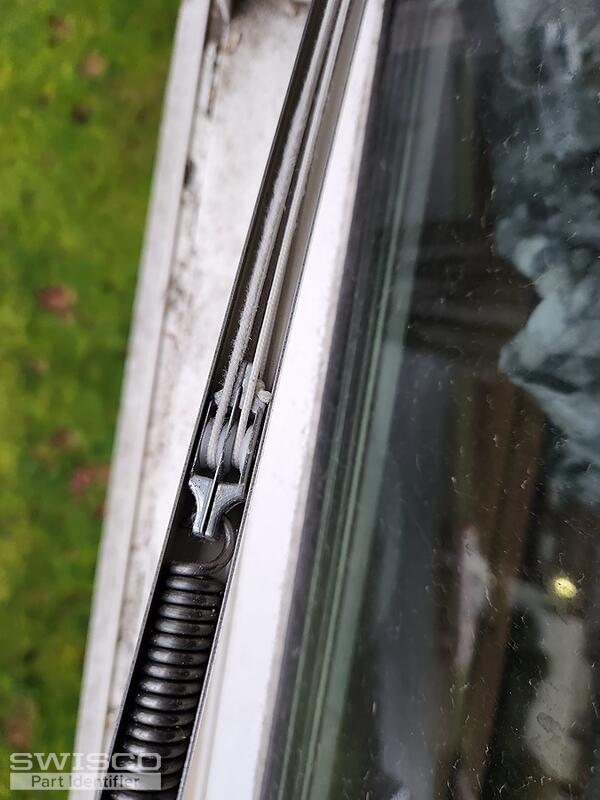

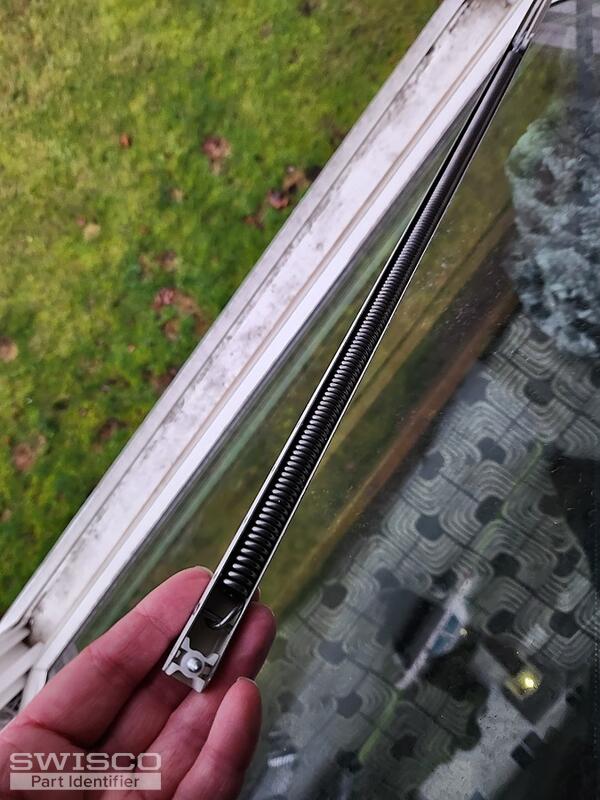

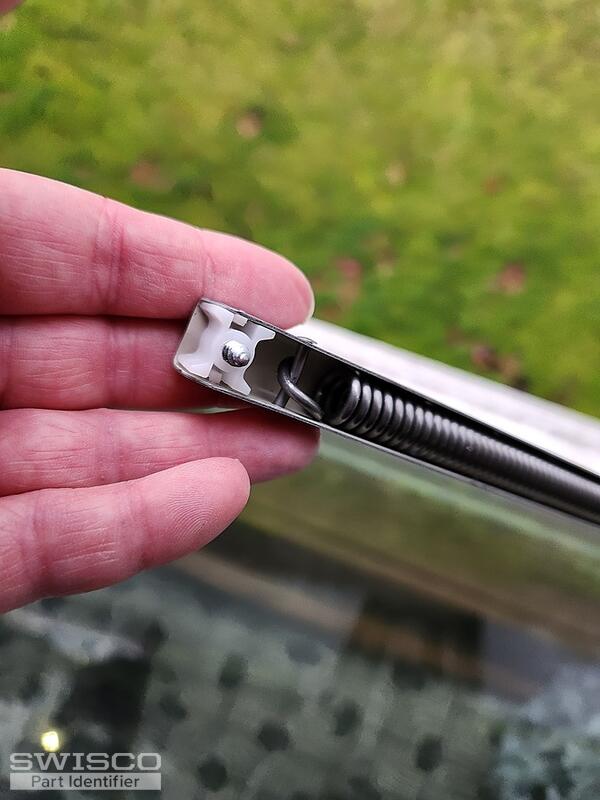

Please see attached. I can only upload 5 files. Let me know if you need additional.
5 user uploaded images
Quick Learner from everett WA

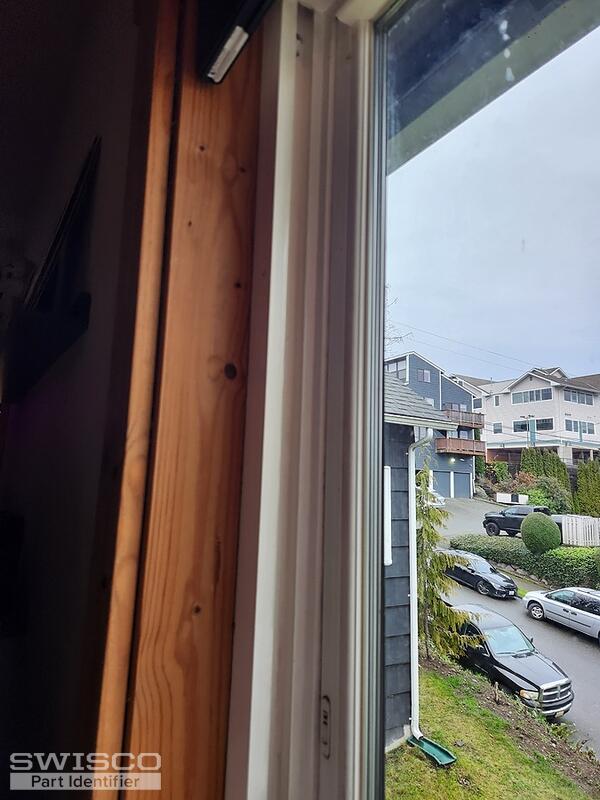

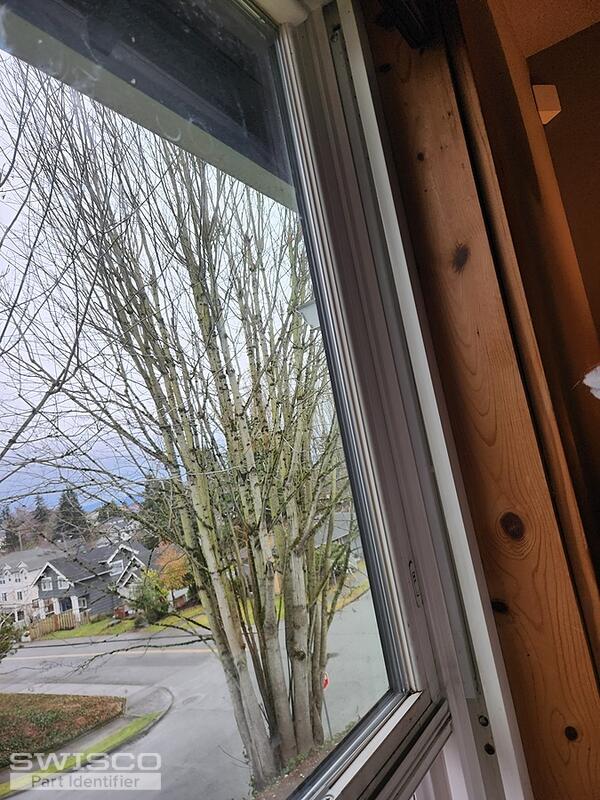

Additional photos
5 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thanks for getting back to us. It looks like your balance installs with a screw at the top like the S770-28 (28F). With that being said, you'll need to confirm that yours uses the same type of terminal clip at the end of the pulley to attach to the pivot shoe. Take a look and see what you think.

Close up view of the Series 770 balance top.
Close up view of the Series 770 balance top.

Close up view of the Series 770 balance bottom.
Close up view of the Series 770 balance bottom.

Quick Learner from everett WA
That is the correct end. I will order two and replace both sides. Thank you so much!
Emily
Emily from SWISCO
SWISCO
Expert

Great! Just let us know if you need anything else.
