Channel Balance and End Pieces

A quick learner says:

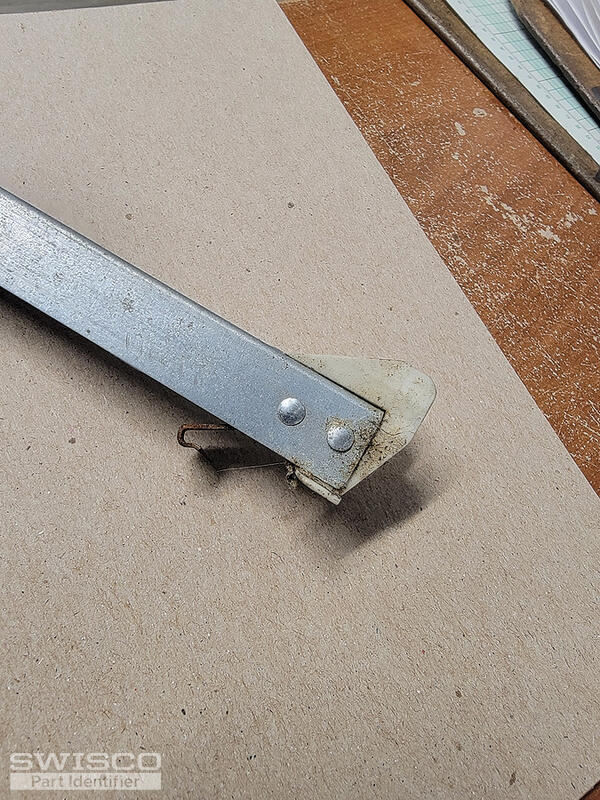

27" Metal Channel

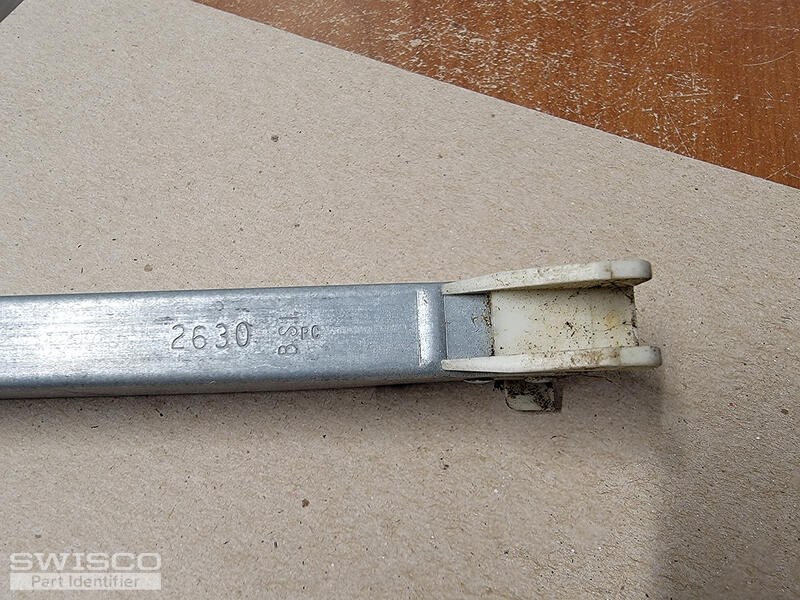

Stamp: 2630
Thumbnail of the uploaded file named Jones1.jpg
Thumbnail of the uploaded file named Jones4.jpg
Thumbnail of the uploaded file named Jones.jpg
Thumbnail of the uploaded file named Jones2.jpg
Thumbnail of the uploaded file named Jones3.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

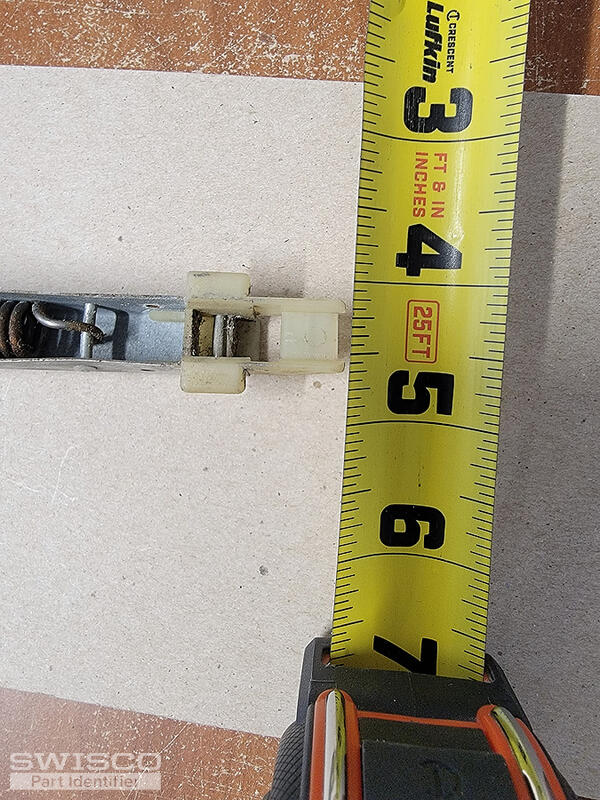

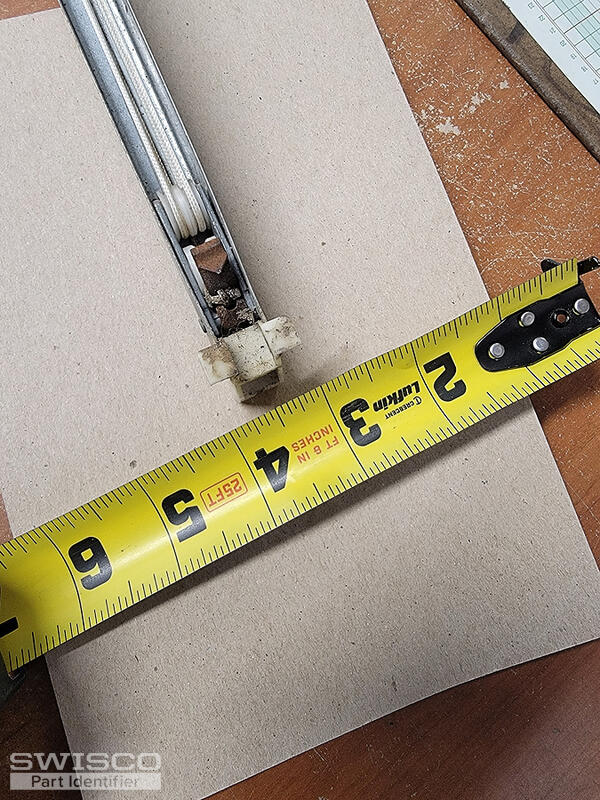

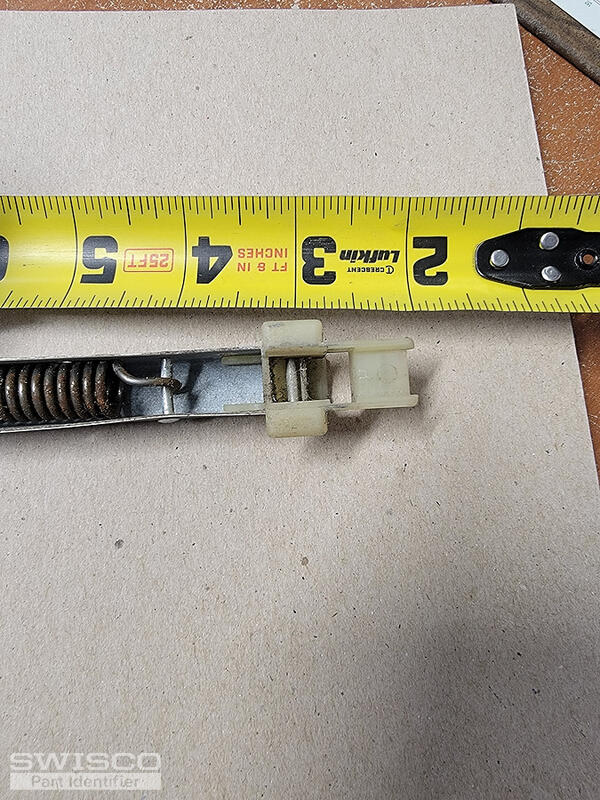

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will also need a 2630 stamp option for these balances.

If you have any questions just let us know!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
