Channel Balance and Sash top piece

Question

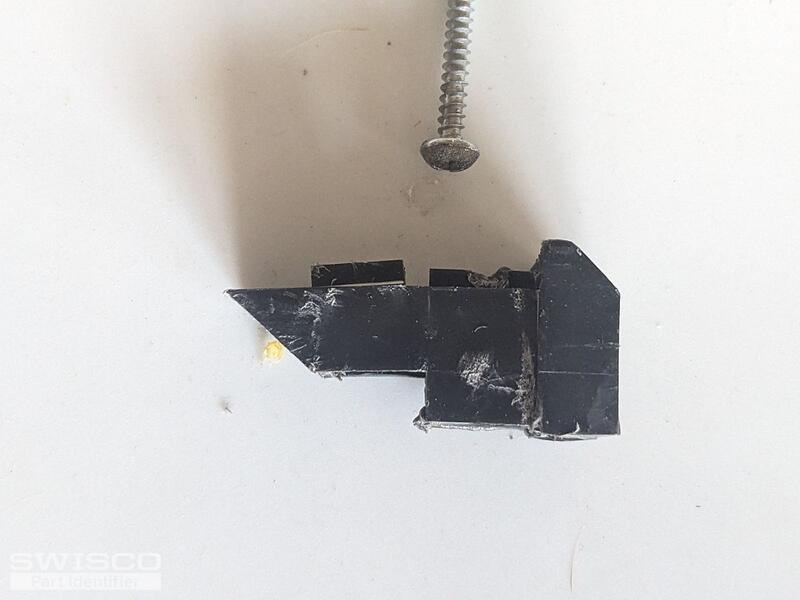

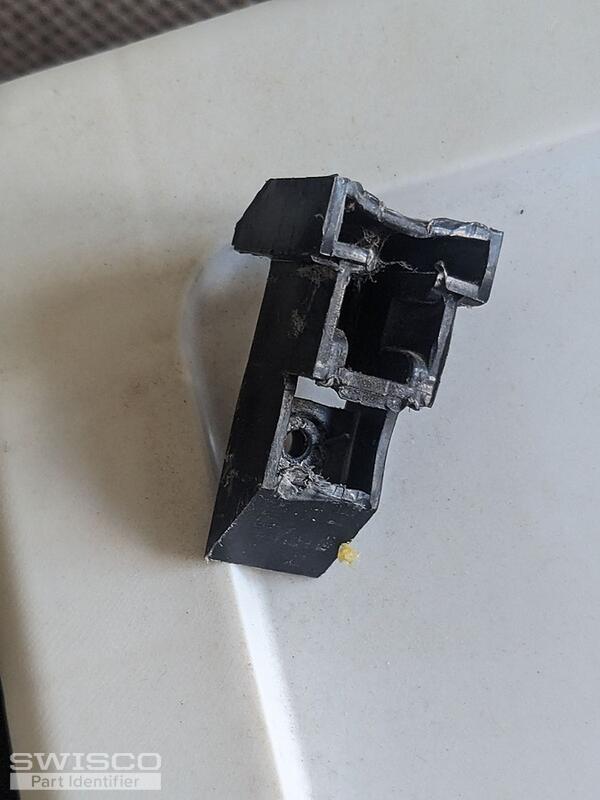

I am in need of at least 1 new Channel Balance - which is 18 inches, and at least 1 new sash top. Pictures are included. Thank You for your help

Jasmine · Accepted Answer

Your channel balance can be replaced with either the S351-18 with a 1" shoe or the S390-18 with a 1-1/8" shoe. You'll need to confirm the measurement for the depth of your shoe to confirm which of these is the correct series. Take a look at the diagram below for reference.

You can select the 1740 stamp option.

Comparison of the S351 and S390 balance shoes.

Your top sash guide can be replaced with either the 18-032 Top Sash Guide or the 18-110 Top Sash Guide. Carefully look over each of their dimensions to determine which of these is the right replacement.

Front view of 18-032

Alternate view of 18-110
