Channel Balance and sliders?

Home Owner from Mesa, AZ

Jan 17, 2019 6:48 pm

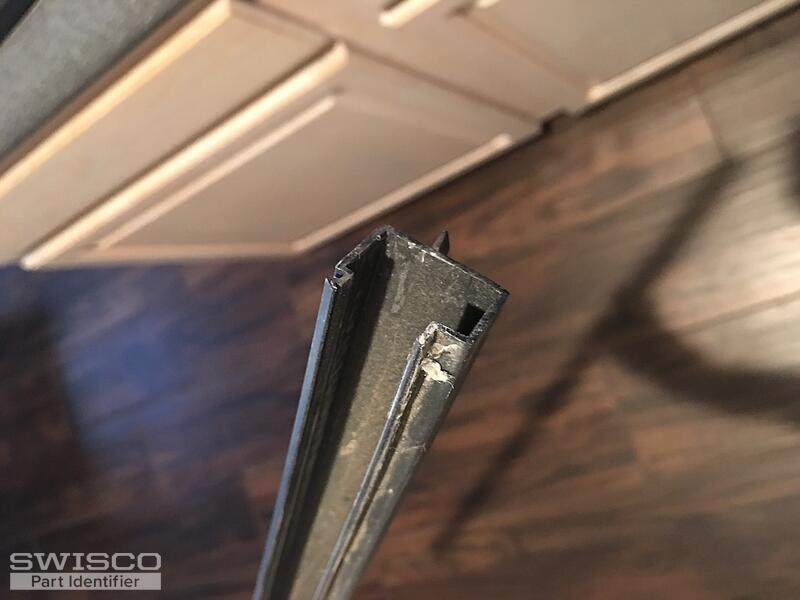

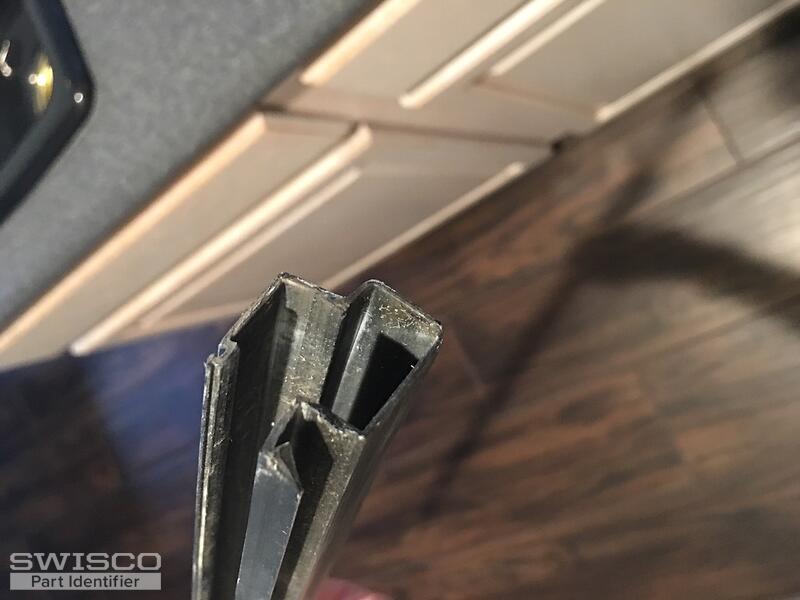

This is a channel balance from an Alanco Window.
The balance is 28" and the plastic slider is 29 1/2".
The channel balance is stamped 27 4 DI CALDWELL, part is rubbed off so not sure if that's correct.

5 user uploaded images

2 Replies

Casey from SWISCO

Jan 18, 2019 10:23 am

Hi, it looks like your balance attachments are wingless, so you can use the S390-28 as your replacement. The spring weight for (27 4) will be (2740) for a sash weighing between 19-26 lbs. Please compare. Unfortunately, we don't carry the guides you show in the last two panels.
