I require 3 different balancer types so due to the restriction of five photo uploads I will send three separate messages numbered #1, #2, and #3.
The windows are 21 years old and while only a half dozen of the balancers have completely failed, the others are very stiff so my plan would be to replace all 16 channel balancers at one time to avoid future issues.
I look forward to your help!

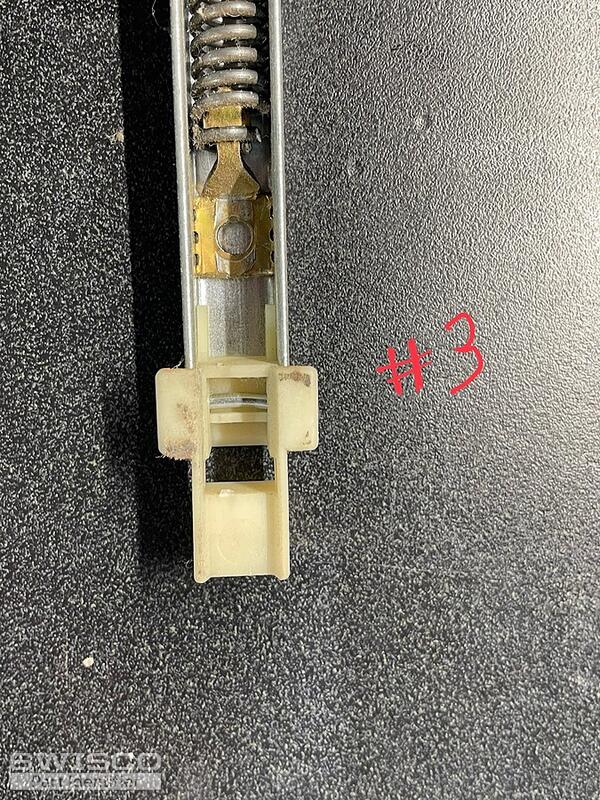

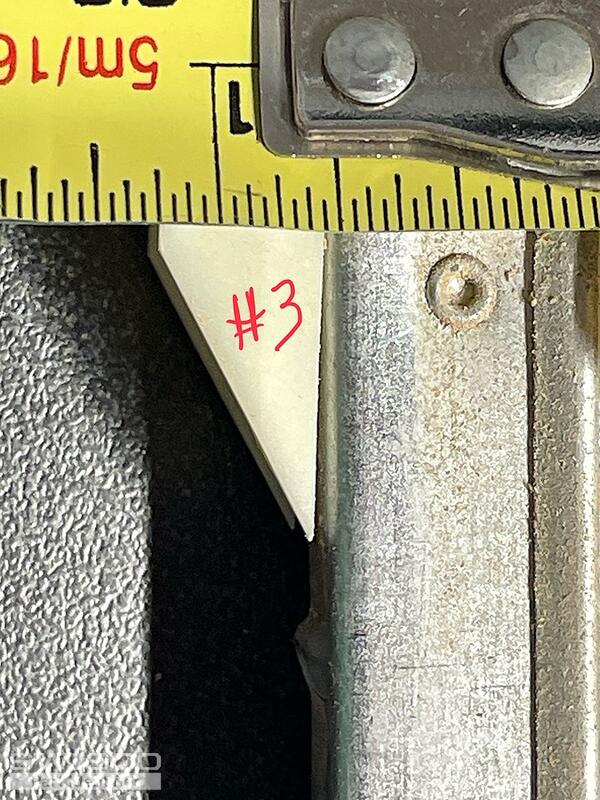

Channel Balancer #3
Handy Person from Chandler, Az
Mar 10, 2024 6:48 pm
5 user uploaded images
2 Replies
Bob from SWISCO
Mar 10, 2024 7:17 pm
Thanks for posting! This looks like either an S380-33 or S385-33 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the measurement from heel to toe. See the diagram below for reference. Compare both with your old hardware to see what matches best. In either case, for a stamp option choose 3240.
Comparison of the S380 and S385 balance shoes.
