Channel Balancer Needed : SWISCO.com

Home Owner from Denver, CO

Oct 20, 2024 6:21 pm

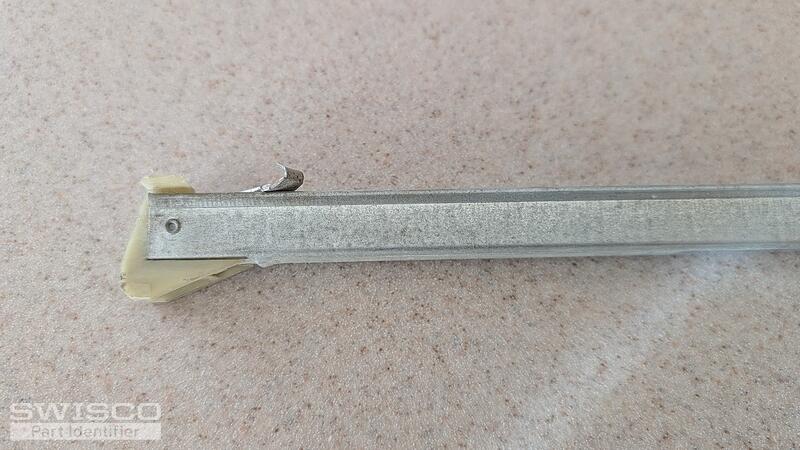

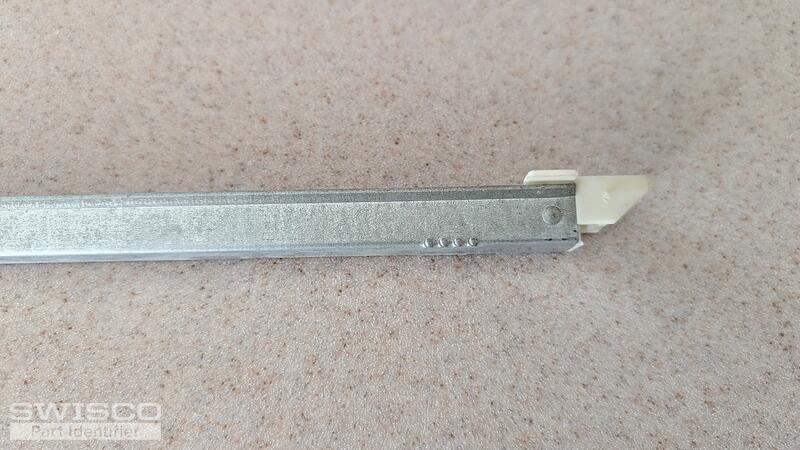

Hello - I have attached photos as instructed on the channel balancer needed. It measures 27" long and the stamp marking is 26 4 IU CMC 2. I need 2 ea. of these. Can you please advise which of your products will work for me?

Thank you,

Andre'

5 user uploaded images

7 Replies

Home Owner from Denver, CO

Oct 20, 2024 6:23 pm

The width measures 9/16" (1/2").

Lauren from SWISCO

Oct 23, 2024 8:51 am

Hello, thank you for posting,

We can assist with replacement balances, but to confirm the series you have, we will need to see an additional picture of the inside of the metal channel where we can view the connection point between the spring and pulley. From there we can move forward with identification. Thank you!

Home Owner from Denver, CO

Oct 23, 2024 11:17 am

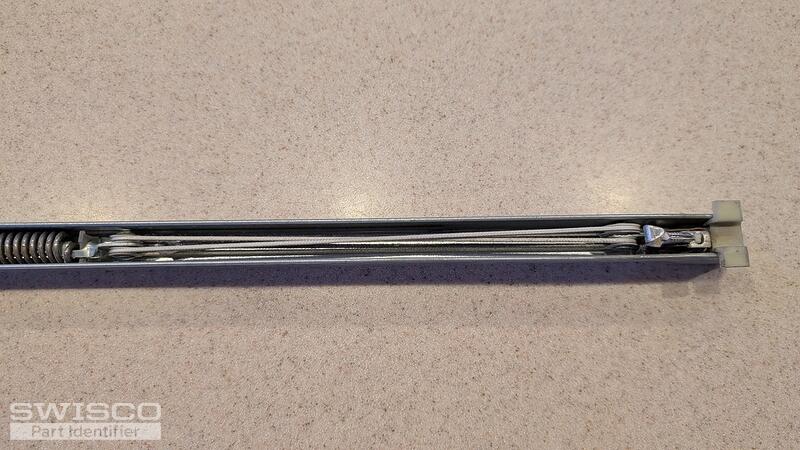

Hello - I've attached the picture you've requested. Thank you for your help!

1 user uploaded image

Lauren from SWISCO

Oct 23, 2024 11:42 am

Thank you for the additional picture,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You will need a 27" balance with a 2640 stamp option. Please review and let us know if you have any additional questions!

Comparison of the S380 and S385 balance shoes.

Home Owner from Denver, CO

Oct 23, 2024 12:21 pm

Very helpful - replacements have been ordered. Thank you!

Lauren from SWISCO

Oct 23, 2024 12:32 pm

No problem! Please let us know if you have any future hardware questions.
