Channel Balancer milgard window

A quick learner from Hawthorne CA says:

September 11, 2023

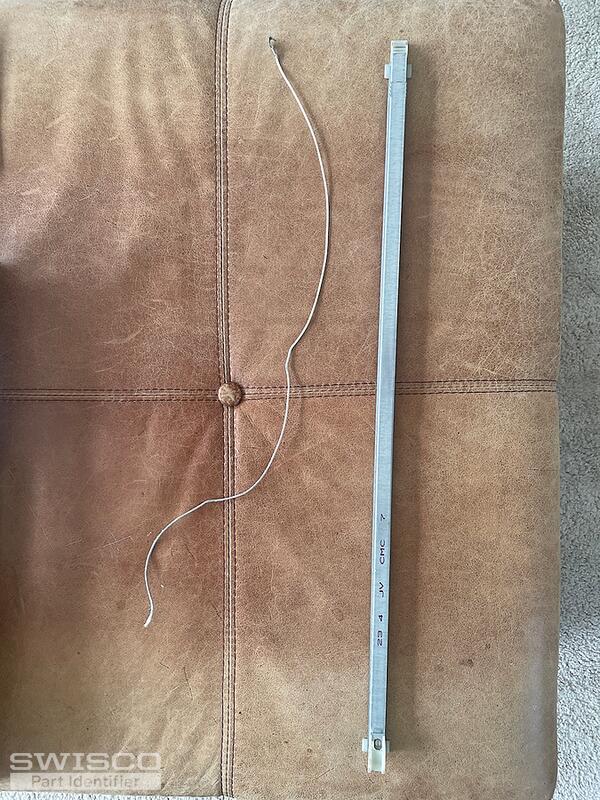

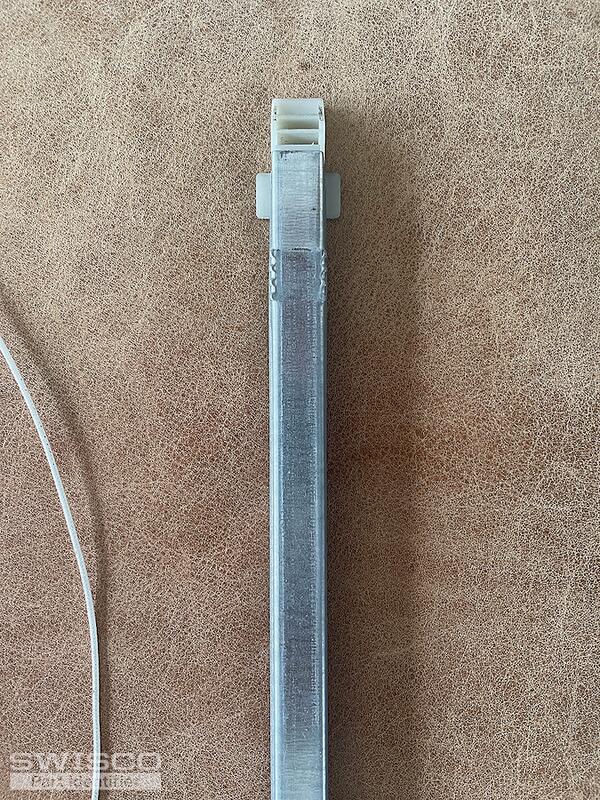

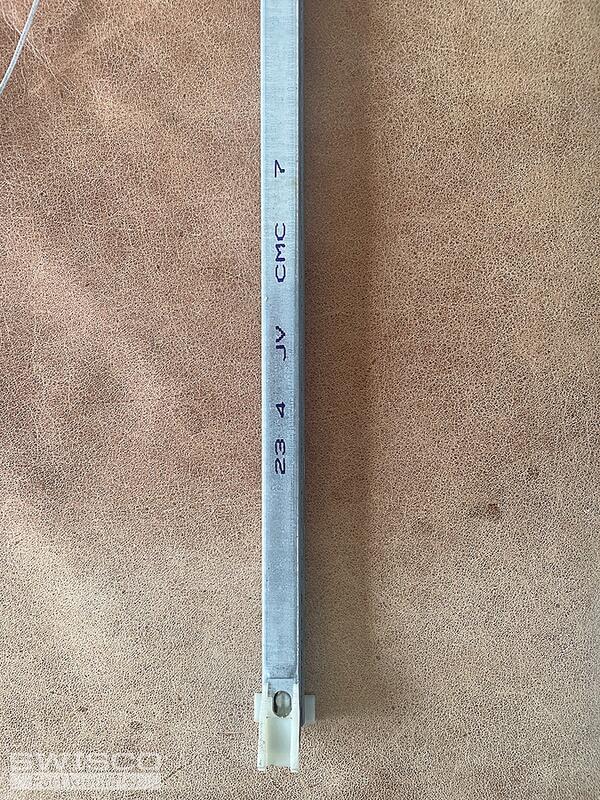

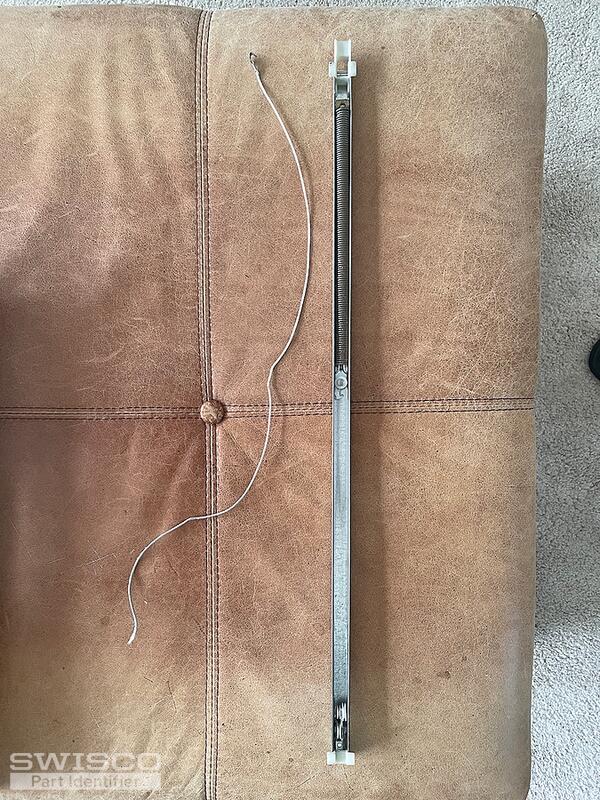

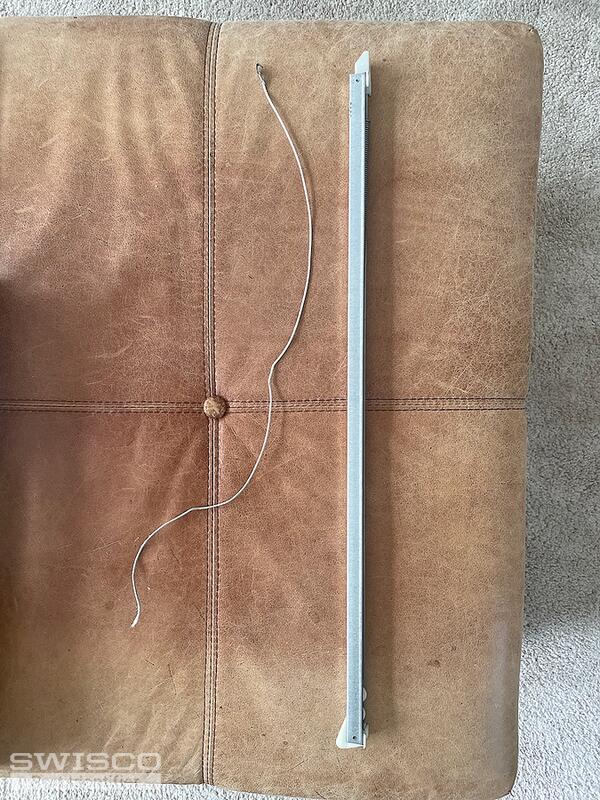

I have a Milgard channel balancer that the rope snapped. The numbers on the balancer are 23 4 JV CMC 7. Can someone advise on which replacement channel balancer I need?

Thanks in advance!

Thumbnail of the uploaded file named IMG_6080.png

Thumbnail of the uploaded file named IMG_6079.png

Thumbnail of the uploaded file named IMG_6078.png

Thumbnail of the uploaded file named IMG_6077.png

Thumbnail of the uploaded file named IMG_6076.png

Casey from SWISCO responded:

September 12, 2023

Hello,

With this combination of attachments, you could have either the S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2340 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.

24" Series 380 Channel Balance

S380-24

$10.55

24" Series 385 Channel Balance

S385-24

$10.55
