Channel Balances

Question

Hi--

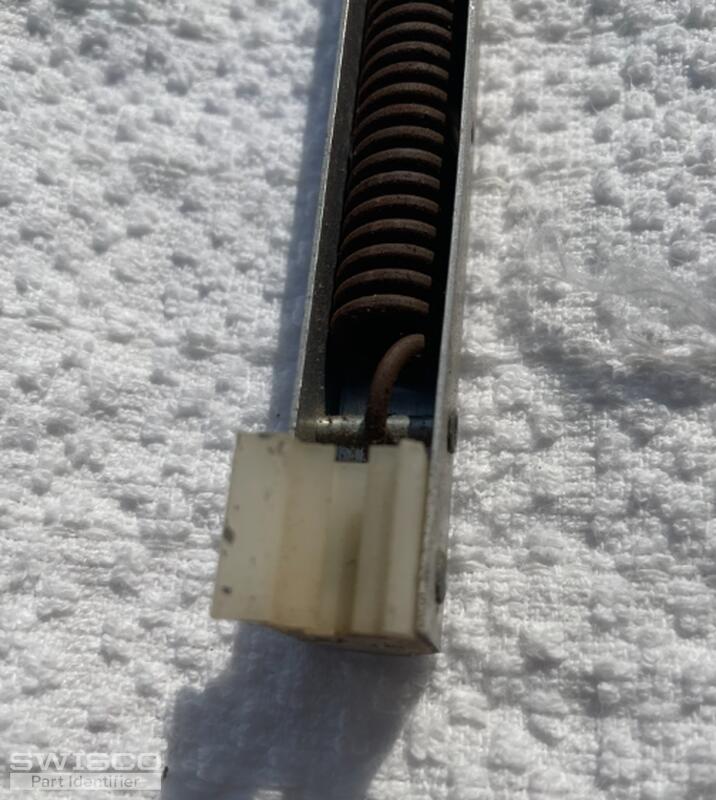

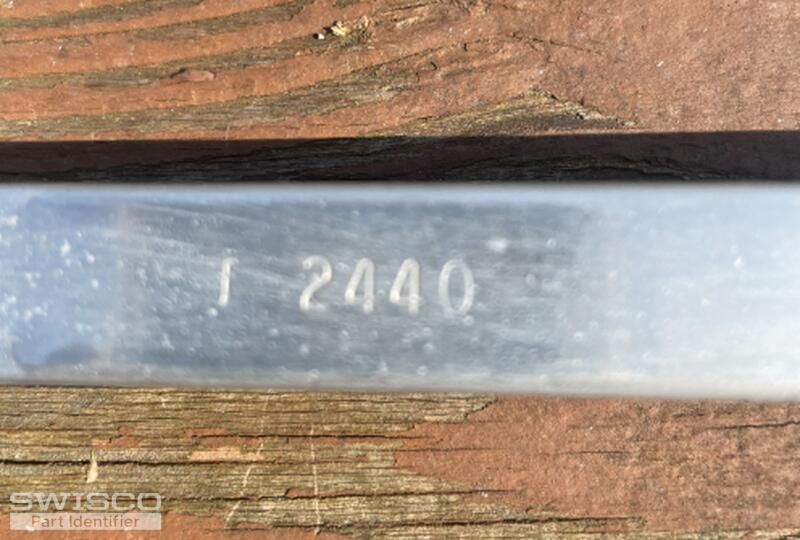

I am attached a folder with five photos of a channel balance from my window. The one with the numbers is very hard to read but there is a lower-case f and 2440 on it which I've been told has to do with the size of the window. There is one of one end and three of the other end.

Please let me know if you have any questions. I'll need two of those and will call tomorrow to place that order.

Thank you!

What is the length measurement of only the metal portion of your balance? 25 inches.

Is this for a Non-Tilt Window or Tilt Window? Non-tilt

What is the Stamp on your balance? f 2440 (photo coming)

What is the Width of your balance? 1/2 inch

Does the top fitting have Tabs? yes. One is wider

Does the bottom fitting have Tabs? es and they are both the same width and height

Emily · Accepted Answer

Hello there!

Thank you for reaching out to us. I recognize what you have here. It's not a configuration we stock so this will need to be a custom order. To sum it up for you, we will use a 25" long metal channel with the 19-038 top, 15-193 bottom, and 2440 stamp.

I'm going to email you a purchase link and price quote for (2) of these balances that you can use to place an order on our website. If you have any questions just let me know!
