Channel Balances

Landlord from St. Thomas, US Virgin Islands

Feb 14, 2018 10:02 am

Hello I am in search of balances. Please see pictures above. There are no markings nor numbers anywhere.

Channel length is 28"
Channel width is 5/8" frp, the bottom, 1/2" from bottom
Channel depth is 9/16"

I cannot see an examples with the same plastic fittings.

Thanks for your help.
Christine

4 Replies

Casey from SWISCO

Feb 14, 2018 2:25 pm

Hello there, Christine. I am afraid your photos failed to upload properly. Would you be able to resubmit them to us again?

Landlord from St. Thomas, VI

Feb 15, 2018 3:49 pm

I need help identifying the right window channel balances. Here are the pictures I tried to send earlier.

We need 26 of them and sent to the US Virgin Islands if you have them.

Let me know if I need to resend the dimensions.

Thank you.

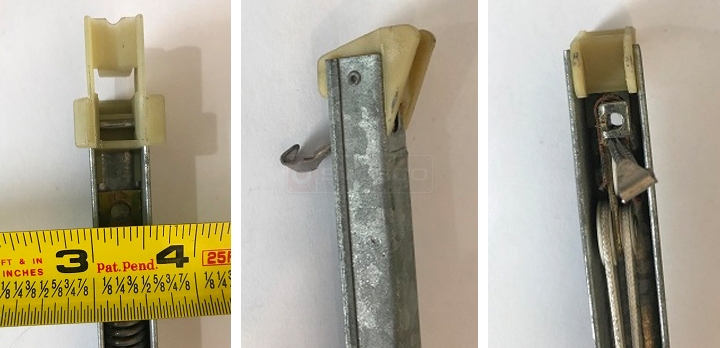

User submitted photos of a window balance.

Casey from SWISCO

Feb 19, 2018 11:19 am

Thanks for your photos, Christine. It appears you may be looking for our S395-28 channel balance with a 19-005 top and 15-001 bottom balance shoe. It's very important that you compare the measurements of your balance to ours especially when it comes to the nylon attachments. Get back to us and let us know if these are the correct balances for you. Also, if there should happen to be any stampings/markings on the metal portion of the balance, please make sure to provide that information as well.
