Non tilt 1/2" Channel Balances

Quick Learner

Nov 13, 2018 12:48 pm

Trying to determine if you carry the replacement parts for these channel balances. Our windows are non-tilt & the balances are 1/2"

Thank you for any assistance!

Margaret

2 user uploaded images

7 Replies

Casey from SWISCO

Nov 16, 2018 10:35 am

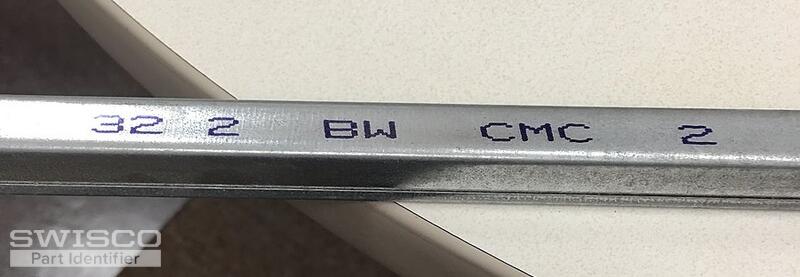

Hi Margaret, thanks for reaching out to SWISCO. The stamps you provided are a good start, but we'll need to see the entire balance removed from the window to be able to determine the replacement option. Specifically, the top and bottom plastic attachments. Thanks!

Quick Learner from Den

Feb 16, 2019 6:21 pm

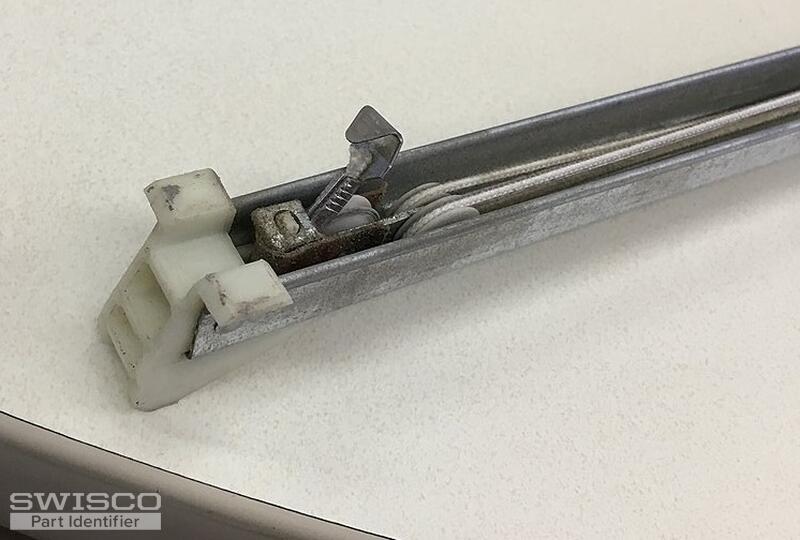

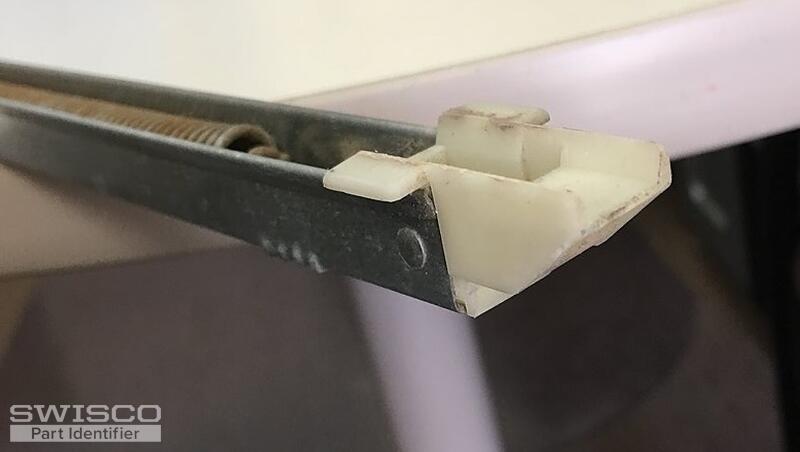

Here is the one of the channel balances needed for our Den window. I'll send another for our Dining Room.

3 user uploaded images

Quick Learner from Dining Room

Feb 16, 2019 6:22 pm

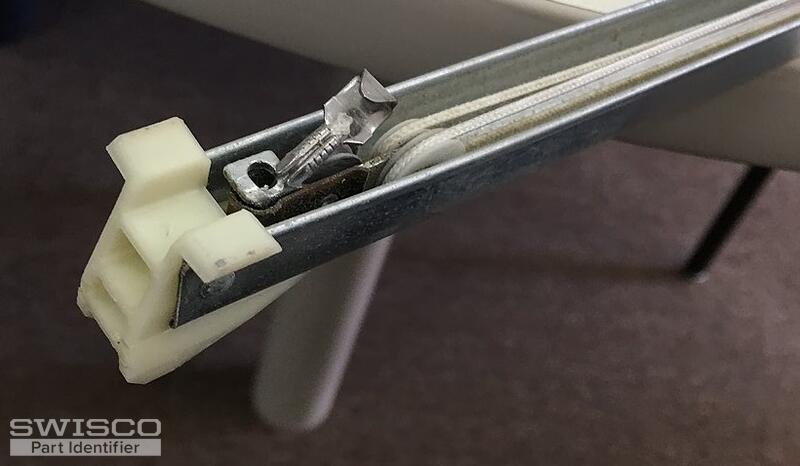

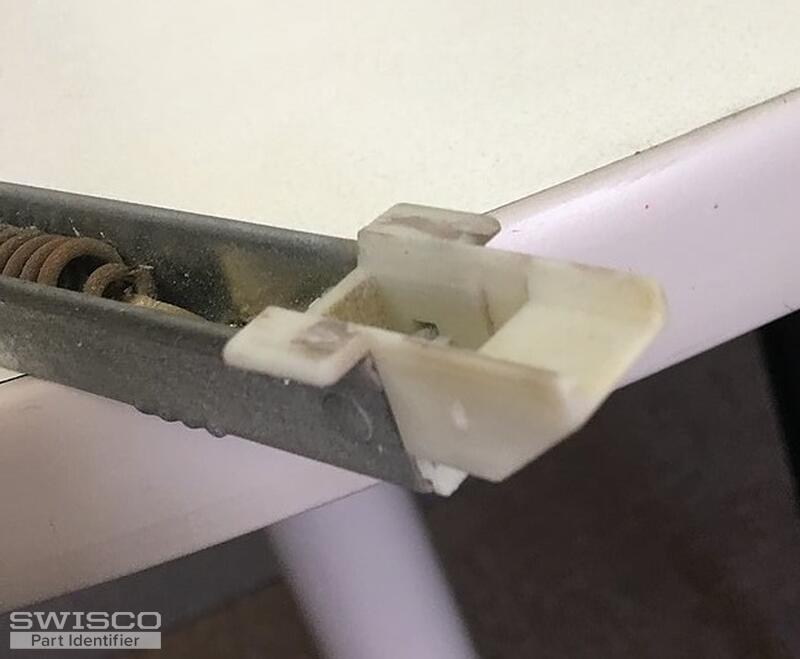

Here are the photos of the channel balance for our Dining Room

3 user uploaded images

Casey from SWISCO

Feb 18, 2019 2:09 pm

Perfect, thank you! These pics are exactly what we need. I would recommend our S385-27 with a 2630 stamp option for the Den, and then I'd recommend our S385-33 balance with a 3220 stamp option for the Dining room.

The Series 385 comes with a 19-005 top fitting and 15-004 bottom fitting. You may want to glance over our dimensions for these fittings juuuuust to be 100% sure.

Let me know if you have any questions!

Quick Learner from Dining Room

Feb 18, 2019 2:45 pm

Kathleen,

Thank you so much for the information and I have already placed a small order to see how these work for our windows.

I appreciate all the help, you have made it very easy!

Regards,
Margaret

Casey from SWISCO

Feb 18, 2019 3:00 pm

You are very welcome. Be sure to get back to us and let us know how everything worked out for you.
