Channel Balances

A handy person from Florida says:
March 25, 2022
I need to replace the balances in my windows. The only marking on the channel is the number 2830. The channel is 29" long. The house was built in the mid 1970's. Can you please help me to identify the correct part/number?

Thank you
Thumbnail of the uploaded file named 2830.jpg
Thumbnail of the uploaded file named channel Balance foot .jpg
Thumbnail of the uploaded file named channel Balance length.gif

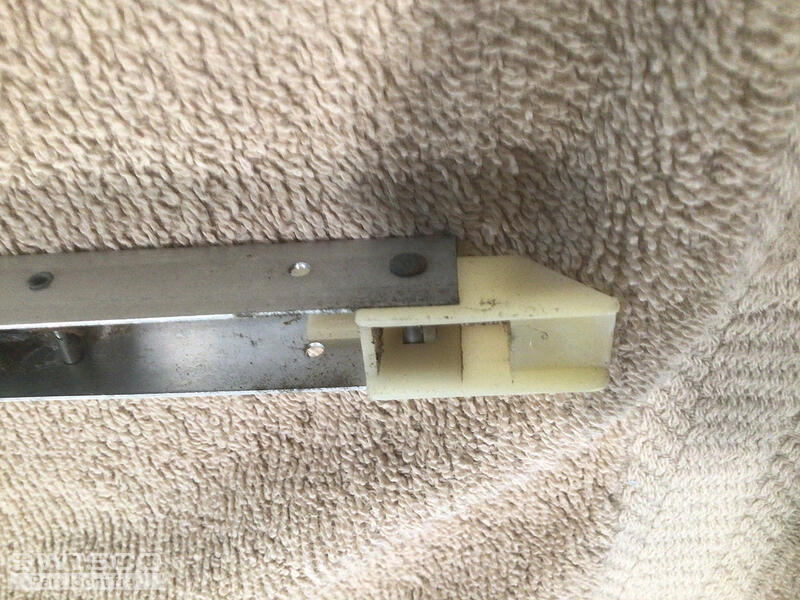

Thumbnail of the uploaded file named channel Balance top 2.jpg

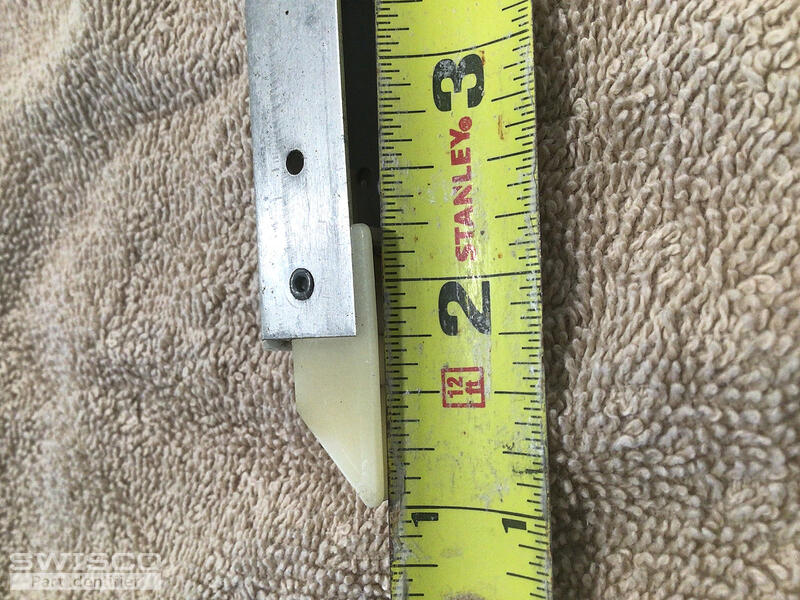

Thumbnail of the uploaded file named Channel Balance top.jpg
Profile picture of Casey
Casey from SWISCO responded:
March 25, 2022

Hello,

It looks like you have either our S351-29, with a 15-002 bottom attachment, or S390-29, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2830 spring strength option for your replacement balances. Thank you!


Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
29" Series 351 Channel Balance
29" Series 351 Channel Balance
S351-29
$11.10
29" Series 390 Channel Balance
29" Series 390 Channel Balance
S390-29
$11.10
