I need to replace several channel balances and wanted to make sure I order the correct ones. Any help would be appreciated!

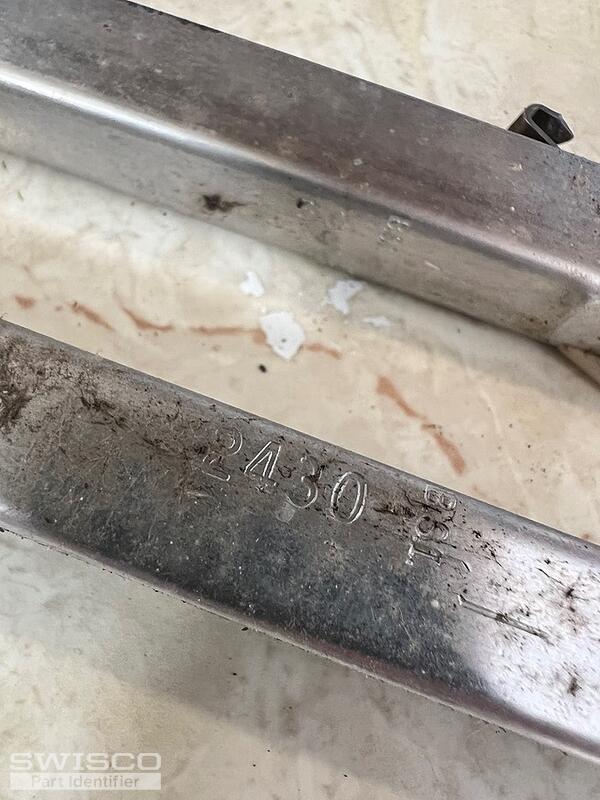

These are 25" long & are stamped 2430 and house was built in 1987
Channel Balances
Home Owner from Celina, TN
Aug 23, 2023 10:46 am
4 user uploaded images
2 Replies
Jasmine from SWISCO
Aug 23, 2023 3:17 pm
Hey there, thanks for reaching out!
It looks like you have either the S351-25 with a 1" shoe or the S390-25 with a 1-1/8" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. You'll need to select the 2430 stamp.
Comparison of the S351 and S390 balance shoes.
